Pan, Oil: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.

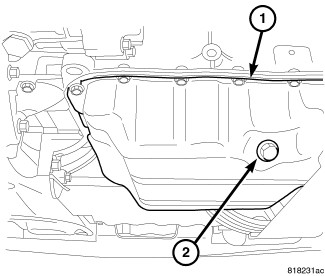

    GC0121328Courtesy of CHRYSLER GROUP, LLC
  2. Remove the oil drain plug (2) and drain the engine oil.
  3. Remove the serpentine belt splash shield.

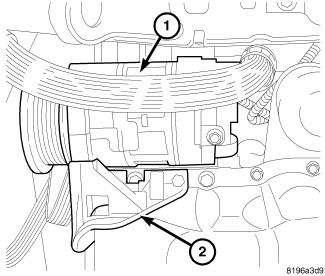

    GC0121329Courtesy of CHRYSLER GROUP, LLC
  4. Remove the lower A/C compressor mounting bolt (if equipped).
  5. Remove the A/C mounting bracket (2).

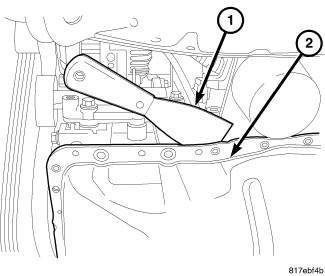

    GC0121330Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Do not use pry points in block to remove oil pan.

  6. Remove the oil pan bolts.
  7. Using a putty knife (1), loosen seal around the oil pan (2).
  8. Remove the oil pan (2).
