Tube, Sunroof Drain, Front: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the headliner. Refer to HEADLINER, REMOVAL .
- Cut the drain tube if the repair is above the instrument panel.

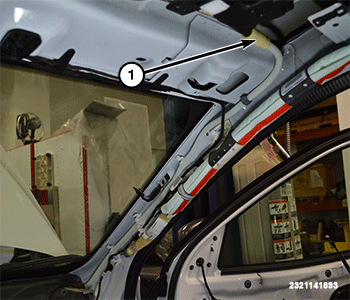

- Disconnect the front drain tube from the sunroof (1).
- Remove the front drain tube from all the retaining clips and remove.
- If necessary to completely remove the drain tube, first remove the instrument panel. Refer to PANEL, INSTRUMENT, REMOVAL .
- Remove the drain tube grommet out of the body panel.
