Panel, Instrument: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0159243Courtesy of CHRYSLER GROUP, LLC
NOTE:

Installation of the dash will require the use of three people. One on each end and one in the middle.

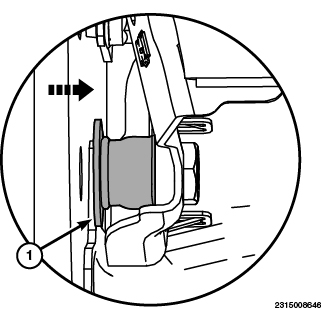

  1. Verify that the six mounting bushings (1) are fully retracted and rotate freely.
    GC0159560Courtesy of CHRYSLER GROUP, LLC
  2. Place the instrument panel into the vehicle
  3. Line up the marks on the tape made during removal to aid installation.
    GC0156269Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Use a 9 mm deep well socket with a full cut to install the dash carrier hinge pillar fasteners. The carrier bolts design will not allow a partial cut socket to access.

    GC0159349Courtesy of CHRYSLER GROUP, LLC

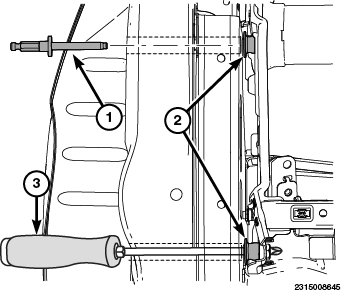

  4. Place round bladed tools (3) or equivalent, into the lower dash mounting holes located in the hinge pillar on both sides of the vehicle.
  5. Start the upper fastener (1) on both sides of the vehicle.
    GC0160143Courtesy of CHRYSLER GROUP, LLC

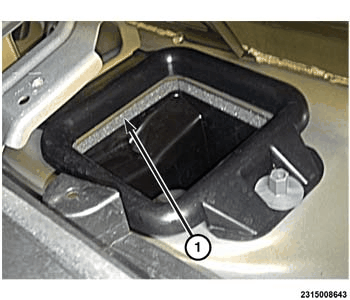

  6. Have the center person push the dash forward to load the HVAC housing seal (1) against the vehicle steel dash panel. Continue to load the seal until the four dash carrier hinge pillar fasteners and dash carrier to lower plenum fastener has been installed and torqued to specifications.
    GC0159699Courtesy of CHRYSLER GROUP, LLC

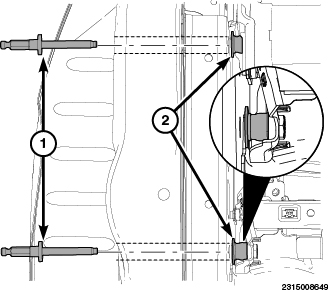

  7. Verify that proper alignment is still being maintained. Adjust as necessary.
  8. Install the upper dash carrier to hinge pillar fasteners (1) and tighten to 27 N.m (20 ft lbs).
  9. Remove the alignment punch or equivalent, from both sides.
    NOTE:

    It will be necessary to wait at least five minutes and recheck the torque on the side support bolts.

  10. Install the lower dash carrier hinge pillar fasteners (1) and tighten to 27 N.m (20 ft lbs).
    GC0159168Courtesy of CHRYSLER GROUP, LLC
  11. Using a pocket ruler (4) or equivalent, verify that the side to side instrument panel measurements (3) are the same as during removal.
  12. If necessary, loosen the instrument panel side fasteners and repeat steps 6 through 10 until correct instrument panel positioning is maintained.
    NOTE:

    If the instrument panel position is incorrect it may interfere with proper door operation.

    GC0159377Courtesy of CHRYSLER GROUP, LLC
  13. Install the instrument panel to plenum fasteners (1) and tighten to 20 N.m (15 ft lbs).
  14. The center assistant may now stop loading the dash forward.
  15. Install the access plug covers into the dash carrier to hinge pillar fastener holes.
  16. Install the wiper linkage. Refer to LINKAGE, WIPER ARM, INSTALLATION .
  17. Install the cowl panel cover. Refer to COVER, COWL PANEL, INSTALLATION .
  18. Install the wiper arms. Refer to ARM, WIPER, INSTALLATION .
    GC0155768Courtesy of CHRYSLER GROUP, LLC
  19. From under the passenger side of the dash, connect the body to dash wiring harnesses (1).
  20. Connect the coaxial connectors (2), if equipped.
  21. Install the glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, INSTALLATION .
    GC0155847Courtesy of CHRYSLER GROUP, LLC
  22. Insert the air conditioning drain tube onto the floor valve.
  23. With the use of pliers or equivalent, connect the air conditioning drain tube clamp (4).
  24. Fasten the ground wiring (3) to the floor, and tighten securely.
  25. Install the instrument panel to floor bracket fasteners (1) and tighten securely.
    GC0155577Courtesy of CHRYSLER GROUP, LLC
  26. Install the steering column (1). Refer to COLUMN, INSTALLATION .
  27. Install the steering column gap hider (3) fasteners (2), and tighten securely.
  28. Install the steering column opening closeout.
  29. Install the lower dash silencer panels. Refer to PANEL, SILENCER, LOWER, INSTALLATION .
    GC0156374Courtesy of CHRYSLER GROUP, LLC
  30. Connect the a-pillar wiring connectors (2) on both sides of the vehicle.
  31. Clip the wiring connectors (1) to the side of the dash panel (1).
    GC0158551Courtesy of CHRYSLER GROUP, LLC
  32. Install the a-pillar trim. Refer to PANEL, A-PILLAR TRIM, INSTALLATION .
  33. Install the defroster grill, and seat fully. Refer to GRILLE, DEFROSTER, INSTALLATION .
    GC0158531Courtesy of CHRYSLER GROUP, LLC
  34. Position the speaker covers (1) back into place and seat fully.
    GC0158536Courtesy of CHRYSLER GROUP, LLC
  35. Position the front door sill scuff panel (1).
  36. Hand tap to engage the retaining clips securing the front door sill scuff panel (1) to the door sill and lower B-pillar.
    GC0158558Courtesy of CHRYSLER GROUP, LLC
  37. Position the closeout trim panel (3) located between the A-pillar trim and the front scuff plate.
  38. Seat the retaining clips (1 and 2) fully.
    GC0158544Courtesy of CHRYSLER GROUP, LLC
  39. Install the end caps (1). Refer to CAP, INSTRUMENT PANEL END, INSTALLATION .
    GC0158557Courtesy of CHRYSLER GROUP, LLC
  40. Install the radio support bracket (1) and install the fasteners (2).
    GC0158542Courtesy of CHRYSLER GROUP, LLC
  41. Install the center bezel (2) and seat the clips (1) fully.
  42. Install the center bezel fasteners (3).
    GC0158548Courtesy of CHRYSLER GROUP, LLC
  43. Connect the HVAC control head electrical connectors and install the control head (2).
  44. Seat the four control head fastener clips (1) fully.
    GC0158549Courtesy of CHRYSLER GROUP, LLC
  45. Position the harness (1) back into place and seat the retainers fully.
    GC0158521Courtesy of CHRYSLER GROUP, LLC
  46. Position the storage bin (1) back into place onto the instrument panel top cover (2) and seat fully.
    GC0158553Courtesy of CHRYSLER GROUP, LLC

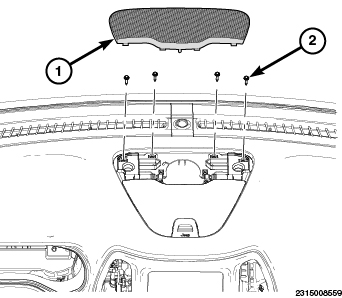

  47. Install the fasteners (2).
  48. Install center speaker cover (1) and seat fully.
    GC0159527Courtesy of CHRYSLER GROUP, LLC
  49. Install the HVAC floor ducts (1) and install the bracket (2). Refer to DUCT, FLOOR DISTRIBUTION, INSTALLATION .
  50. Install the transmission shifter. Refer to SHIFTER, FLOOR CONSOLE, INSTALLATION .
  51. Install the floor console. Refer to CONSOLE, FLOOR, INSTALLATION .
    GC0155877Courtesy of CHRYSLER GROUP, LLC

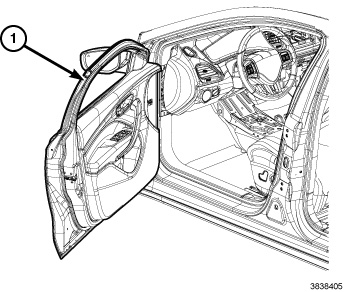

  52. Check the dash carrier hinge pillar fasteners and tighten to 27 N.m (20 ft lbs).
  53. Install the front doors (1). Refer to DOOR, INSTALLATION .
    GC0156343Courtesy of CHRYSLER GROUP, LLC
  54. Remove plugs, or tape that was placed over the open refrigerant lines (1) and (5) during removal.
  55. Connect the air conditioning refrigerant lines (1) and (5) to the HVAC housing.
  56. Install fastener (4) and tighten to 20 N.m (15 ft lbs).
  57. Remove the plugs, or tape that was placed over the open heater core tubes to prevent coolant during removal.
  58. Connect the heater core hoses (2) and (3) to the HVAC housing.
  59. Charge the air conditioning system. Refer to PLUMBING, STANDARD PROCEDURE .
  60. Fill the cooling system. Refer to STANDARD PROCEDURE .
