Panel, Silencer, Lower: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

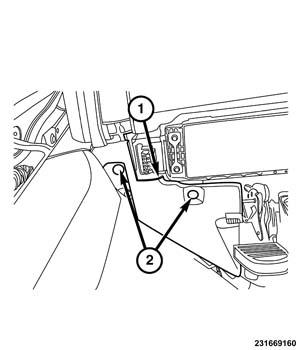

Passenger Side
- Align passenger side hush panel (1) into the vehicle.
- Connect wiring connector for the light.
- Insert the push pins (2), fully.
- Tuck the edges hush panel (1) under the surrounding components.

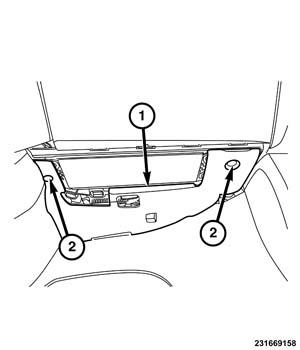

Drivers Side
- Align driver side hush panel (1) into the vehicle.
- Insert the push pins (2), fully.
- Tuck the edges of the hush panel (1) under the surrounding component.
