Glass, Door: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

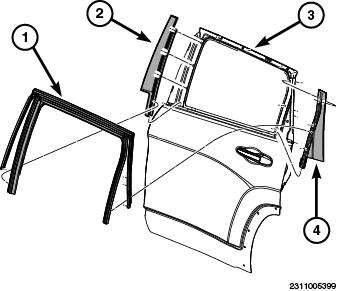

GC0159766Courtesy of CHRYSLER GROUP, LLC
  1. Remove the trim panel, Refer to PANEL, REAR DOOR TRIM, REMOVAL .
  2. Remove the C-pillar applique (4), Refer to APPLIQUE, REMOVAL .

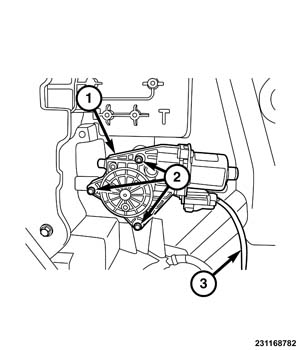

    GC0155894Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the window motor (1) wiring harness (3).
  4. Remove the three fasteners (2) from the window motor (1).
  5. Remove the window motor (1) from the carrier plate.

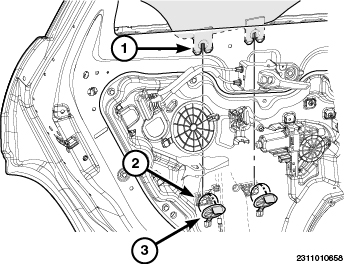

    GC0159264Courtesy of CHRYSLER GROUP, LLC
  6. Open the access plugs (3) on the carrier plate.
  7. Position the glass by hand until the glass fasteners lines up in the access hole (3).
  8. Remove the glass fastener.

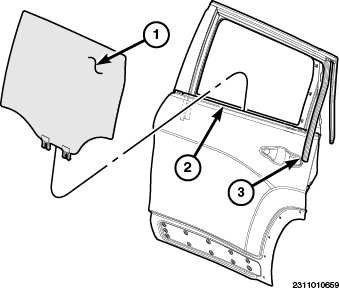

    GC0159805Courtesy of CHRYSLER GROUP, LLC
  9. Remove the glass from the vehicle.
