Doors - Rear: Applique: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

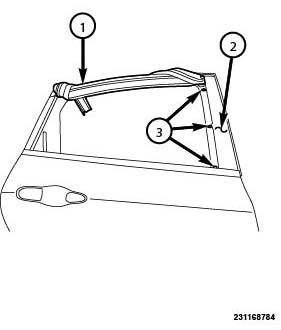

Lower window fully.
Remove the door trim panel, Refer to PANEL, REAR DOOR TRIM, REMOVAL .
.
Partially remove the rear portion of the door glass weatherstrip (2).
Remove the three C-pillar applique (1) fasteners (3).
Remove the C-pillar applique (1) from the vehicle.

Courtesy of CHRYSLER GROUP, LLC

B-Pillar Applique-

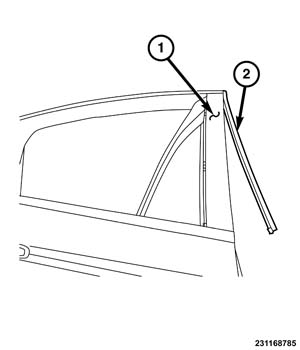

Lower window fully.
Remove the door trim panel. Refer to PANEL, REAR DOOR TRIM, REMOVAL .
Partially remove the front portion of the door glass weatherstrip (1).
Remove the three B-pillar applique (2) fasteners (3).

Courtesy of CHRYSLER GROUP, LLC
Untuck the front edge of the weatherstrip (2) from the applique (1) and the door edge.
Remove the B-pillar applique (1) from the vehicle.
