Standard Procedure - Measuring Valve Lash: Notes

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

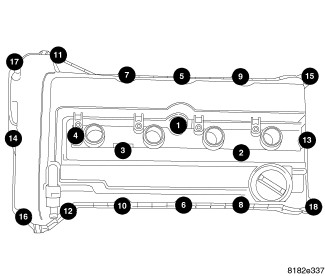

Fig 1: Removing/Installing Cylinder Head Cover Bolts In Sequence

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The engine must be cold to measure valve lash.

Remove engine cover.
Remove cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL .

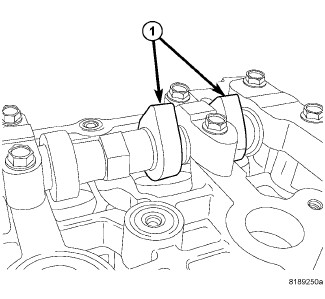

Fig 2: Identifying Camshaft So Lobes Are Vertical
Courtesy of CHRYSLER GROUP, LLC
Rotate camshaft so lobes are vertical (1).
Check clearance using feeler gauges.
Repeat for all tappets and record readings.
If clearance was too small, refer to the CLEARANCE TOO SMALL procedure.
If clearance was too large, refer to the CLEARANCE TOO LARGE procedure.
