Clearance Too Large

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

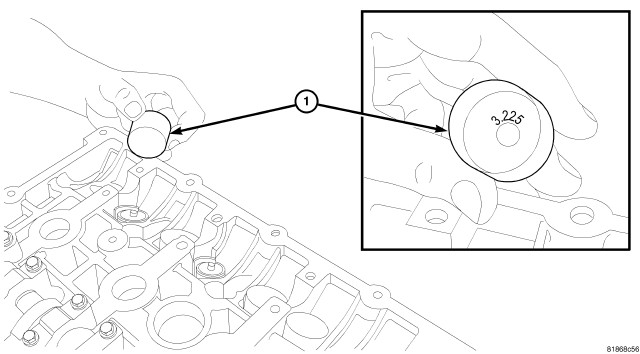

Fig 1: Tappet Identification
GC0082431Courtesy of CHRYSLER GROUP, LLC
  1. Remove camshafts. Refer to CAMSHAFT, ENGINE, REMOVAL .
  2. Clearance - specification = change.
  3. Increase tappet thickness by change figure.
  4. Install camshafts. Refer to CAMSHAFT, ENGINE, INSTALLATION .
  5. Verify that valve lash is correct.
