Measuring Valve Lash: Notes

WARNING: This page is about a different variant/trim than selected.

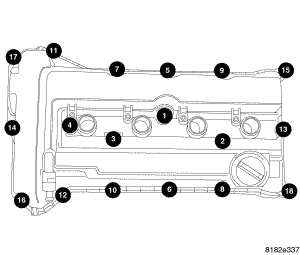

Fig 1: Torque Sequence
GC0054624Courtesy of CHRYSLER LLC
  1. Remove engine cover.
  2. Remove cylinder head cover. See REMOVAL .

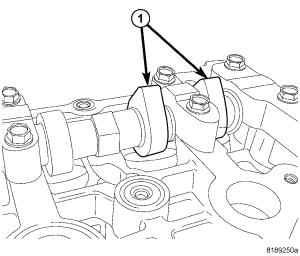

    Fig 2: Lobes Vertical
    GC0054625Courtesy of CHRYSLER LLC
  3. Rotate camshaft so lobes are vertical (1).
  4. Check clearance using feeler gauges.
  5. Repeat for all tappets and record readings.
  6. If clearance was too small, refer to CLEARANCE TOO SMALL .
  7. If clearance was too large, refer to CLEARANCE TOO LARGE .
