Clearance Too Large

WARNING: This page is about a different variant/trim than selected.

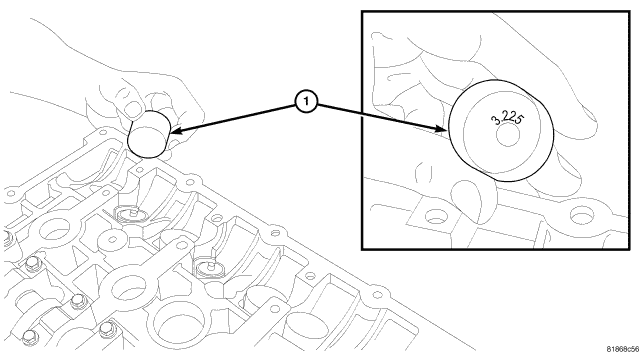

Fig 1: Tappet Identification
GC0054626Courtesy of CHRYSLER LLC
  1. Remove camshafts. See REMOVAL .
  2. Clearance - specification = change.
  3. Increase tappet thickness by change figure.
  4. Install camshafts. See INSTALLATION .
  5. Verify that valve lash is correct.
