Body - Interior & Exterior: Interior: Headliner: Removal

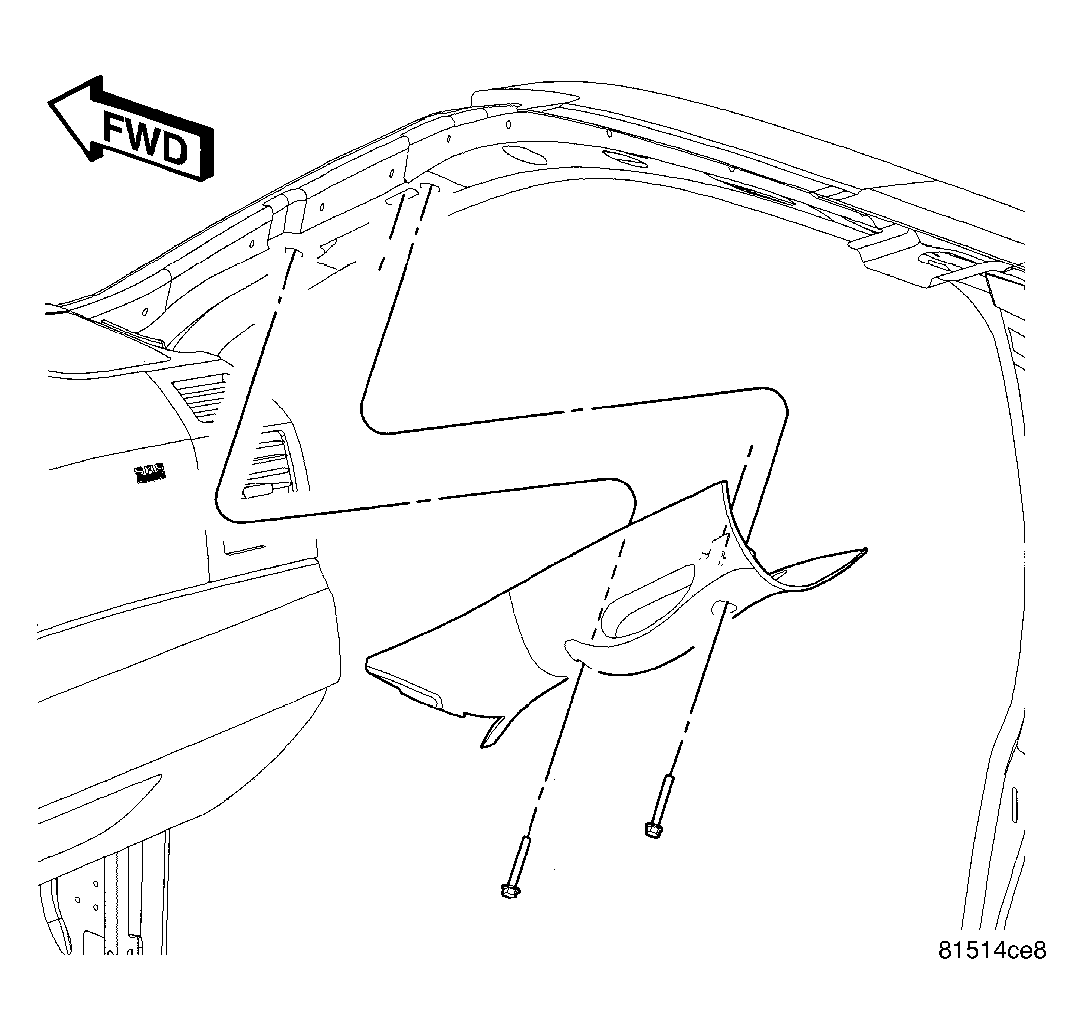

Fig 1: Removing/Installing A-Pillar Trim Panel

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove the A-pillar trim panels, (Refer to BODY/INTERIOR/A-PILLAR TRIM - REMOVAL) .
2. Disconnect the headliner wire harness connector at the right A-pillar and washer hose located at the left A-pillar.
   Fig 2: Removing/Installing Sun Visor Support

   Courtesy of DAIMLERCHRYSLER CORP.

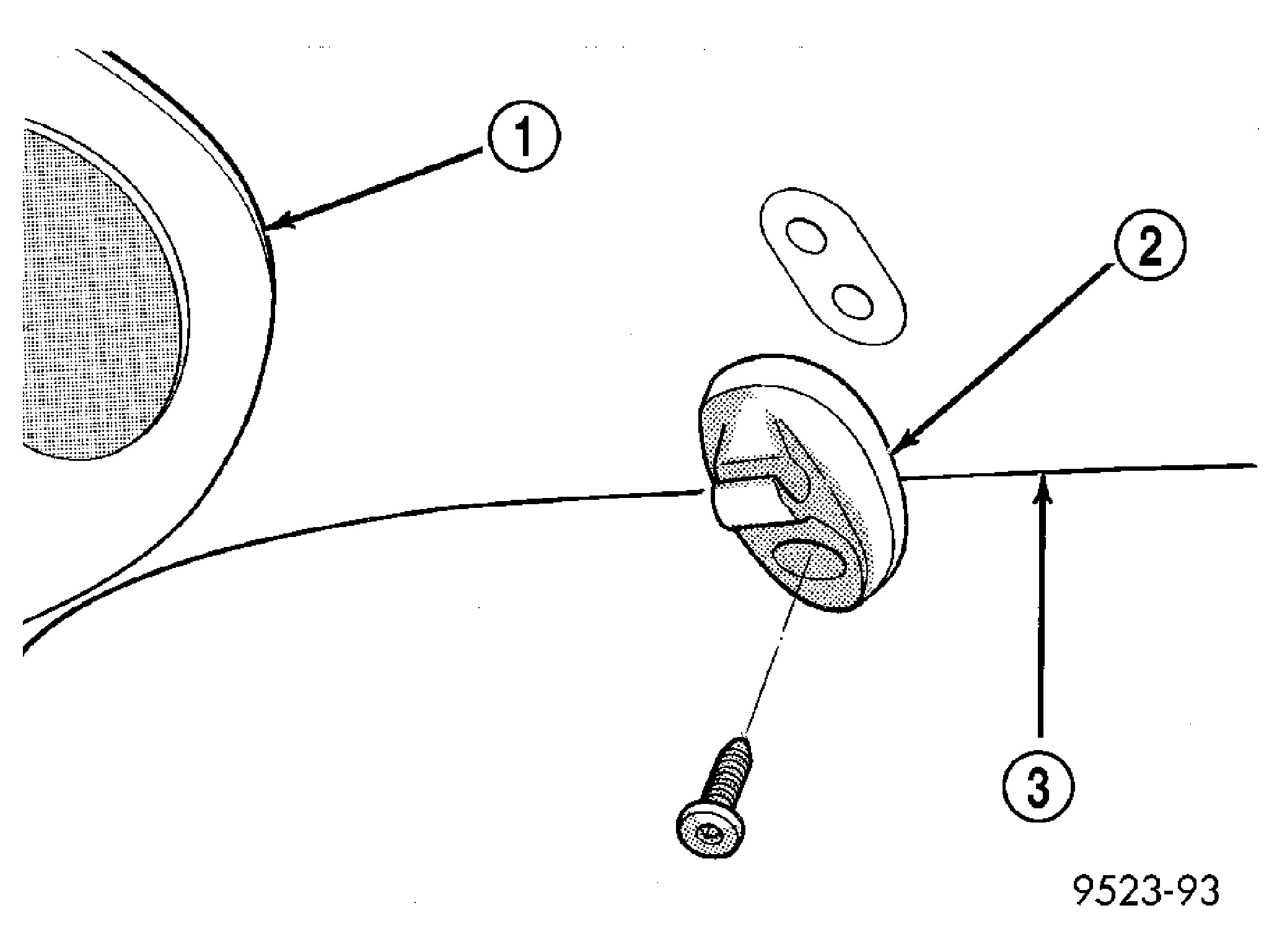

3. Remove the sun visor supports, (Refer to BODY/INTERIOR/SUN VISOR SUPPORT - REMOVAL)
   Fig 3: Removing/Installing Sun Visor

   Courtesy of DAIMLERCHRYSLER CORP.

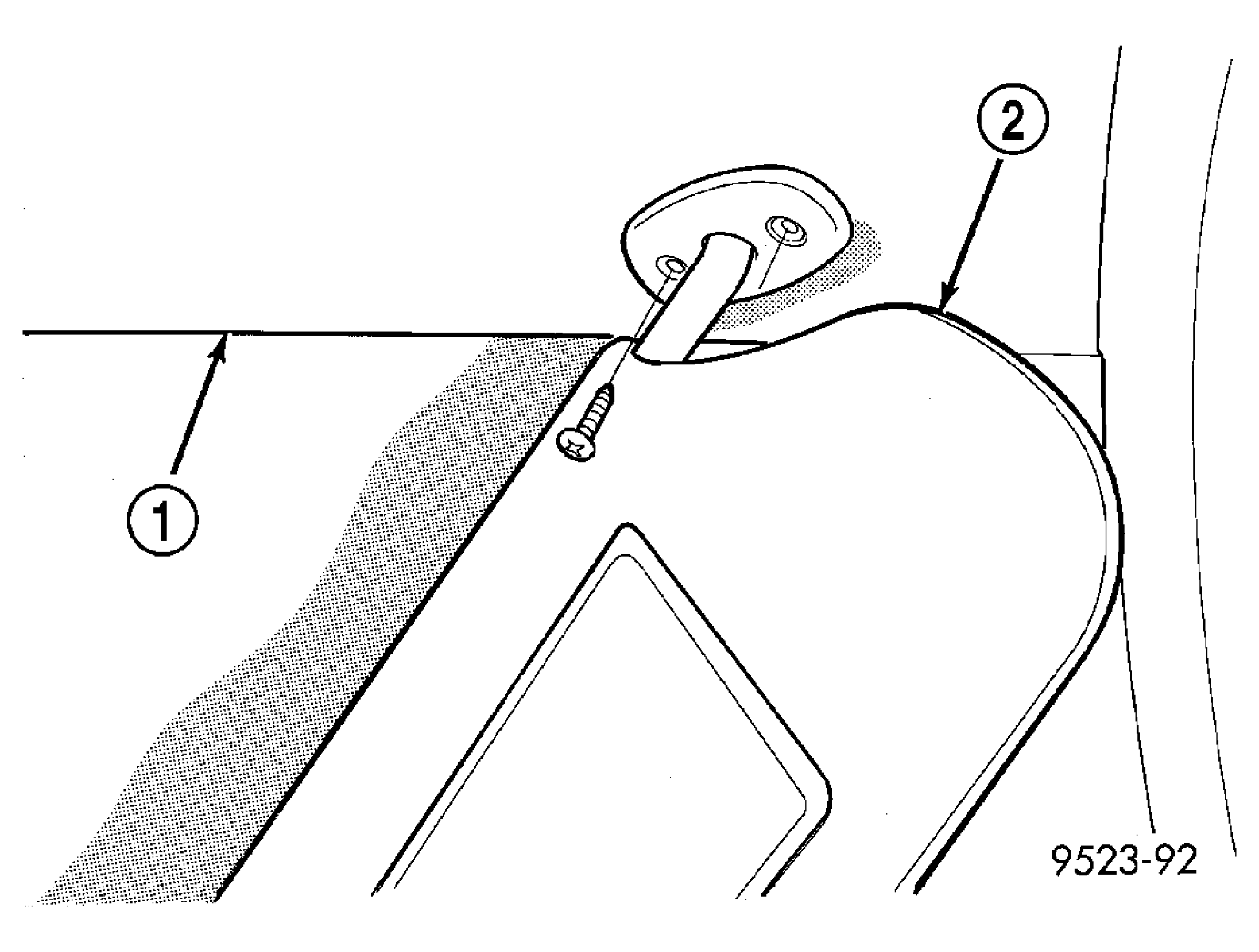

4. Remove the sun visors, (Refer to REMOVAL ).
   Fig 4: Identifying Overhead Console Components

   Courtesy of DAIMLERCHRYSLER CORP.
5. Remove the overhead console, (Refer to ELECTRICAL/OVERHEAD CONSOLE - REMOVAL) .
   Fig 5: Remove/Install Visor Storage Bin & Electrical Connectors

   Courtesy of DAIMLERCHRYSLER CORP.

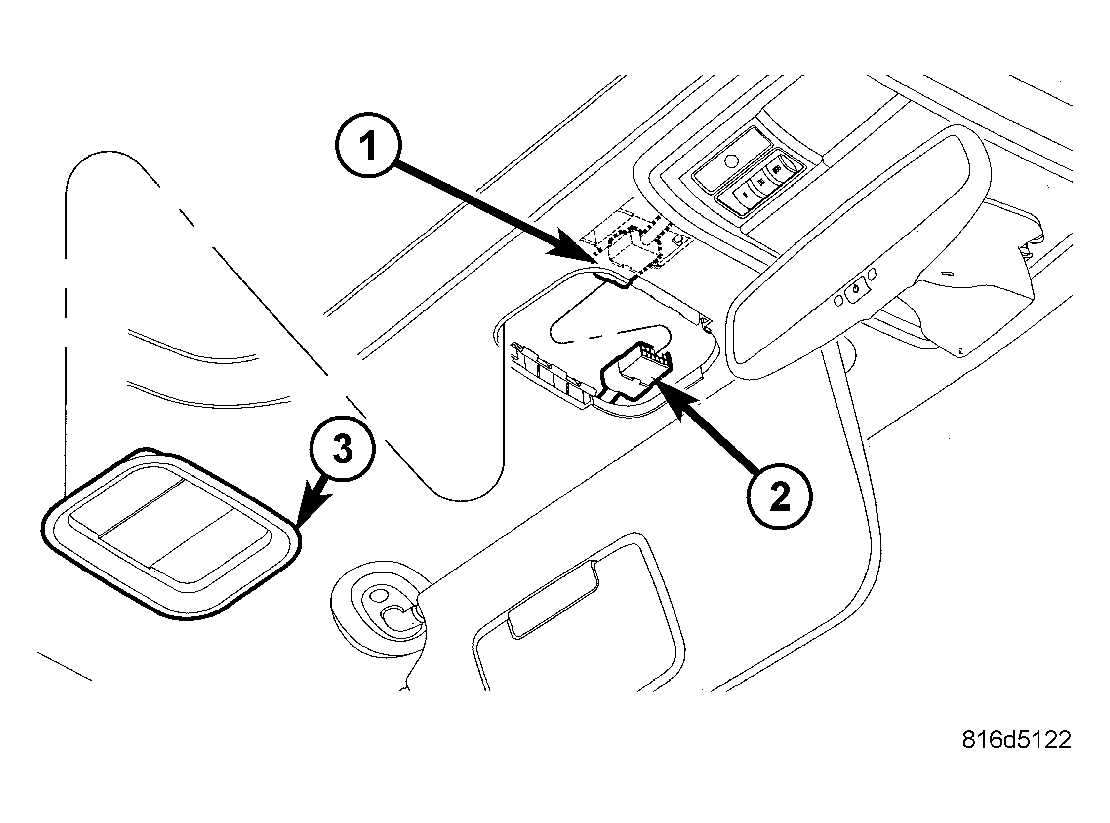

6. Using a trim stick C-4755 or equivalent, separate the visor storage bin (3) from the headliner.
7. Disconnect the electrical connectors (1 and 2).
   Fig 6: Identifying Media System Monitor

   Courtesy of DAIMLERCHRYSLER CORP.

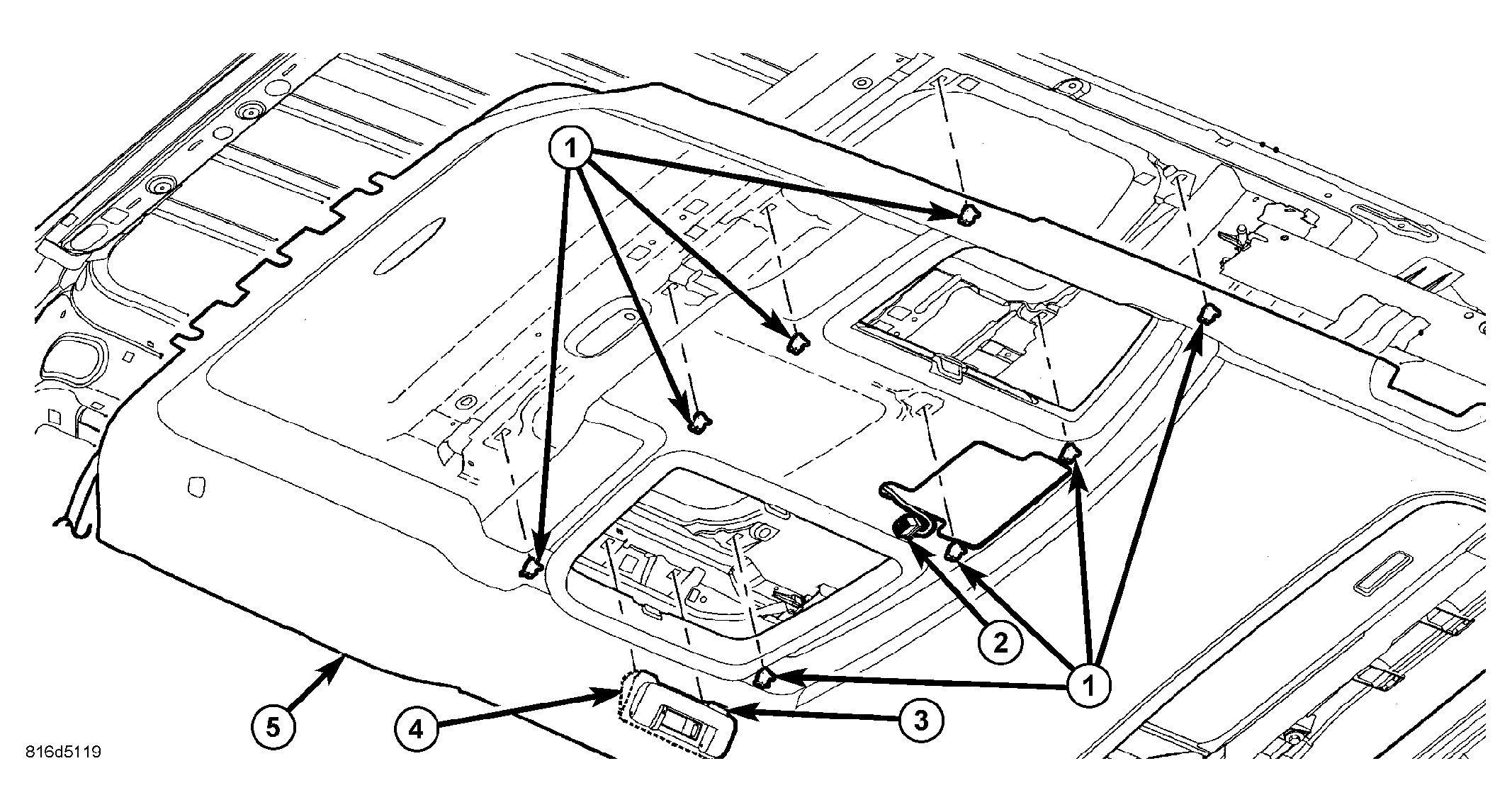

8. Remove the overhead video monitor. (Refer to ELECTRICAL/AUDIO/MONITOR-MEDIA SYSTEM - REMOVAL)

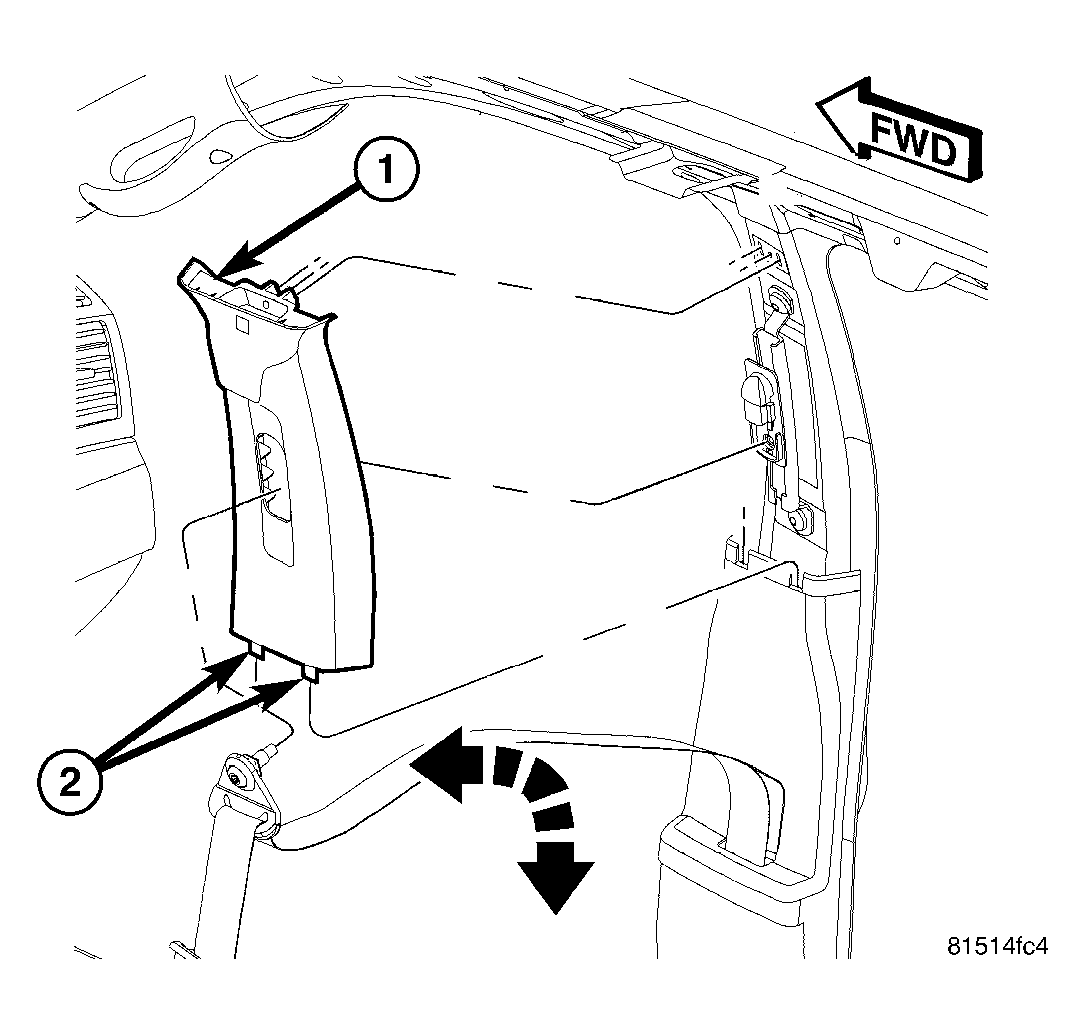

   Fig 7: Removing/Installing B-Pillar Upper Trim

   Courtesy of DAIMLERCHRYSLER CORP.

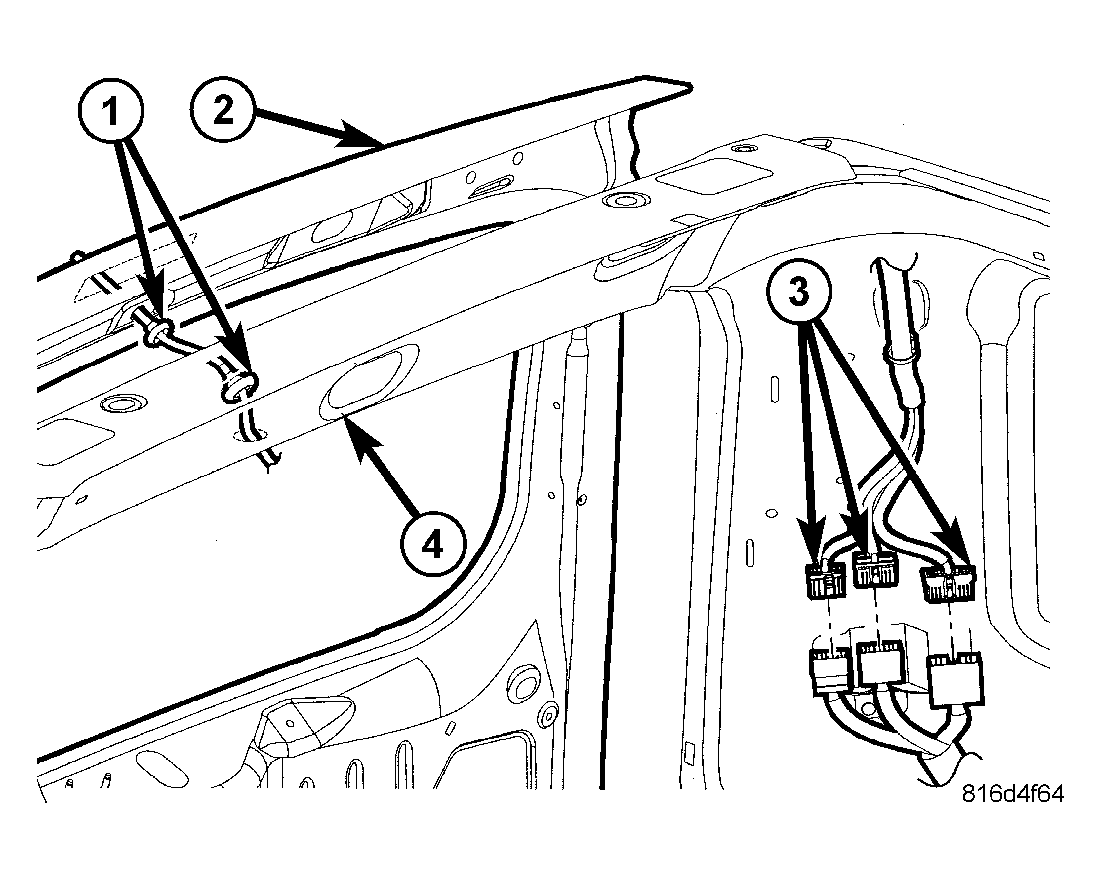

9. Remove the left upper b-pillar trim panels (Refer to BODY/INTERIOR/B-PILLAR UPPER TRIM - REMOVAL) .
   Fig 8: Remove/Install Upper C-Pillar Trim

   Courtesy of DAIMLERCHRYSLER CORP.
10. Separate the C-pillar trim and position aside, (Refer to BODY/INTERIOR/PANEL-C-PILLAR TRIM - REMOVAL) .
    Fig 9: Remove/Install Upper Trim Molding

    Courtesy of DAIMLERCHRYSLER CORP.
11. Position the front seats fully forward and fully reclined.
12. Fold the rear passenger seats down.
13. Remove the rear upper header trim panel (2), (Refer to BODY/INTERIOR/MOLDING-REAR HEADER - REMOVAL)

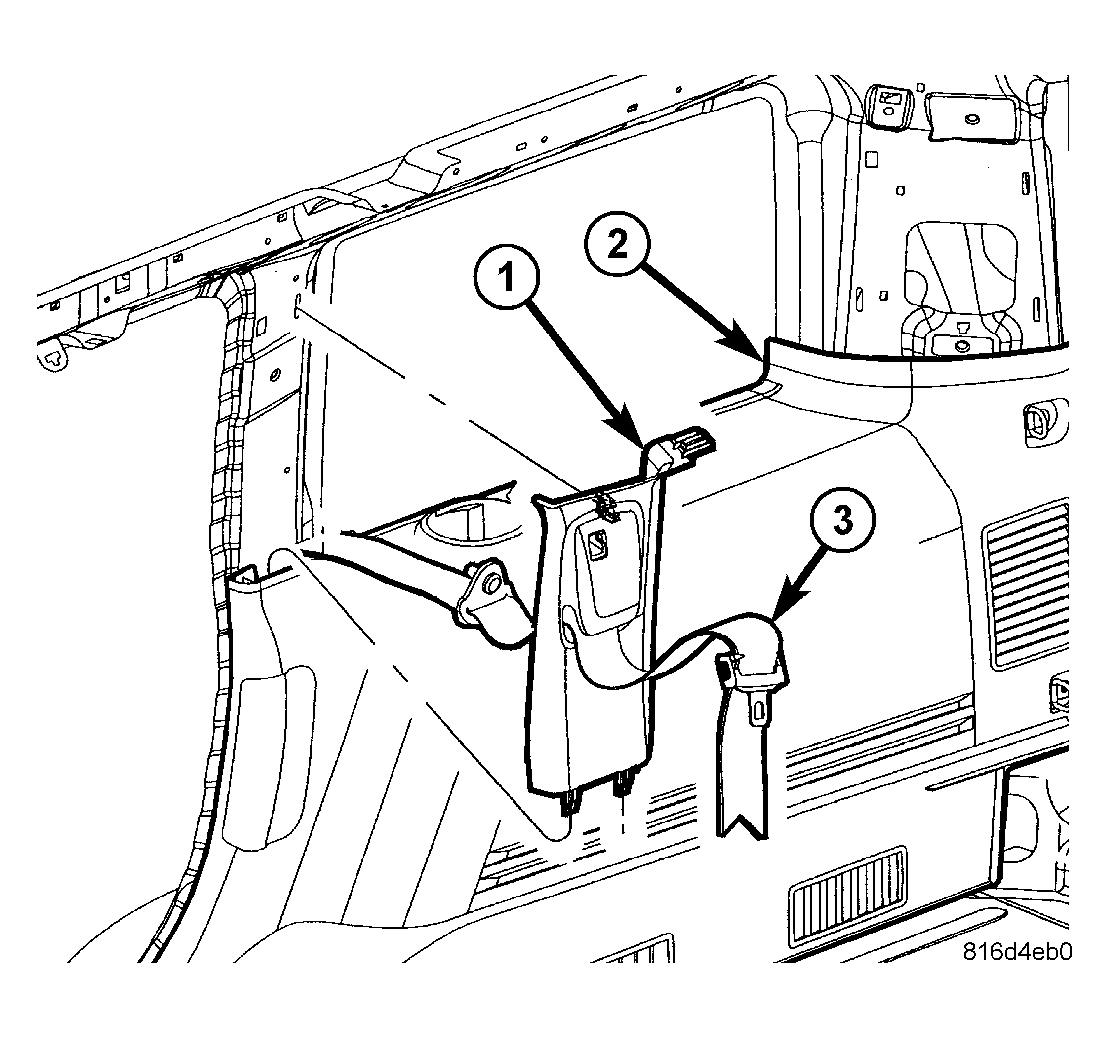

    Fig 10: Remove/Install Rear Push Pins

    Courtesy of DAIMLERCHRYSLER CORP.

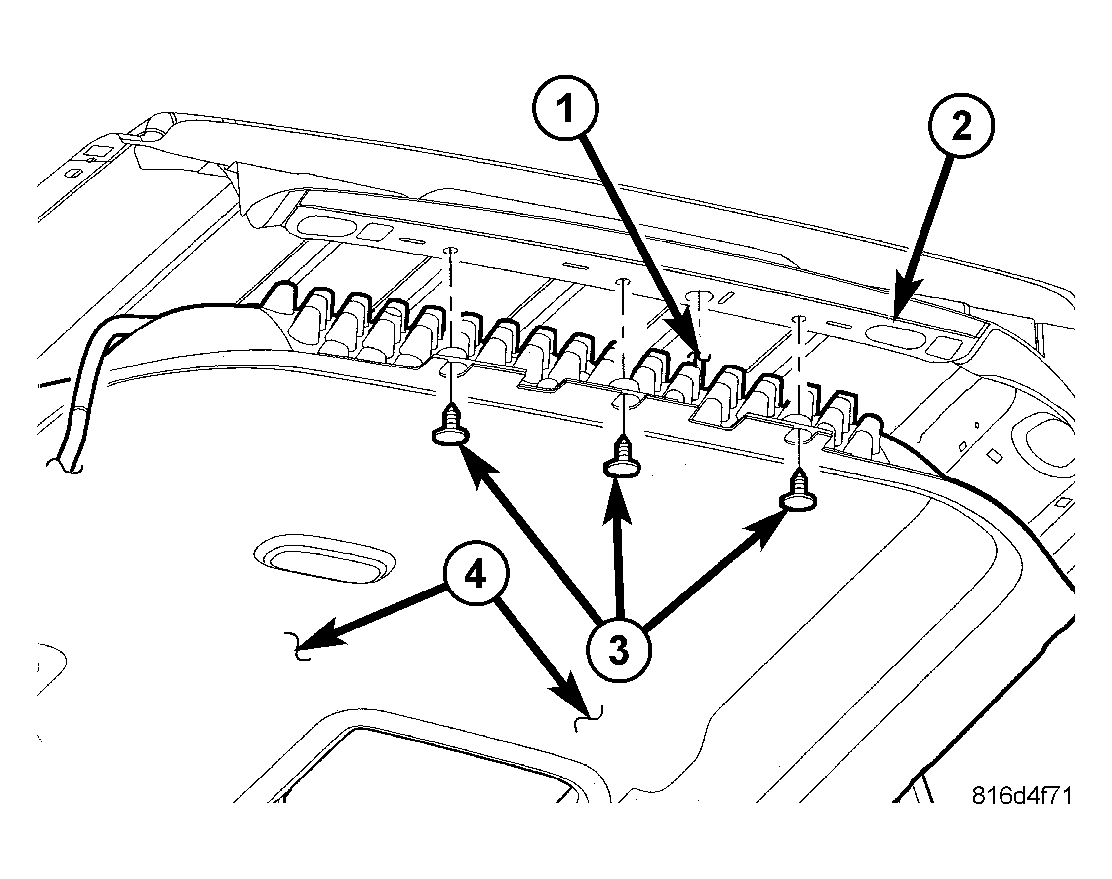

14. Remove the rear push pins (3).
    Fig 11: Remove/Install Rear Upper Header Trim Panel

    Courtesy of DAIMLERCHRYSLER CORP.

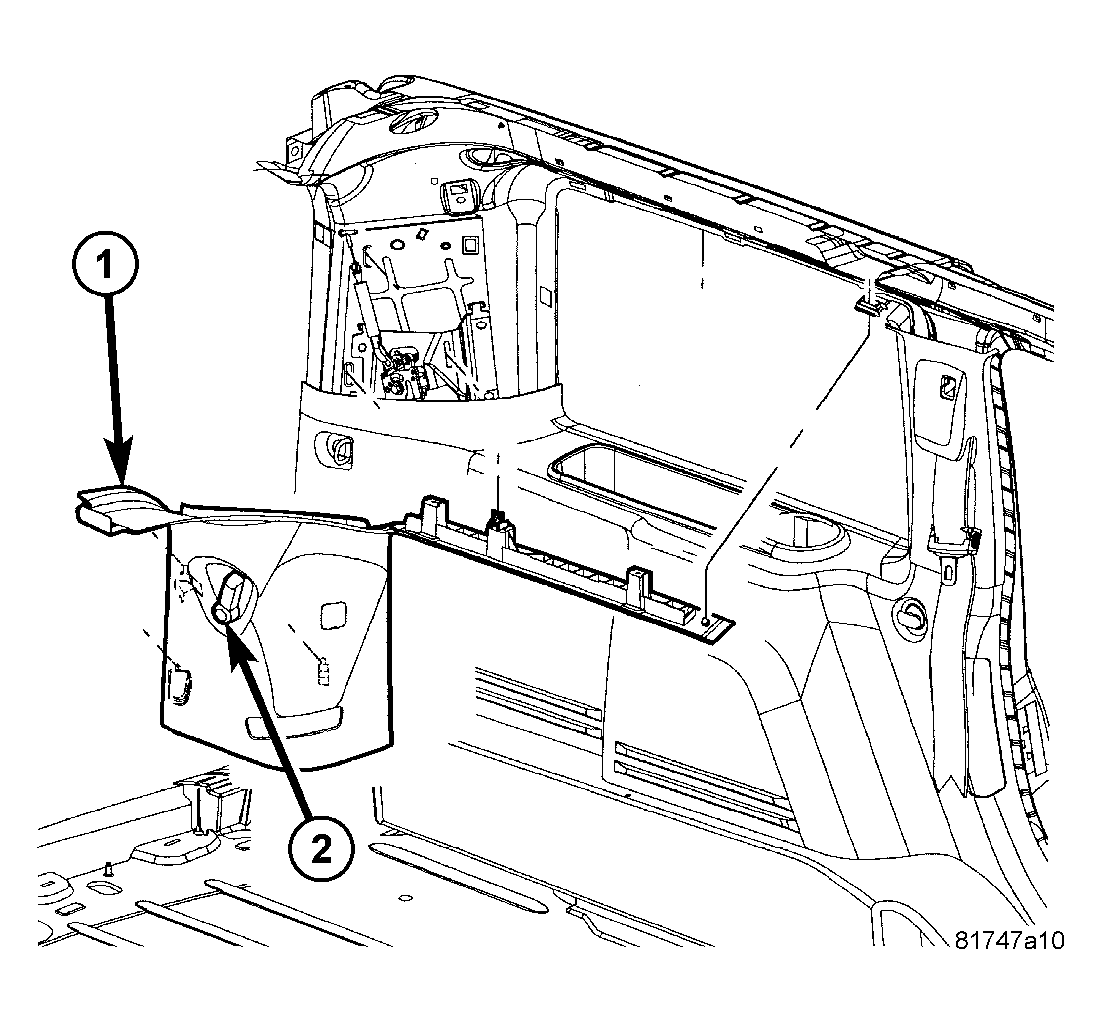

15. Separate the D-pillar trim panels and position aside, (Refer to BODY/INTERIOR/PANEL-D-PILLAR TRIM - REMOVAL) .
    Fig 12: Disconnect/Connect Connections

    Courtesy of DAIMLERCHRYSLER CORP.
16. Lower the rear of the headliner downward from the roof panel and disconnect the rear washer hose.
17. Disconnect the headliner wire harness connector located at the left D-pillar.
    Fig 13: Remove/Install Sunroof Trim Ring

    Courtesy of DAIMLERCHRYSLER CORP.

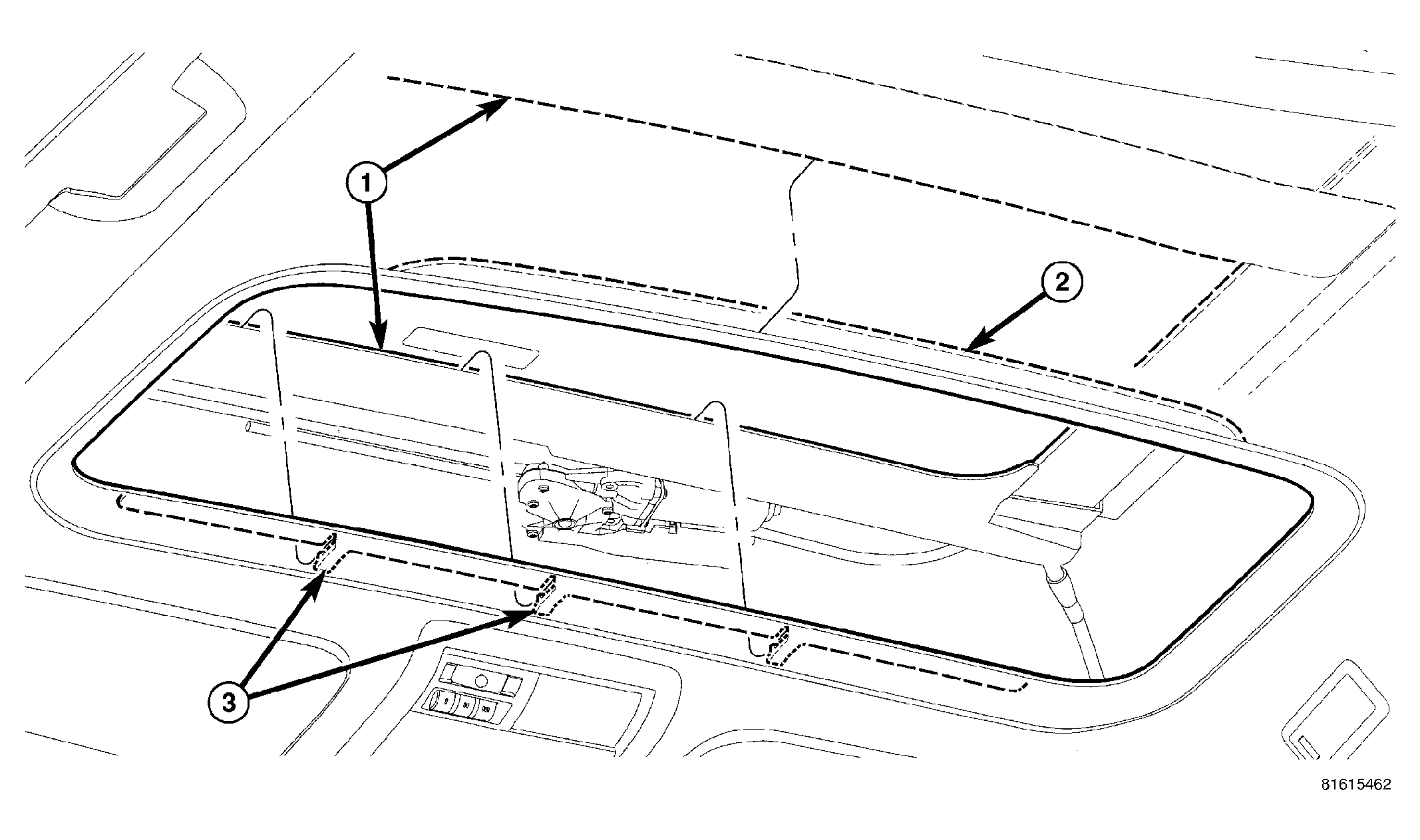

18. Remove the sunroof trim ring, (Refer to BODY/SUNROOF/TRIM RING - REMOVAL)
    Fig 14: Remove/Install Headliner

    Courtesy of DAIMLERCHRYSLER CORP.
19. Remove the screws and remove the grab handles (3).
20. Partially separate the door seals from the door opening.
21. Separate the fasteners (1) (hook and loop fasteners or clips) and lower the headliner.
    CAUTION: Be careful not to crease the headliner.
22. Lower the front of the headliner downward and remove the headliner through the liftgate door opening.
