Panel-B-Pillar Upper Trim: Removal

Fig 1: Remove/Install Trim Plug

Courtesy of DAIMLERCHRYSLER CORP.

Remove the trim plug (1) from the upper b-pillar trim (2).
CAUTION: The upper trim plug must be removed and discarded to gain access to the upper retaining screw before attempting to remove the trim panel. Failure to remove the trim screw may result in damage to the trim panel or the retaining clip.

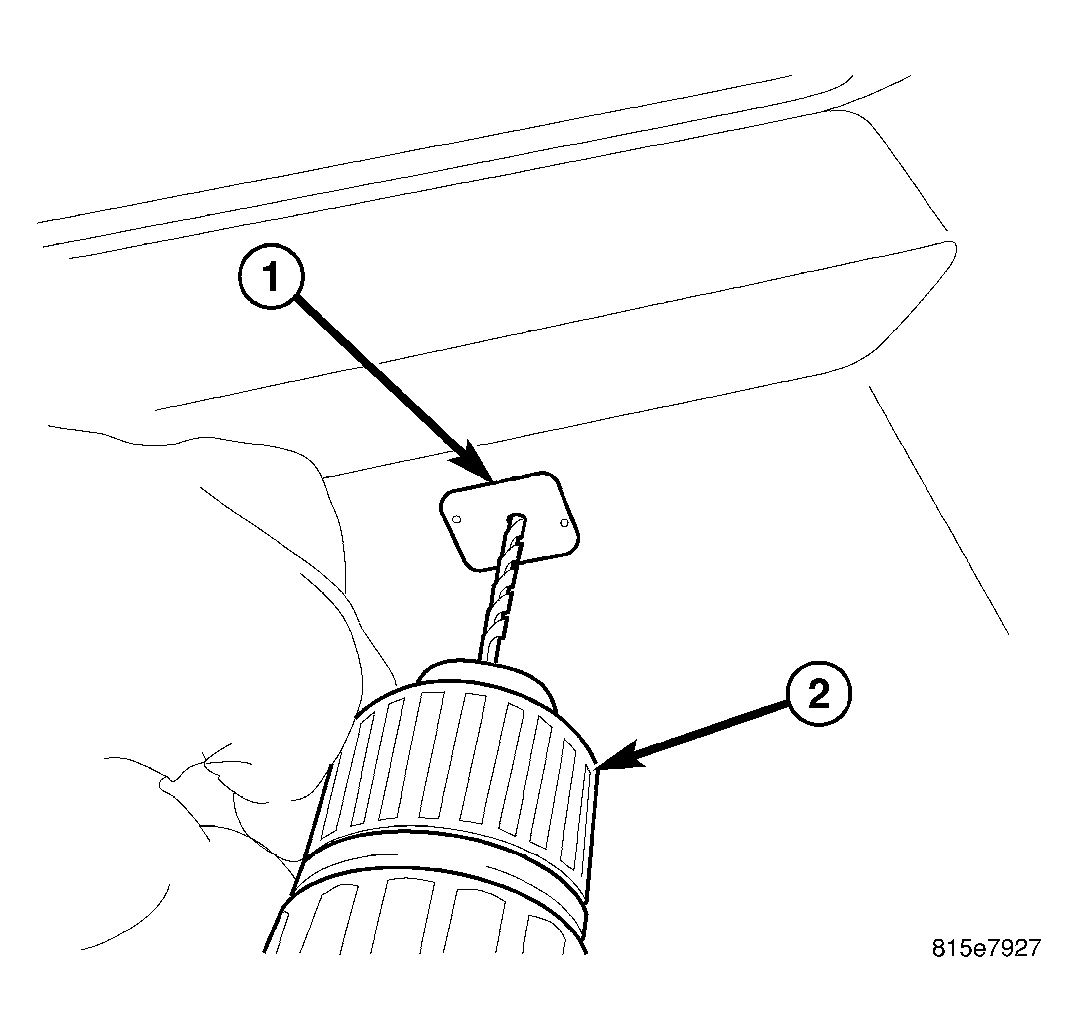

Fig 2: Drilling Hole Into Trim Plug
Courtesy of DAIMLERCHRYSLER CORP.
Using a small drill (2) approximately 3 mm (7/64"), drill a hole into the trim plug (1).

Fig 3: Removing Trim Plug
Courtesy of DAIMLERCHRYSLER CORP.
Using a hook type tool (1) or equivalent, remove and discard the trim plug (2).

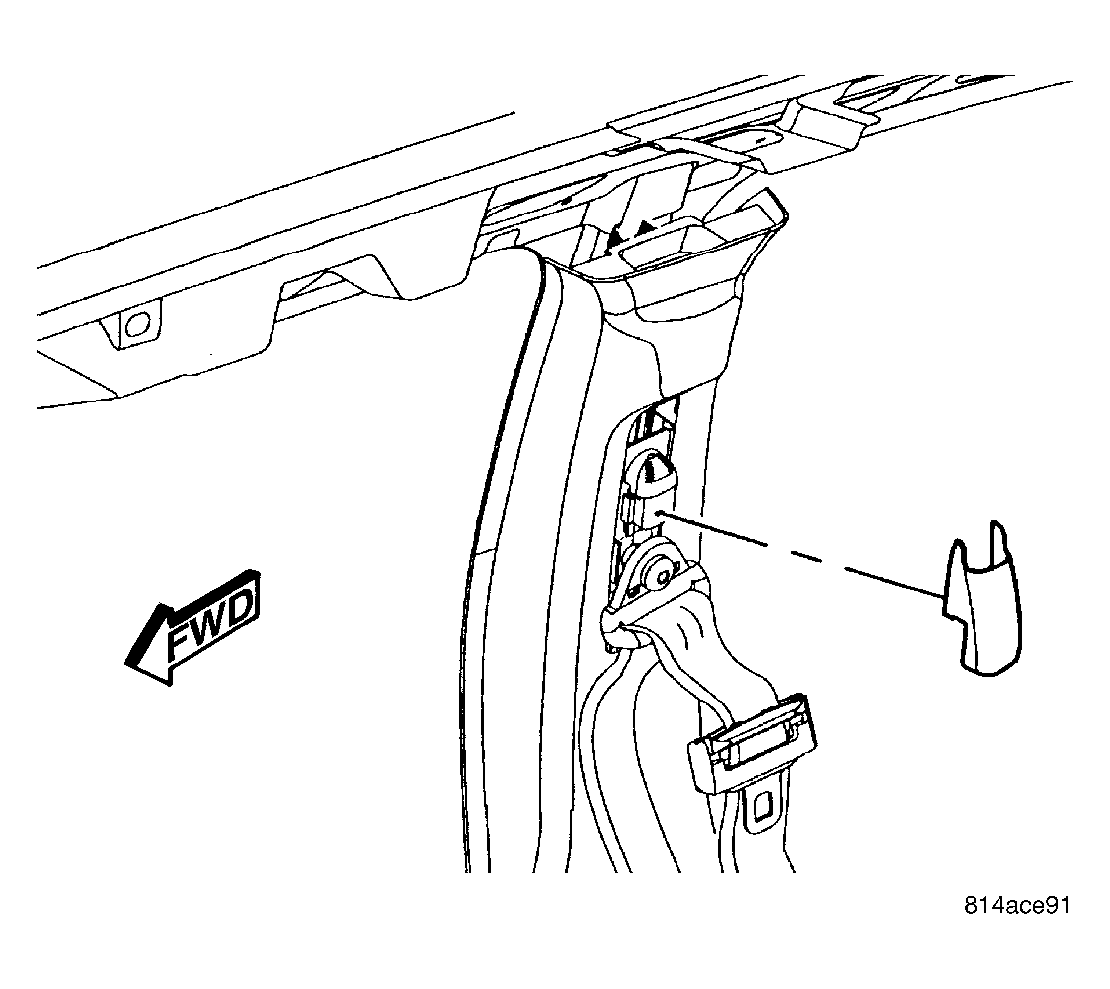

Fig 4: Upper B-Pillar (Seat Belt Anchor)
Courtesy of DAIMLERCHRYSLER CORP.
Firmly grasp the lower end of the turning loop trim cover on the upper B-pillar and pull it straight out to unsnap it from the height adjuster, then lift the bottom of the cover upward and pull outward to disengage the upper tabs from the adjuster.

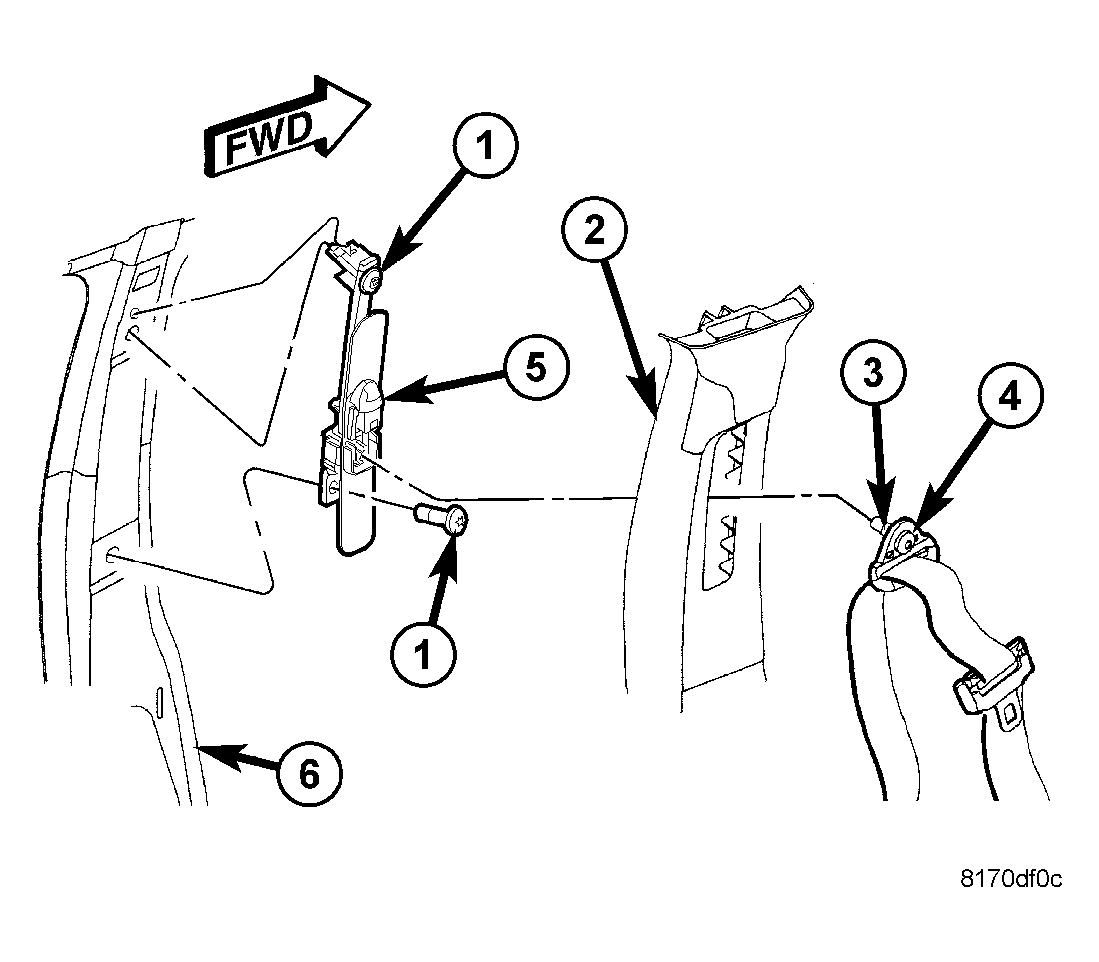

Fig 5: Exploded View Of Seat Belt Components
Courtesy of DAIMLERCHRYSLER CORP.
Remove the screw (3) that secures the seat belt turning loop (4) to the height adjuster (5).
Remove the seat belt turning loop from the height adjuster and position the seat belt out of the way.

Fig 6: Removing/Installing B-Pillar Upper Trim
Courtesy of DAIMLERCHRYSLER CORP.
Using a magnetic screwdriver or equivalent, remove the upper screw and pull the upper part of the trim panel (1) away from the pillar and release the bottom tabs (2).
