Panel-D-Pillar Trim: Removal

Fig 1: Remove/Install Upper Trim Molding

Courtesy of DAIMLERCHRYSLER CORP.

Remove the rear header molding, (Refer to BODY/INTERIOR/MOLDING-REAR HEADER - REMOVAL)

Fig 2: Remove/Install Rear Upper Header Trim Panel
Courtesy of DAIMLERCHRYSLER CORP.
Using a trim stick C-4755 or equivalent, disengage the retaining tabs that secure the D-pillar trim panel to the retaining clips in the D-pillar and remove the trim panel.

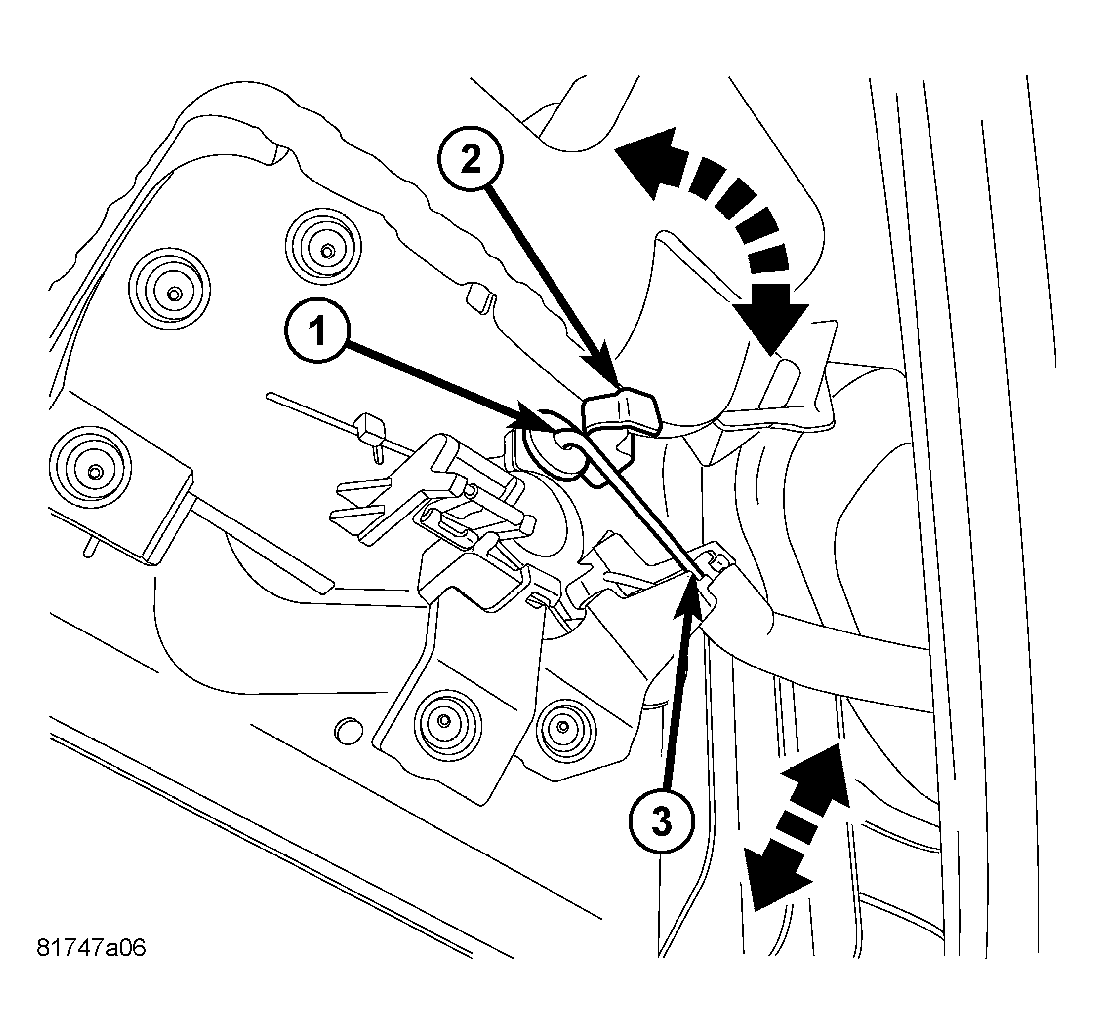

Fig 3: Remove/Install Seat Release Lever Cable
Courtesy of DAIMLERCHRYSLER CORP.
Separate the seat release cable clip (2), remove the cable housing from the bracket (3) and disconnect the cable (1).
