Cradle-Rear Body: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Cradle
GC0027788Courtesy of DAIMLERCHRYSLER CORP.
  1. Install the cradle and install the rail bolts (4).
  2. Align the cradle to the marks made previously.
  3. Tighten the bolts (4) to 108 N.m (80 ft. lbs.).
  4. Install the side cradle bolt (1).
  5. Tighten the bolt (1) to 108 N.m (80 ft. lbs.).
  6. Install the upper cradle bolts (2).
  7. Tighten the bolts (2) to 102 N.m (75 ft. lbs.).
    Fig 2: Exhaust Hangers
    GC0027789Courtesy of DAIMLERCHRYSLER CORP.
  8. Connect the exhaust hangers (1 and 2).
    Fig 3: Sway Bar Attach
    GC0027787Courtesy of DAIMLERCHRYSLER CORP.
  9. Attach the track bar (1) and install the outer bolt (3) and nut (2).
  10. Tighten the bolt (3) to 190 N.m (140 ft. lbs.).

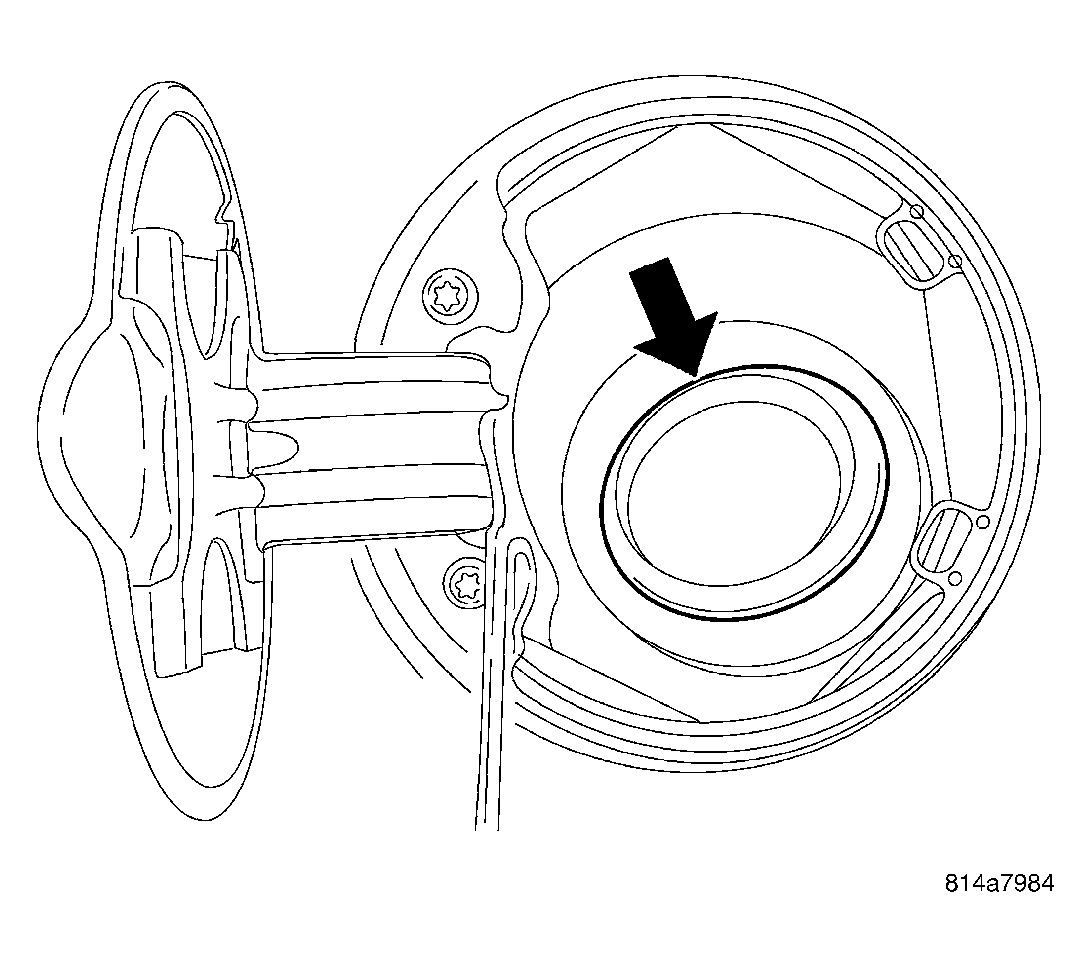

    Fig 4: Filler Neck Grommet 2
    GC0027795Courtesy of DAIMLERCHRYSLER CORP.
  11. Verify that the fuel filler tube grommet is in place and lube the grommet to aid installation of the filler tube.
    Fig 5: Fuel Filler 2
    GC0027791Courtesy of DAIMLERCHRYSLER CORP.
  12. Install the filler tube through the grommet.
    Fig 6: Fuel Filler 1
    GC0027790Courtesy of DAIMLERCHRYSLER CORP.
  13. Install the bolt (1) supporting the fuel filler tube (2) and tighten to 14 N.m (10 ft. lbs.).
    Fig 7: Fuel Filler 3
    GC0027792Courtesy of DAIMLERCHRYSLER CORP.
  14. Connect the fuel filler hose (3) to the fuel tank and install the clamp (4).
  15. Connect the fuel line (1).
  16. Connect the vapor canister line (2).
    Fig 8: Trailer Wiring
    GC0027800Courtesy of DAIMLERCHRYSLER CORP.
  17. Connect the trailer wiring electrical connector (1).
    Fig 9: Left Harness
    GC0027801Courtesy of DAIMLERCHRYSLER CORP.
  18. Position the left wire harness through the cradle and secure the harness hangers.
    Fig 10: Vapor Canister
    GC0027793Courtesy of DAIMLERCHRYSLER CORP.
  19. Install the vapor canister (1) and install the lower canister nut (2).
  20. Tighten the nuts to 24 N.m (17 ft. lbs.).
    Fig 11: Canister Electrical
    GC0027799Courtesy of DAIMLERCHRYSLER CORP.
  21. Connect the vapor canister hoses.
    Fig 12: Canister Electrical
    GC0027798Courtesy of DAIMLERCHRYSLER CORP.
  22. Connect the vapor canister electrical connector.
    Fig 13: Right Harness
    GC0027796Courtesy of DAIMLERCHRYSLER CORP.
  23. Position the right wire harness through the cradle and secure the harness hangers.
    Fig 14: TPM Sensor
    GC0027797Courtesy of DAIMLERCHRYSLER CORP.
  24. Connect the tire pressure monitor sensor, if equipped.
  25. Install the tail lamps. (Refer to ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/TAIL LAMP - INSTALLATION)
  26. Install the fascia. (Refer to FRAME & BUMPERS/BUMPERS/FASCIA-REAR - INSTALLATION)
  27. Install the spare wheel.
