Section 590 (Frame & Bumpers): Fascia-Rear: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

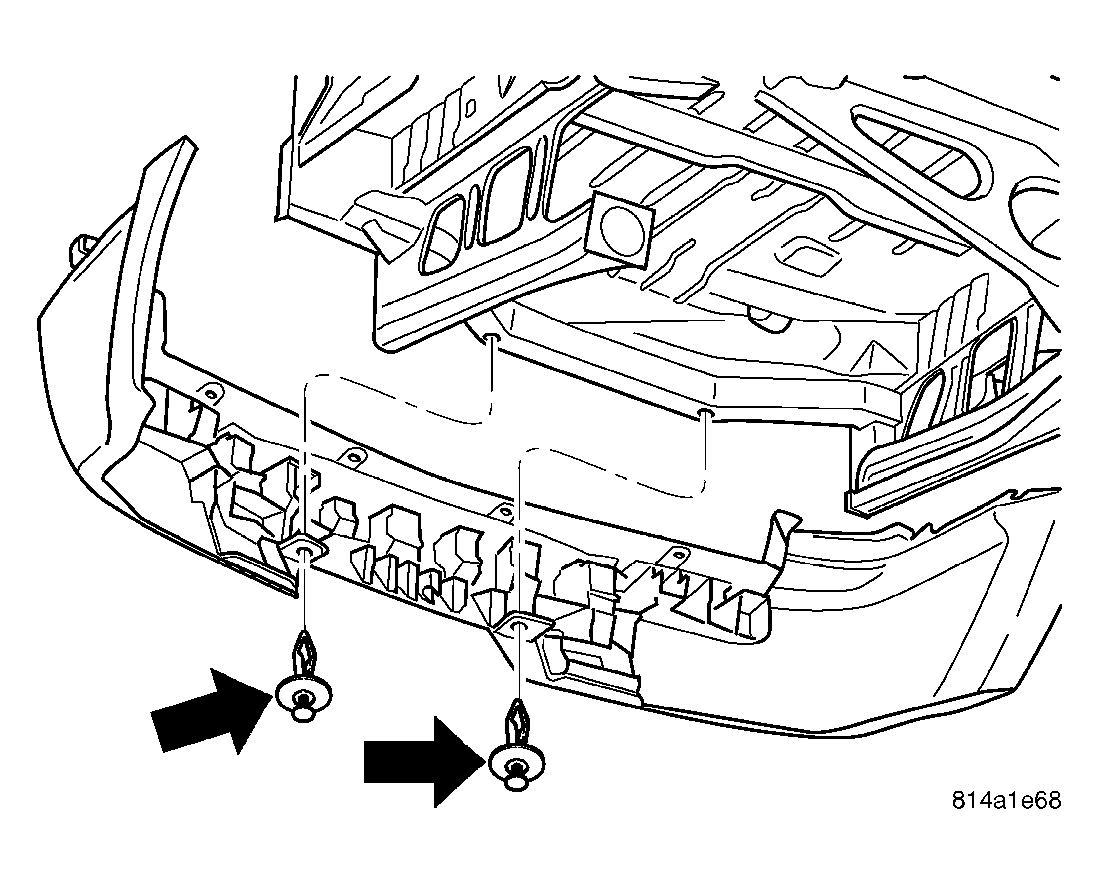

Fig 1: Fascia To Wheel Liners

Courtesy of DAIMLERCHRYSLER CORP.

Install the park assist sensors, if equipped.
Install the energy absorber and install the four push pin fasteners.
Position the fascia onto the vehicle and connect the electrical connector.

Fig 2: Fascia
Courtesy of DAIMLERCHRYSLER CORP.
Slightly spread the sides of the fascia to clear the painted surfaces.
Direct the slots in the upper sides of the fascia onto the two t-pushpins (1) on either side.
Install the two screws (2) and four push pin fasteners (3).

Fig 3: Lower Push Pins
Courtesy of DAIMLERCHRYSLER CORP.
Install the two lower push pin fasteners.

Fig 4: Fascia To Quarter Panel
Courtesy of DAIMLERCHRYSLER CORP.
Install the nuts (1) and tighten to 9 N.m (80 in. lbs.).

Fig 5: Fascia To Wheel Liners
Courtesy of DAIMLERCHRYSLER CORP.
Install new rivets (1) attaching the wheelhouse splash shields (4) to the fascia.
