Cylinder Head: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

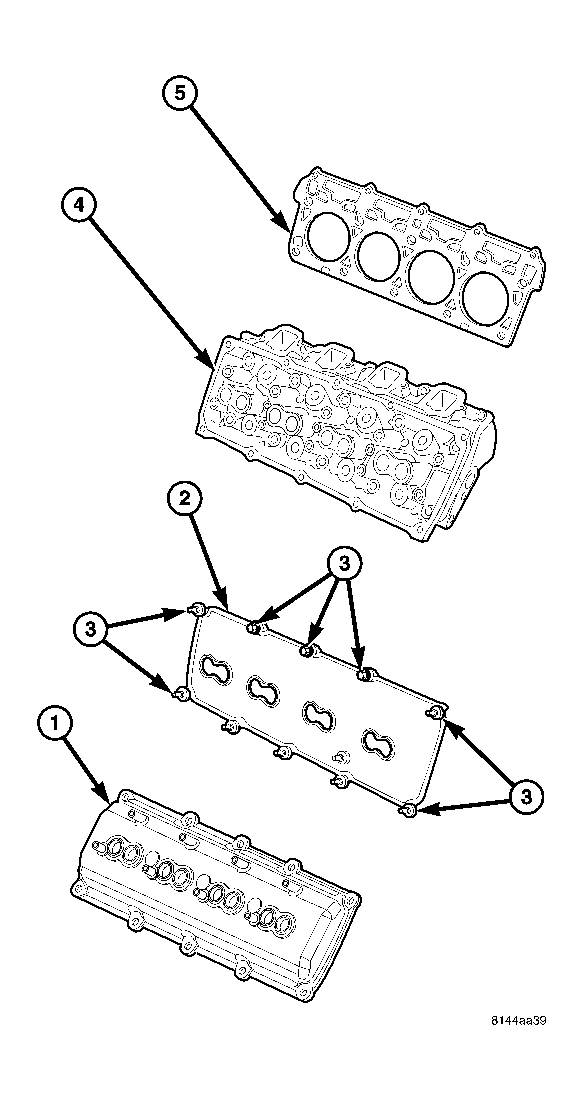

Fig 1: Cylinder Head Components

Courtesy of DAIMLERCHRYSLER CORP.

1 - CYLINDER HEAD COVER

2 - COVER GASKET

3 - FASTENERS

4 - CYLINDER HEAD

5 - HEAD GASKET

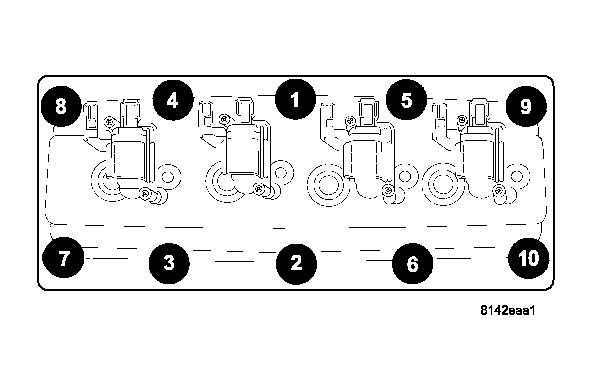

Fig 2: Cover Torque Sequence

Courtesy of DAIMLERCHRYSLER CORP.

Perform the Fuel System Pressure Release procedure (Refer to FUEL SYSTEM/FUEL DELIVERY - STANDARD PROCEDURE) . Disconnect the fuel supply line (Refer to FUEL SYSTEM/FUEL DELIVERY/QUICK CONNECT FITTING - STANDARD PROCEDURE) .
Disconnect the battery negative cable.
Drain cooling system (Refer to COOLING - STANDARD PROCEDURE) .
Remove the air cleaner resonator and duct work (Refer to ENGINE/AIR INTAKE SYSTEM - REMOVAL) .
Remove closed crankcase ventilation system.
Disconnect the exhaust at the exhaust manifolds.
Disconnect the evaporation control system.
Disconnect heater hoses.
Remove the power steering pump.
Remove cylinder head covers (1), using the sequence provided, and gaskets (2). REMOVAL ).

Fig 3: Rocker Shaft Torque Sequence
Courtesy of DAIMLERCHRYSLER CORP.
Remove intake manifold and throttle body as an assembly. (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD - REMOVAL) .
Remove rocker arm assemblies and push rods. Identify to ensure installation in original locations. (Refer to ENGINE/CYLINDER HEAD/ROCKER ARM / ADJUSTER ASSY - REMOVAL) .

Fig 4: Cylinder Head Tightening Sequence
Courtesy of DAIMLERCHRYSLER CORP.
Remove the head bolts from each cylinder head, using the sequence provided, and remove cylinder heads. Discard the cylinder head gasket.
