Quarter Trim Panel: Removal
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear passenger seat cushion, (Refer to BODY/SEATS/SEAT CUSHION - REMOVAL) .
- Fold the rear passenger seat down.
- Using a trim stick C-4755 or equivalent, disengage the retaining tabs that secure the upper C-pillar trim panel to the retaining clips in the C-pillar and position the panel and the seat belt out of the way.
- Remove the rear passenger door sill scuff plate, (Refer to BODY/INTERIOR/DOOR SILL SCUFF PLATE - REMOVAL) .
- If equipped, remove the tonneau cover.
- Remove the liftgate scuff plate, (Refer to BODY/INTERIOR/LIFTGATE SCUFF PLATE - REMOVAL) .
- Remove the upper liftgate trim panel, (Refer to BODY/INTERIOR/LIFTGATE OPENING UPPER TRIM - REMOVAL) .
- Remove the D-pillar trim panel, (Refer to BODY/INTERIOR/D-PILLAR TRIM - REMOVAL) .
- Remove the load floor, (Refer to BODY/INTERIOR/LOAD FLOOR - REMOVAL) .

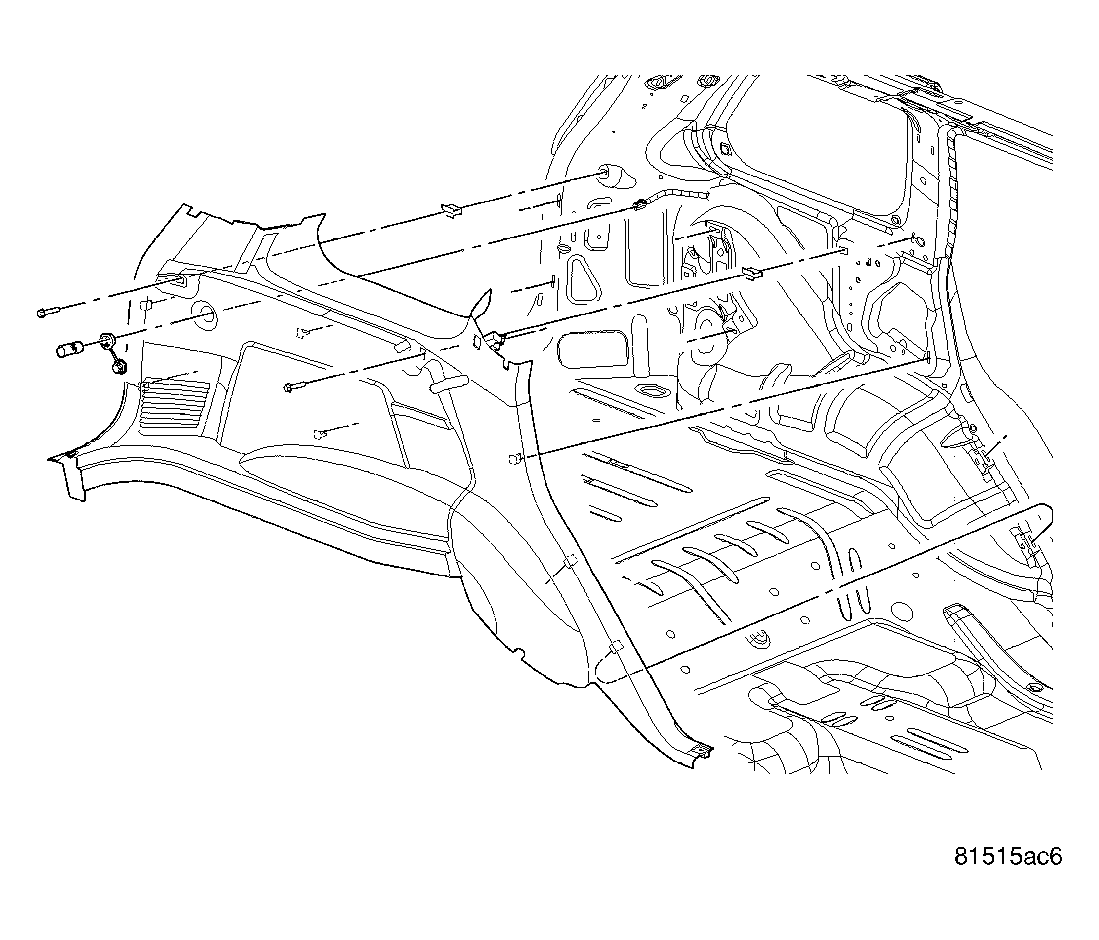

- Remove the two screws that secure the quarter trim panel to the quarter panel.
- Using a trim stick C-4755 or equivalent, disengage the retaining tabs that secure the quarter trim panel to the quarter panel.
- Pull the quarter trim panel away from the quarter panel.
- If equipped, disconnect the power outlet wire harness connector.
- Remove the quarter trim panel.
