Liftgate Scuff Plate: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

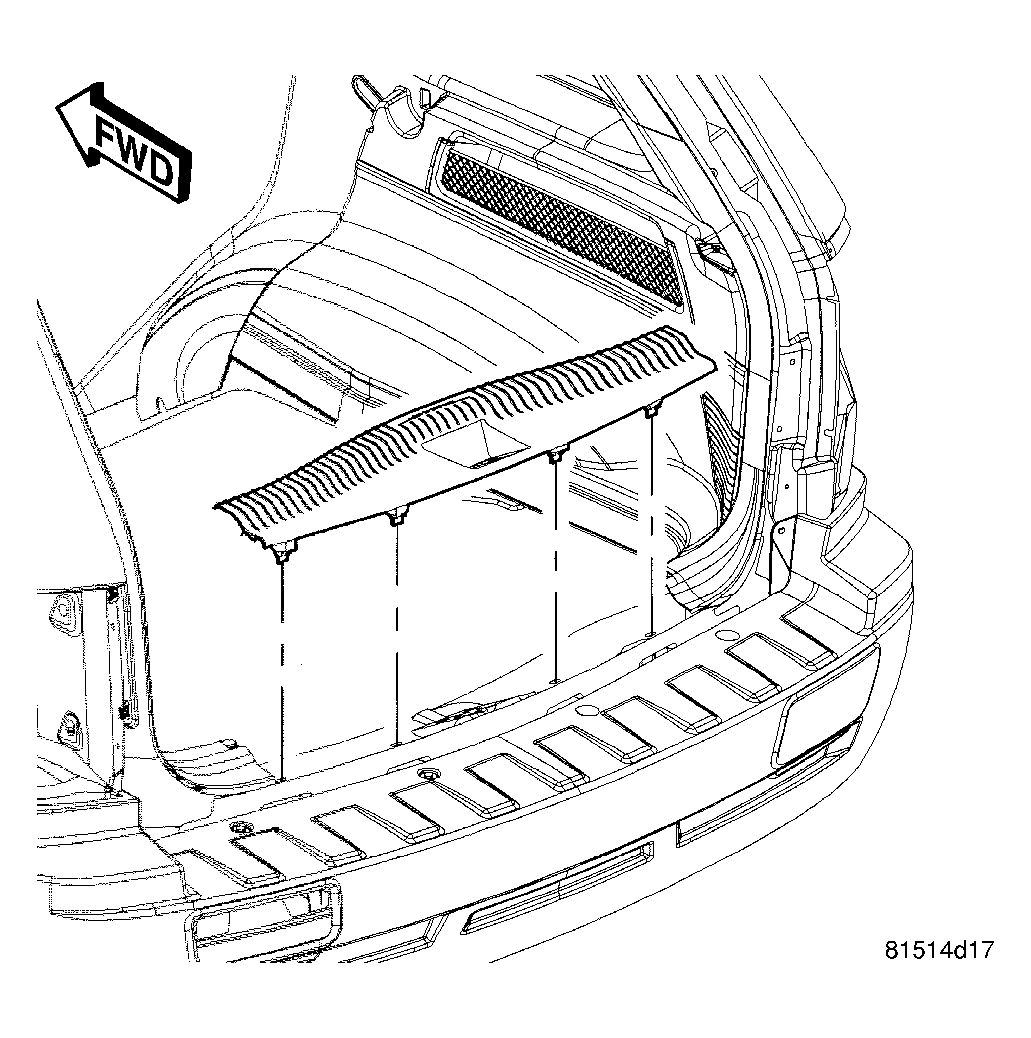

Fig 1: LOWER TRIM MOLDING
GC0027936Courtesy of DAIMLERCHRYSLER CORP.
  1. Using a trim stick C-4755 or equivalent, disengage the retaining tabs that secure the liftgate scuff plate to the liftgate door sill and remove the scuff plate.
