D-Pillar Trim: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: UPPER TRIM MOLDING

Courtesy of DAIMLERCHRYSLER CORP.

Remove the upper liftgate trim panel, (Refer to BODY/INTERIOR/LIFTGATE OPENING UPPER TRIM - REMOVAL) .

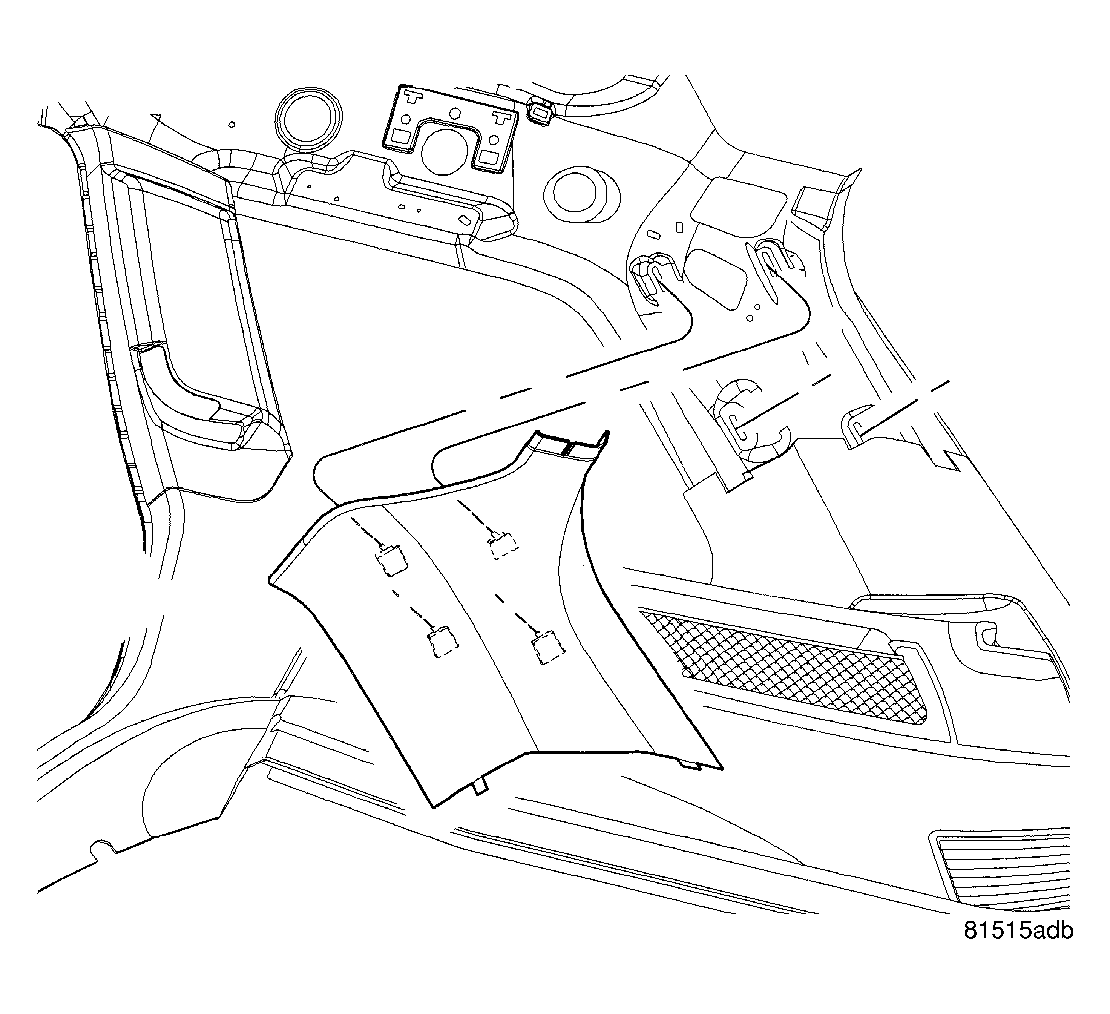

Fig 2: D PILLAR TRIM
Courtesy of DAIMLERCHRYSLER CORP.
Using a trim stick C-4755 or equivalent, disengage the retaining tabs that secure the D-pillar trim panel to the retaining clips in the D-pillar and remove the trim panel.
