Check Strap: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the swing gate trim panel. (Refer to BODY/SWING GATE/TRIM PANEL - REMOVAL) .
Remove the quarter trim panel. (Refer to BODY/INTERIOR/QUARTER TRIM PANEL - REMOVAL) .
Remove the bolts attaching the check strap to the d-pillar. See Fig 1.
Peel back the waterdam.
Remove the nuts and remove the check strap from the swing gate.

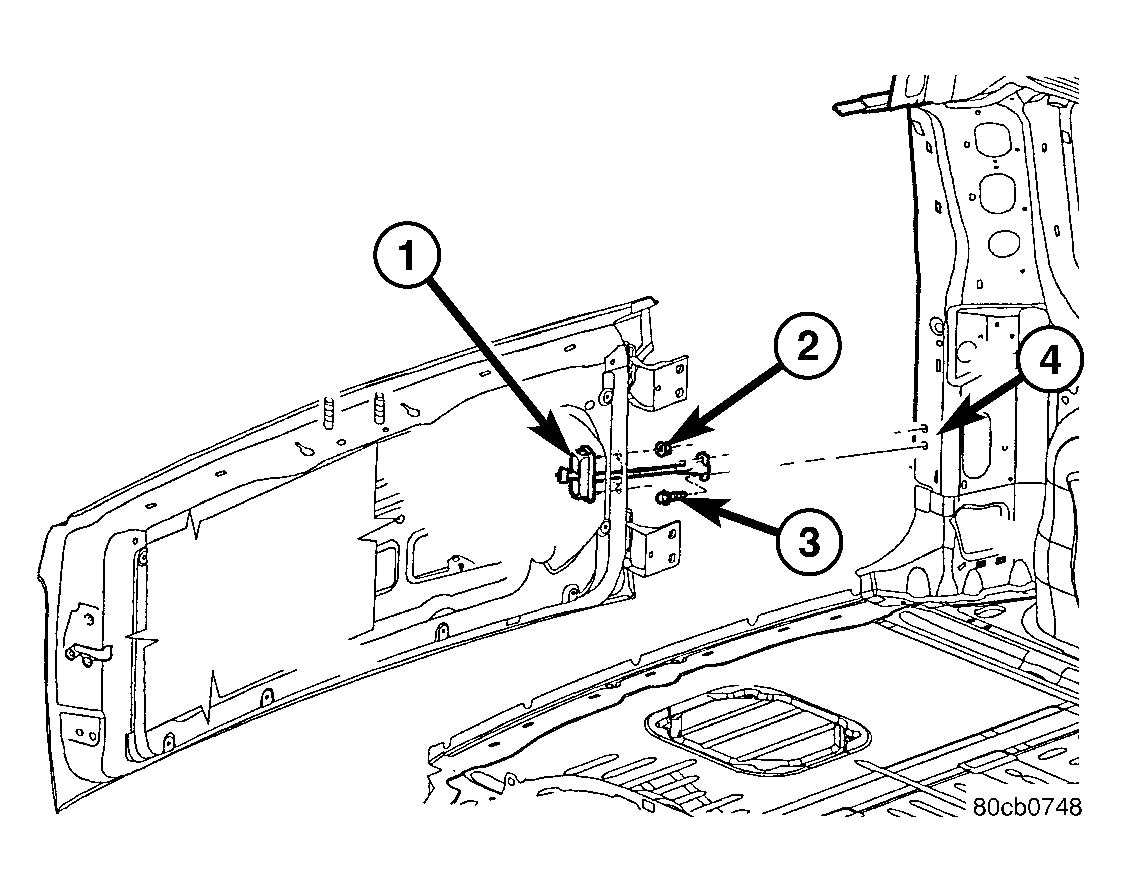

Fig 1: Check Strap

Courtesy of DAIMLERCHRYSLER CORP.

1 - CHECK STRAP

2 - NUTS (2)

3 - BOLTS (2)

4 - D-PILLAR
