Trim Panel: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Using a trim stick C-4829 or equivalent, release the push pin fasteners. See Fig 1.
Lift trim panel up off of the upper trim panel clips

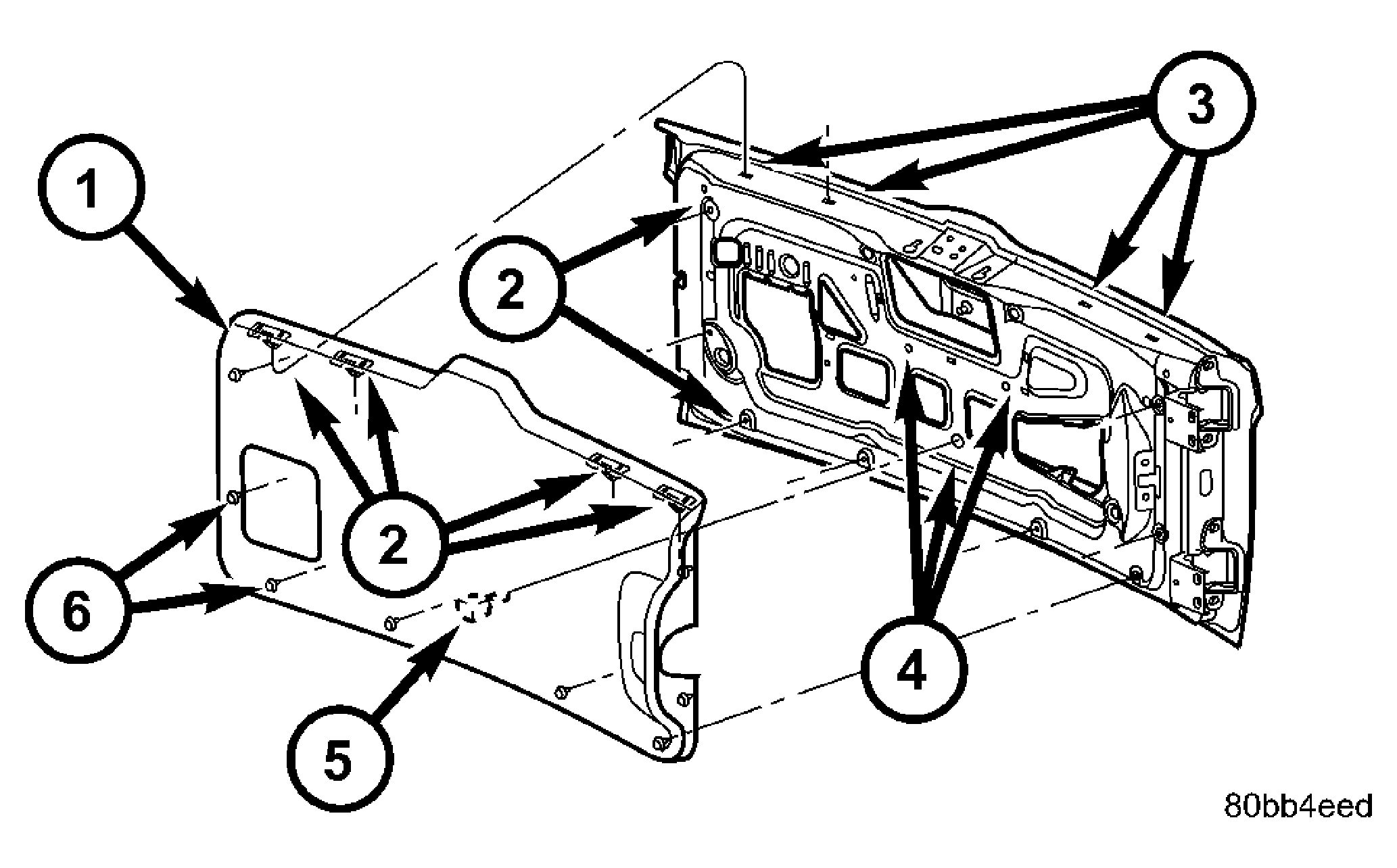

Fig 1: Swing Gate Trim Panel

Courtesy of DAIMLERCHRYSLER CORP.

1 - TRIM PANEL

2 - UPPER TRIM PANEL CLIPS

3 - UPPER TRIM CLIP HOLES

4 - TRIM PANEL LOCATOR HOLES

5 - SWING GATE LOCATOR PINS

6 - PUSH IN FASTENERS
