| Noise from the front/rear suspension |
- Front suspension control arms
- Rear suspension control arms
|
|
- Rear wheel arch damage resulting in audible contact with the rear wheel
- Wheel position in rear wheel arch moved by more than 50mm
- Wheel camber change by more than 10°
- Wheel camber change by more than 10°
- Steering wheel angle misalignment during straight ahead drive greater than 45°
- Steering wheel torque during straight ahead drive at low speed greater than 25nm
|
- The rear suspension has been subjected to an impact more than the capabilities it is designed for, resulting in the toe link fusing
|
  Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLC

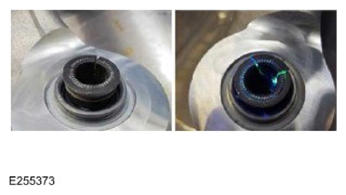

- Inspect the joints on vehicles with a fused toe link (top graphic)

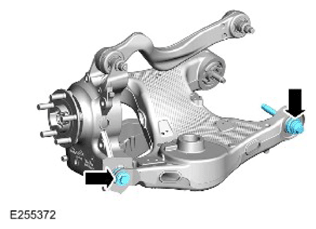

- Inspect the bushes for damage. If found to be damaged install a new rear lower control arm and rear knuckle as necessary (lower graphic)
- Check the wheel bearing and replace as required if the wheel has had a lateral impact
|
| Crabbing |
- Incorrect rear thrust angle
- Front or rear suspension components
|
- Check the rear alignment
- Check the front and rear suspension for signs of damage or wear
|
| Steering misalignment or vehicle Drift/pull/wander |
- Tire pressures incorrect
- Tire wear uneven
- Steering components worn/damaged
- Wheel alignment incorrect
- Brakes binding
|
Perform - "Pinpoint Test A: Steering Wheel Misaligned/Vehicle Pull/Drift". Refer to: STEERING SYSTEM |
| Front bottoming or riding low |
- Damaged suspension components
|
- Check the suspension components for damage
- Check the dynamic suspension
|
| Uneven tire wear |
- Incorrect tire pressure (rapid center rib or inner and outer edge wear)
- Incorrect front or rear toe (rapid inner or outer edge wear)
- Incorrect camber (rapid inner or outer edge wear)
- Tires out of balance (tires cupped or dished)
|
- Check and adjust the tire pressures (see visual inspection)
- Check and adjust the wheel alignment as necessary
- Balance the wheels and tires as necessary
|
| Harsh ride |
- Damaged suspension components
|
- Check the suspension components for damage
- Check the dynamic suspension
|
| Shimmy or Steering Wheel Vibration |
- Wheels/tires
- Loose wheel nut(s)
- Loose front suspension fasteners
- Front wheel bearing(s) fault
- Worn or damaged suspension component bushes
- Loose, worn or damaged ball joint(s)
- Loose, worn or damaged steering components
- Front wheel alignment
|
- Check the wheels and tires for condition and balance Refer to: STEERING WHEEL VIBRATION/SHIMMY WHILE DRIVING
- Check and tighten the wheel nuts and suspension fasteners to specification
- Check the front wheel bearings, suspension bushes, ball joints and steering components for wear or damage
- Check and adjust the wheel alignment as necessary
|
| Poor return ability of the steering (self-centering) |
- Steering column
- Ball joints
- Steering components
|
- Check the steering column universal joints, etc
- Check the ball joints and other steering components
|
| Sway or roll |
- Loose front or rear stabilizer bar
- Worn lower suspension arm stabilizer bar insulators
|
- Check the stabilizer bar security and condition. Rectify as necessary
- Check the function of the active stabilization system (where installed)
|
| Vehicle leans to one side |
- Front or rear suspension components
|
- Check the front and rear suspension
|
