Oil Pump (G1550166): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

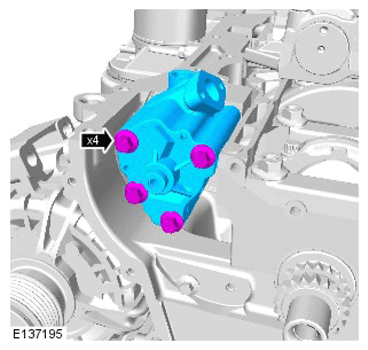

  1. NOTE: Tighten the bolts simultaneously or crosswise.
    G11418420

    Torque Specifications:

    Stage 1: 10 Nm

    Stage 2: 20 Nm

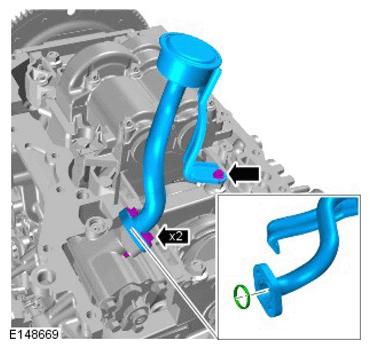

  2. NOTE: Install a new O-ring seal.

    Torque Specification: 10 Nm

    G11418421

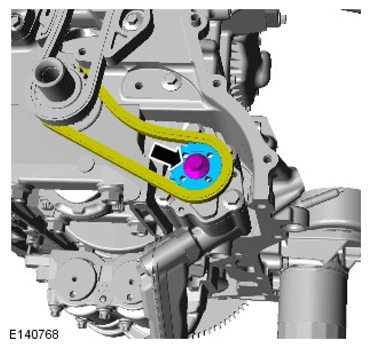

  3. CAUTION: Using a suitable tool, hold the oil pump gear when removing the centre bolt.
    G11418422

    Torque Specification: 25 Nm

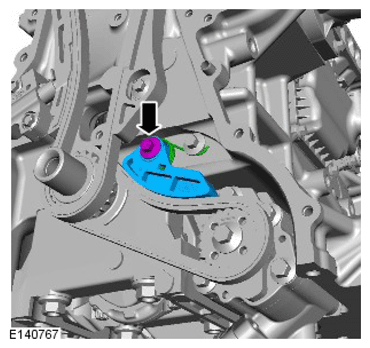

  4. G11418423

    Torque Specification: 10 Nm

  5. Refer to: Oil Pan (Installation ).
  6. Refer to: Timing Cover (Installation ).
  7. Refer to: Battery Disconnect and Connect (General Procedures).
