Timing Cover (G1550168): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

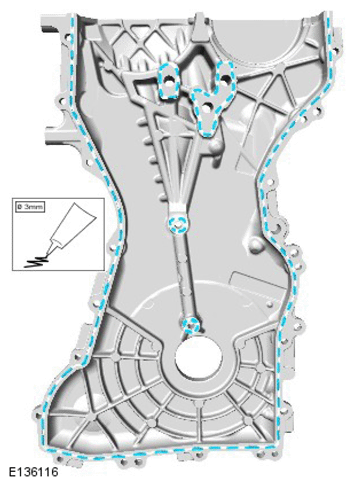

  1. CAUTION: Apply sealant WSE-M4G323-A6 in a 4-7mm diameter on the engine front cover as shown. The component must be installed and tightened within 10 minutes of sealant application.
    G11418446

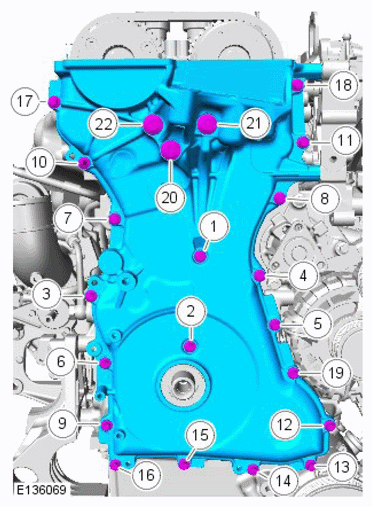

  2. CAUTION: Tighten the bolts in the sequence shown.
    G11418447

    Torque Specifications:

    M6 10 Nm

    M10 48 Nm

  3. To install, reverse the removal procedure.
