Oil Pan (G1550165): Installation
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
-
CAUTION: When removing the sealant from the mating faces, make sure that crankshaft rear seal mating face is not damaged.
Make sure that all traces of the old sealant are removed from the mating surfaces.
-

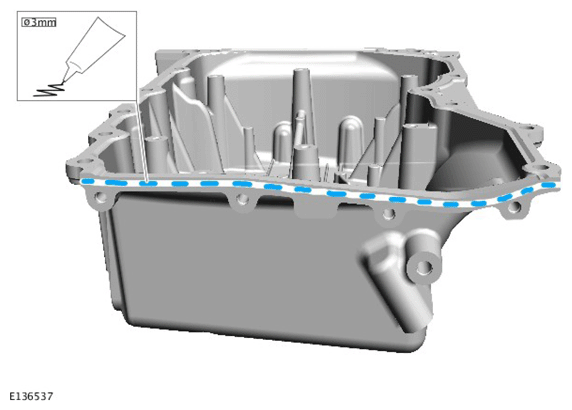

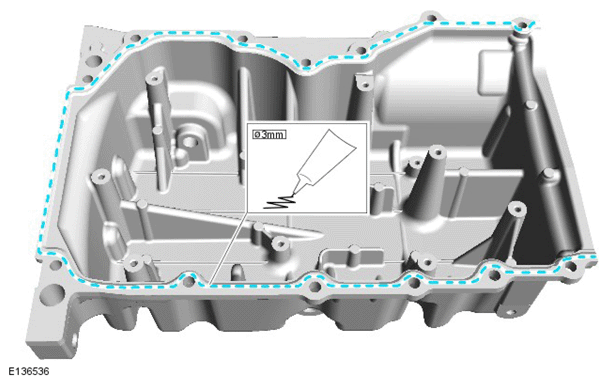

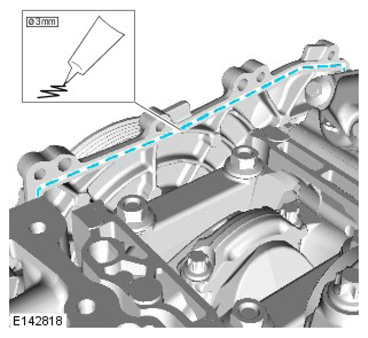

CAUTION: Make sure all mating faces are clean and dry before applying sealant.NOTE: Apply sealant WSE-M4G323-A6 in a 2-3mm diameter on the engine oil sump as shown. The component must be installed and tightened within 10 minutes of sealant application.
-

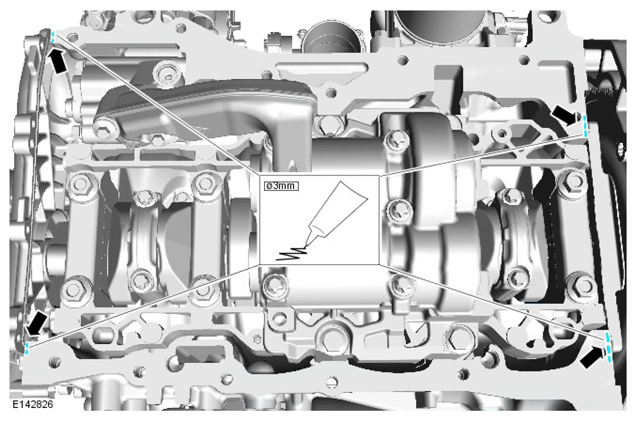

CAUTION: Make sure all mating faces are clean and dry before applying sealant.NOTE: Apply sealant WSE-M4G323-A6 in a 2-3mm diameter on the engine front cover as shown. The component must be installed and tightened within 10 minutes of sealant application.
-
CAUTION: Make sure all mating faces are clean and dry before applying sealant.NOTE: Apply sealant WSE-M4G323-A6 in a 2-3mm diameter on the engine oil sump as shown. The component must be installed and tightened within 10 minutes of sealant application.
-
CAUTION: Make sure all mating faces are clean and dry before applying sealant.NOTE: Apply sealant WSE-M4G323-A6 in a 2-3mm diameter on the engine front cover as shown. The component must be installed and tightened within 10 minutes of sealant application.
-
CAUTION: Extreme care is required during assembly so that the sealant is not smeared. If the sealant is smeared, the mating faces must be cleaned and new sealant must be applied.
-
CAUTION:

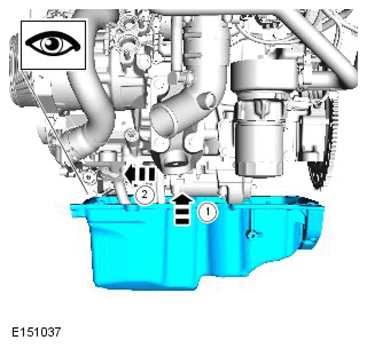

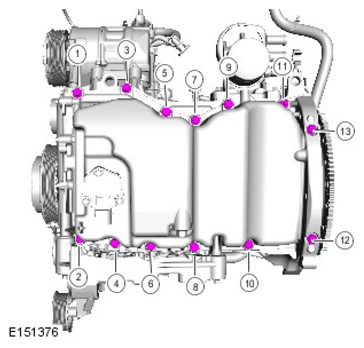

- Tighten the bolts in the sequence shown.
- Only tighten the bolts finger-tight at this stage.
Torque Specification: 10 Nm
-

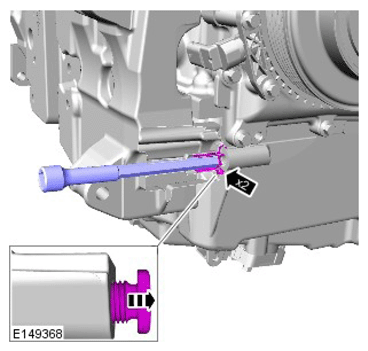

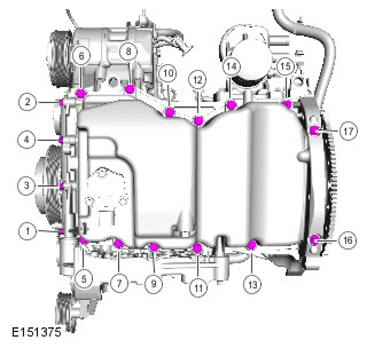

CAUTION: Tighten the bolts in the sequence shown.
Torque Specifications:
Stage 1: 5 Nm
Stage 2: 10 Nm
Stage 3: 20 Nm

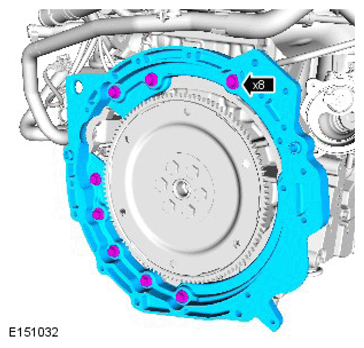

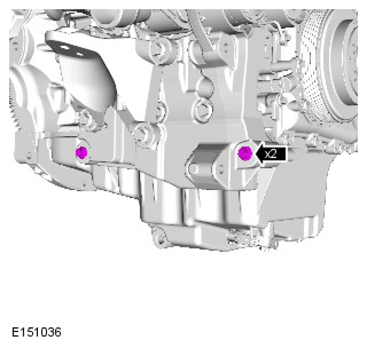

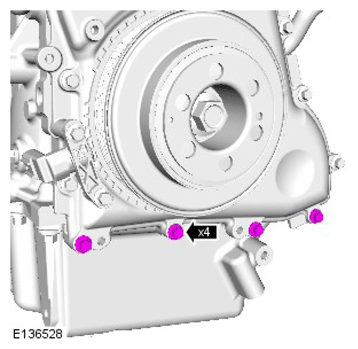

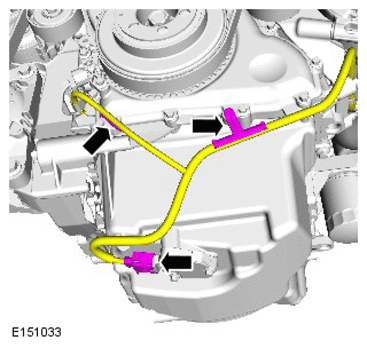

Torque Specification: 6 Nm

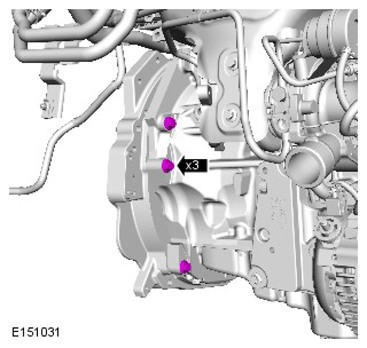

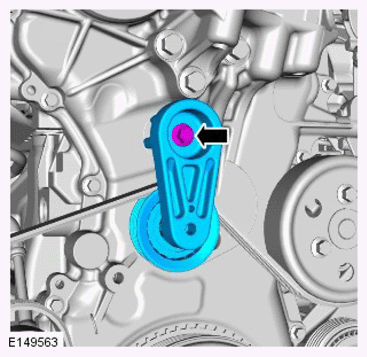

Torque Specification: 25 Nm

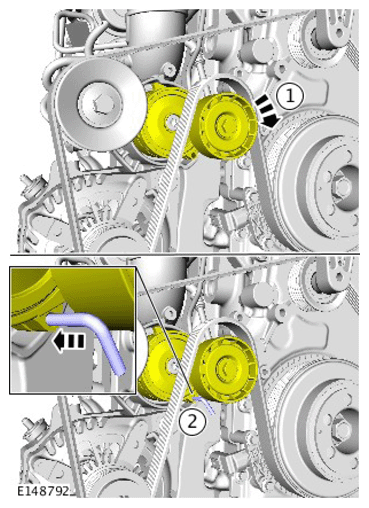

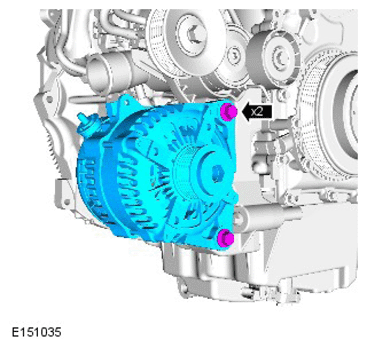

Torque Specification: 48 Nm
Torque Specification: 25 Nm
Torque Specification: 45 Nm
Torque Specification: 45 Nm
-

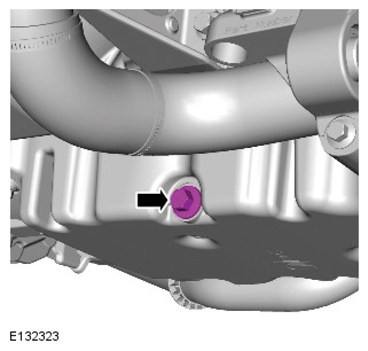

NOTE: Install a new oil pan drain plug.
Torque Specification: 26 Nm

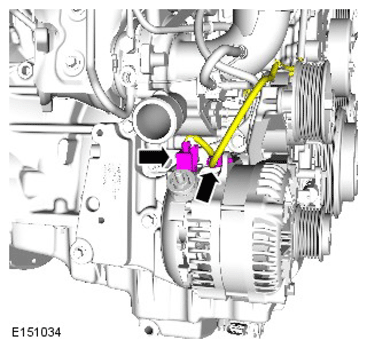

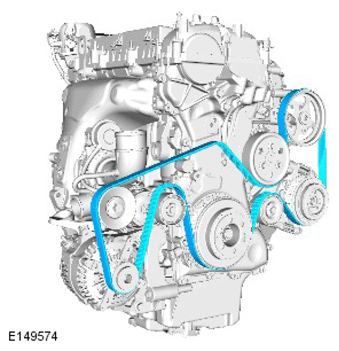

- Refer to: Engine - DESCRIPTION AND OPERATION .
