Input Shaft Seal - GTDI 2.0L Petrol//V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1450191): Installation
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
-
CAUTION: Install a new seal.
Special Tool(s): JLR-308-845
-

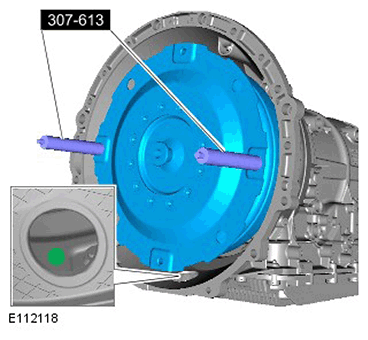

NOTE: Make sure that the painted mark is at the lowest possible point when the first retaining bolt is installed, as shown in illustration.
-

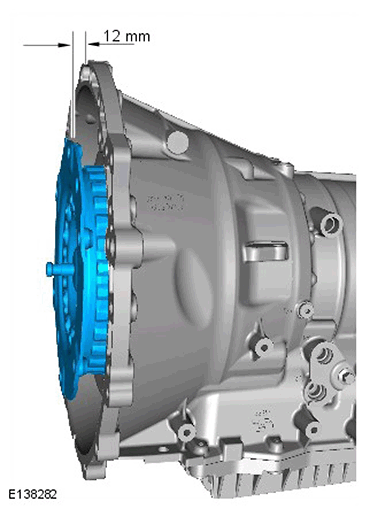

NOTE: Make sure that the torque converter is fully engaged to the transmission.
Refer to Installation (2.0L).
-

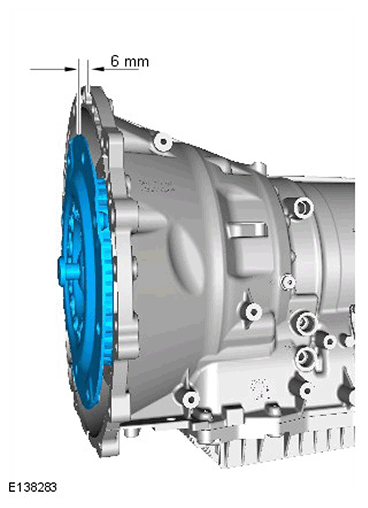

NOTE: Make sure that the torque converter is fully engaged to the transmission.
Refer to Installation (3.0L).
- Connect the battery ground cable.
Refer to Battery Disconnect and Connect .
- Refer to Transmission Fluid Level Check (General Procedures).
