Transmission - GTDI 2.0L Petrol (G1571838): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transmission removed for clarity.
  • Remove and discard the blanking caps.

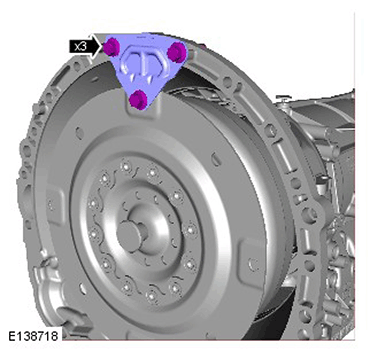

  1. NOTE: This step is only required if a new component is installed.
    G11417456

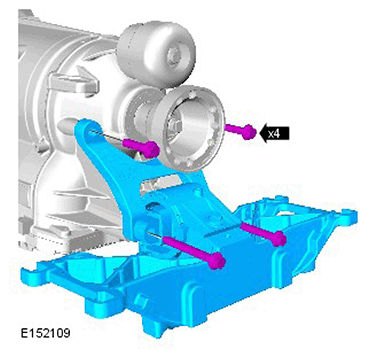

  2. NOTE: This step is only required if previously removed.
    G11417457

    Torque Specification: 48 Nm

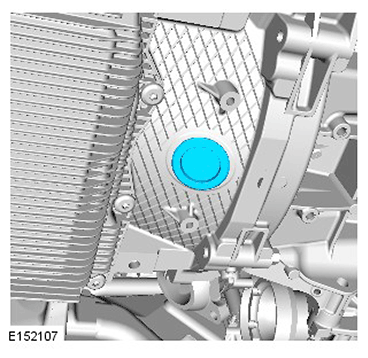

  3. NOTE: This step is only required if previously removed.
    G11417458

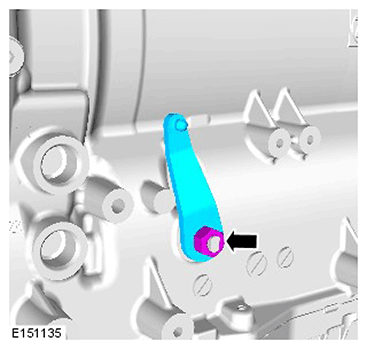

  4. NOTE: This step is only required if previously removed.
    G11417459

    Torque Specification: 12 Nm

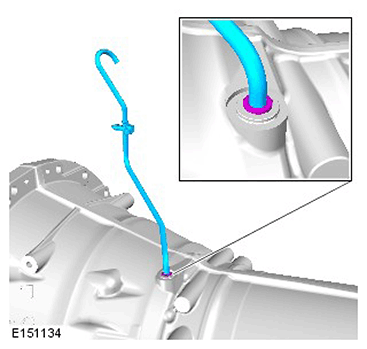

  5. CAUTION: Make sure new components are installed.
    G11417460
    • To prevent water ingress and subsequent transmission damage, make sure that the breather is fully pushed home into the transmission casing. The white line around the circumference of the pipe should not be visible when correctly installed.

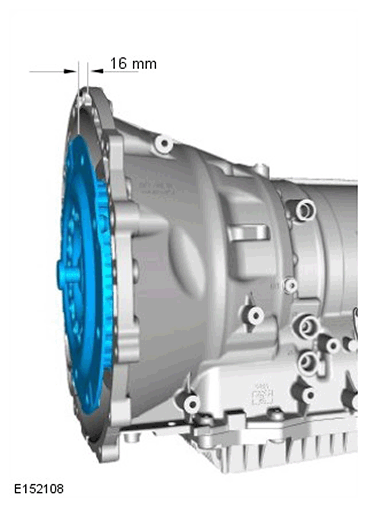

  6. NOTE: Make sure that the torque converter is fully engaged to the transmission.
    G11417461

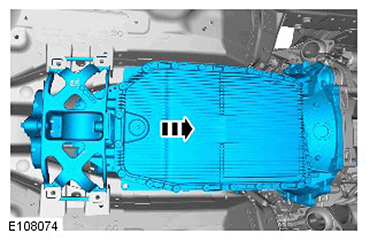

  7. WARNING:
    • This step requires the aid of another technician.
    • Make sure that the transmission is secured with suitable retaining straps.
    CAUTION:
    • Make sure that the torque converter remains in the transmission.
    • Apply grease of the correct specification to the torque converter spigot.
    G11417462

    Raise the powertrain assembly jack and transmission assembly.

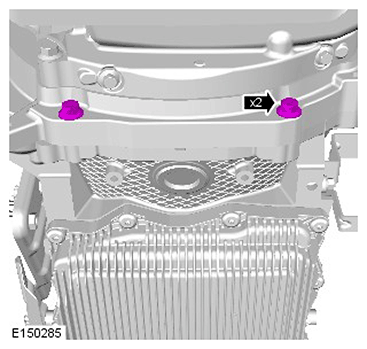

  8. G11417463

    Torque Specification: 48 Nm

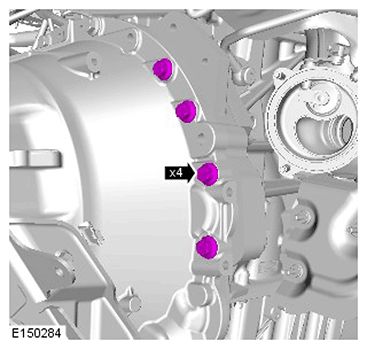

  9. G11417464

    Torque Specification: 48 Nm

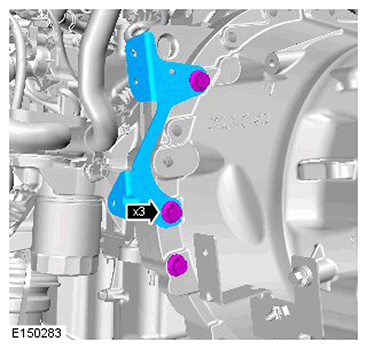

  10. G11417465

    Torque Specification: 48 Nm

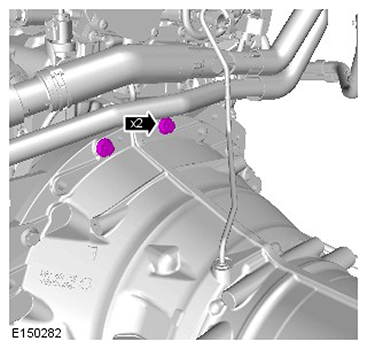

  11. G11417466

    Torque Specification: 48 Nm

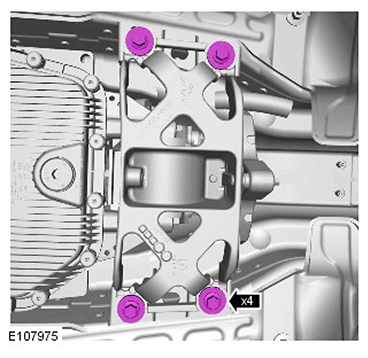

  12. G11417467

    Torque Specification: 45 Nm

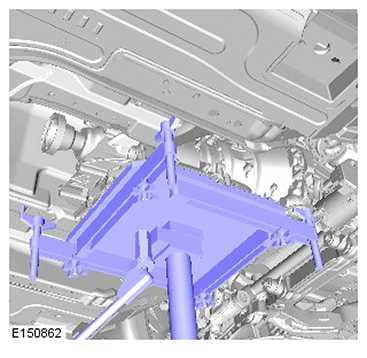

  13. G11417468

    Remove the support.

    General Equipment:  Transmission jack

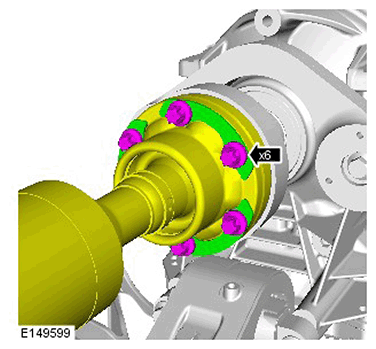

  14. CAUTION: Make sure that new bolts are installed.
    NOTE: Make sure that you re-align the driveshaft to the transmission flange using the alignment mark.
    G11417469

    Torque Specification: 75 Nm

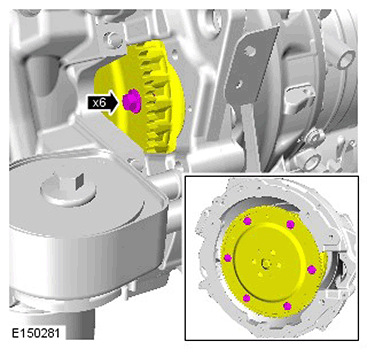

  15. CAUTION: Only rotate the crankshaft clockwise.
    G11417470

    Torque Specification: 60 Nm

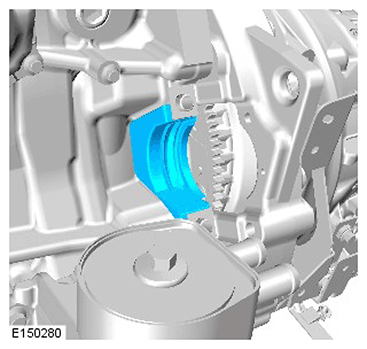

  16. G11417471

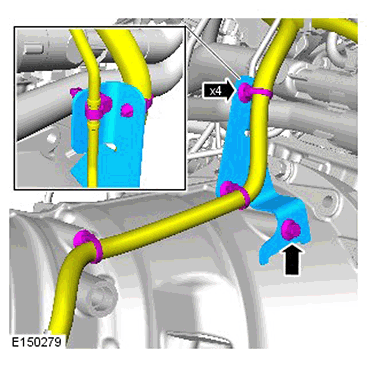

  17. G11417472

    Torque Specification: 10 Nm

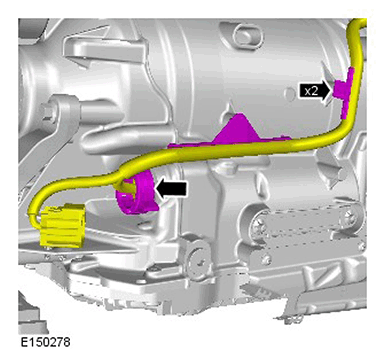

  18. G11417473

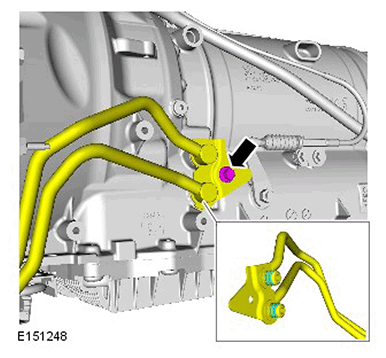

  19. NOTE: The O-ring seals are to be reused unless damaged.
    G11417474

    Torque Specification: 23 Nm

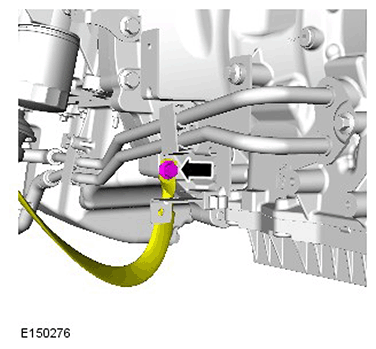

  20. G11417475

    Torque Specification: 48 Nm

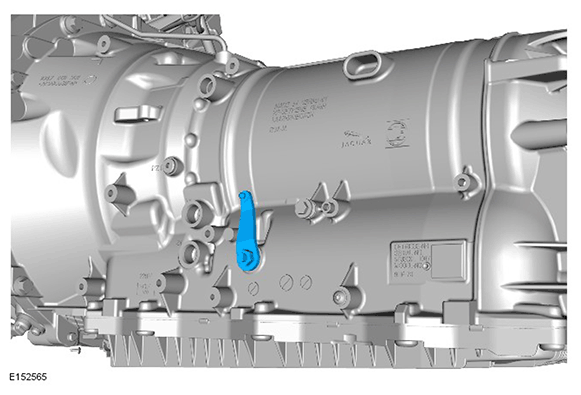

  21. CAUTION: Remove the cable tie.
    G11417476

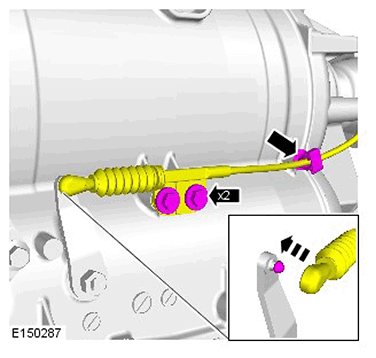

  22. NOTE: Install a new retaining clip.
    G11417477

    Torque Specification: 11 Nm

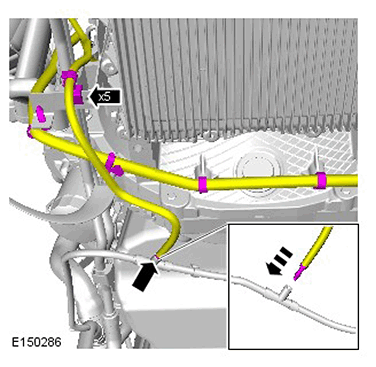

  23. G11417478

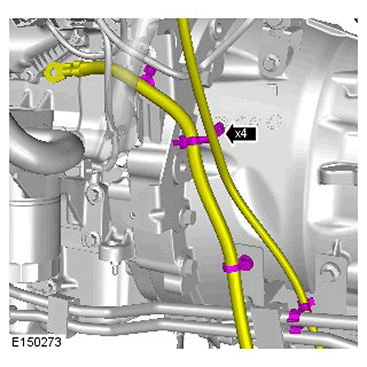

  24. G11417479

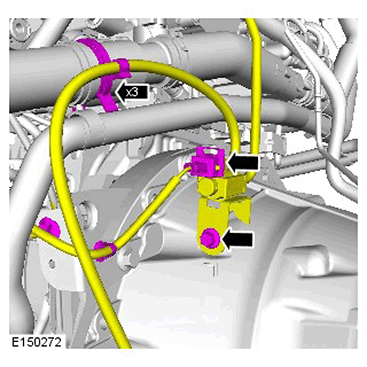

  25. G11417480

    Torque Specification: 10 Nm

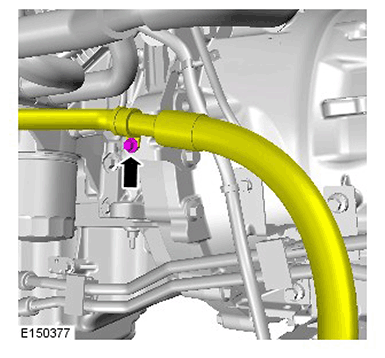

  26. G11417481

    Torque Specification: 12 Nm

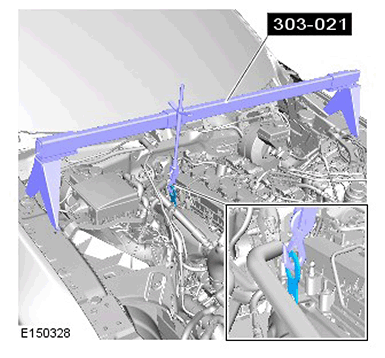

  27. G11417482

    Special Tool(s):  303-021

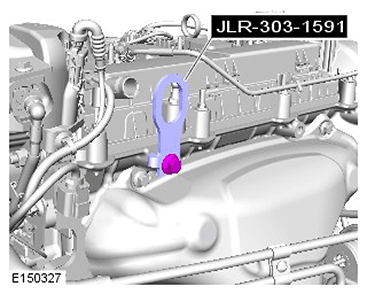

  28. G11417483

    Special Tool(s):  JLR-303-1591

  29. Refer to Starter Motor (GTDi 2.0L Petrol, Removal and Installation).
  30. Refer to Exhaust System (GTDi 2.0L Petrol, Removal and Installation).
  31. Refer to Engine Cover - GTDi 2.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
  32. Refer to Battery Disconnect and Connect (General Procedures).
  33. Carry out a transmission fluid level check.

    Refer to Transmission Fluid Drain and Refill  (General Procedures).
