Transmission - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1571839): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transmission removed for clarity.
  • Remove and discard the blanking caps.

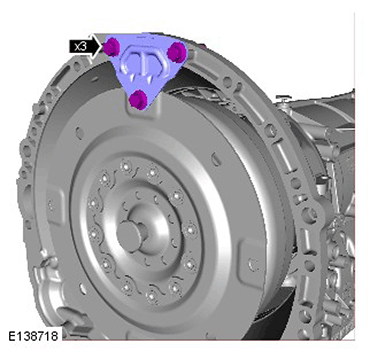

  1. NOTE: This step is only required if a new component is installed.
    G11417499

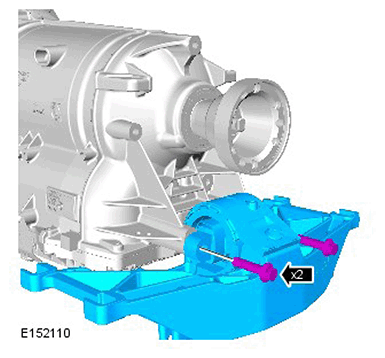

  2. NOTE: This step is only required if previously removed.
    G11417500

    Torque Specification: 48 Nm

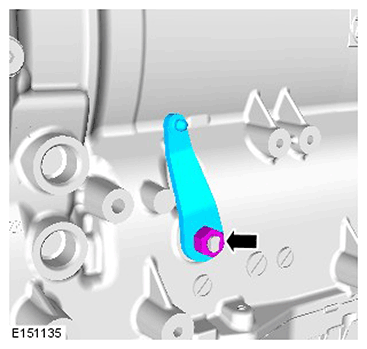

  3. NOTE: This step is only required if previously removed.
    G11417501

    Torque Specification: 12 Nm

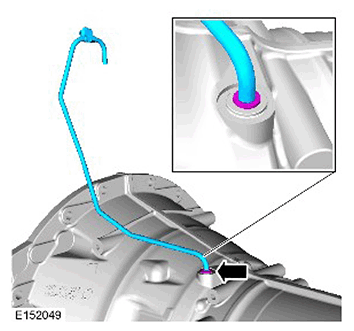

  4. CAUTION: To prevent water ingress and subsequent transmission damage, make sure that the breather is fully pushed home into the transmission casing. The white line around the circumference of the pipe should not be visible when correctly installed.
    G11417502

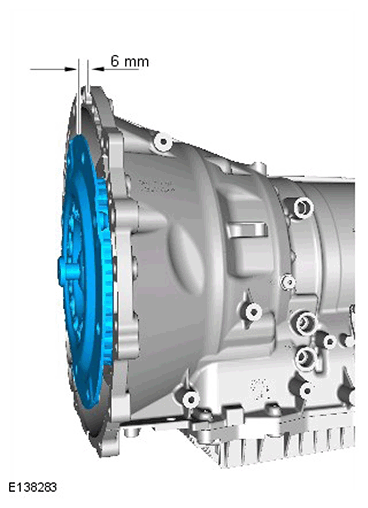

  5. NOTE: Make sure that the torque converter is fully engaged to the transmission.
    G11417503
  6. WARNING:
    • This step requires the aid of another technician.
    • Make sure that the transmission is secured with suitable retaining straps.
    CAUTION:
    • Make sure that the torque converter remains in the transmission.
    • Apply grease of the correct specification to the torque converter spigot.

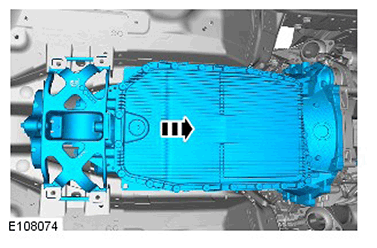

    G11417504

    Raise the powertrain assembly jack and transmission assembly.

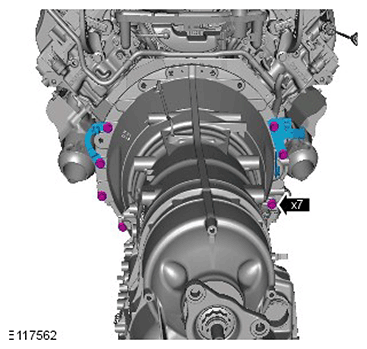

  7. G11417505

    Torque Specification: 48 Nm

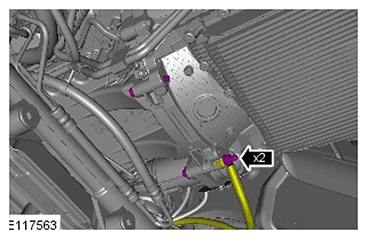

  8. G11417506

    Torque Specification: 48 Nm

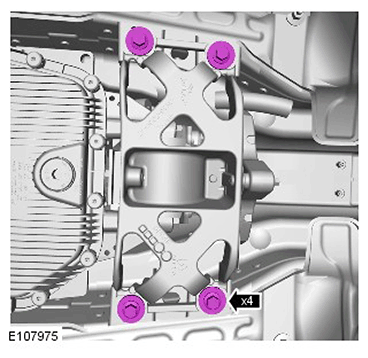

  9. G11417507

    Torque Specification: 45 Nm

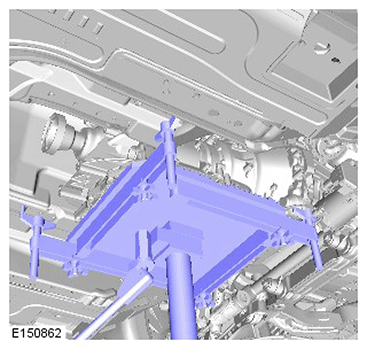

  10. G11417508

    Remove the support.

    General Equipment:  Transmission jack

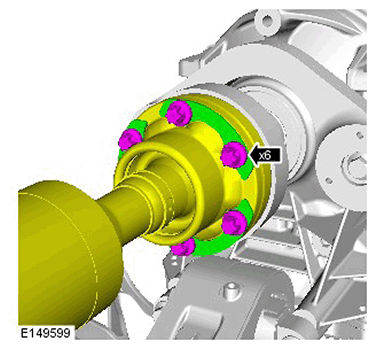

  11. CAUTION: Make sure that new bolts are installed.
    CAUTION: Make sure that you re-align the driveshaft to the transmission flange using the alignment mark.
    G11417509

    Torque Specification: 75 Nm

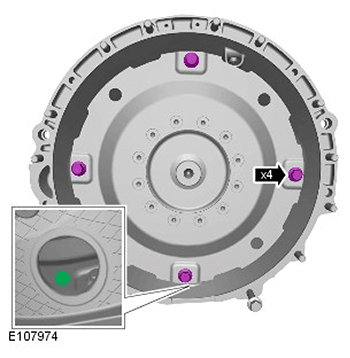

  12. CAUTION: Only rotate the crankshaft clockwise.
    NOTE: Make sure that the alignment mark is visable through the inspection hole as illustrated.
    G11417510

    Torque Specification: 63 Nm

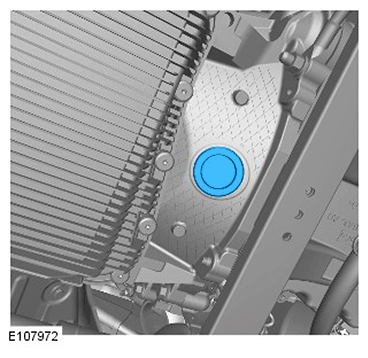

  13. G11417511

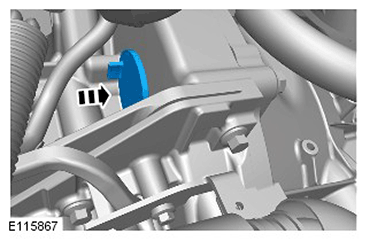

  14. G11417512

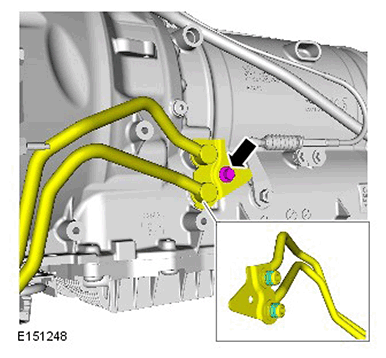

  15. NOTE: The O-ring seals are to be reused unless damaged.
    G11417513

    Torque Specification: 23 Nm

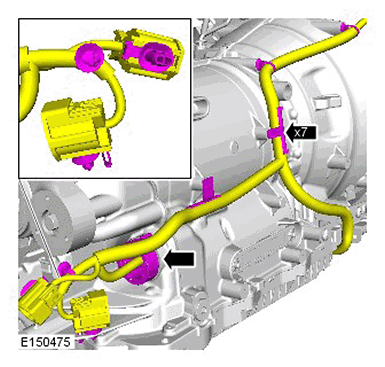

  16. G11417514

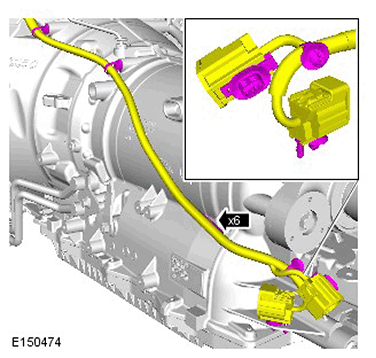

  17. G11417515

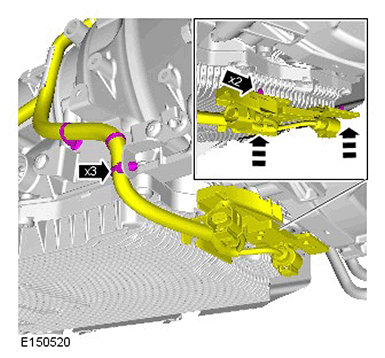

  18. G11417516

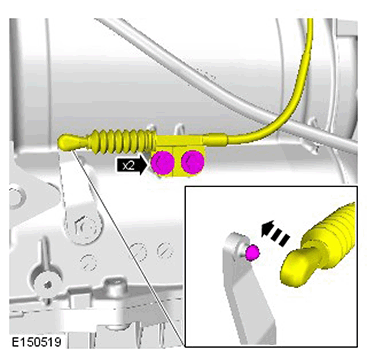

  19. G11417517

    Torque Specification: 11 Nm

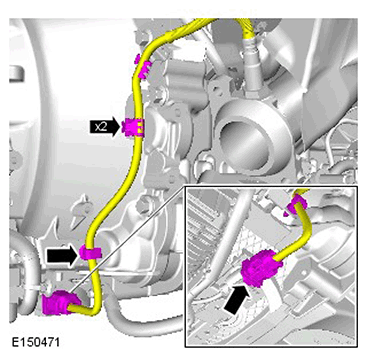

  20. G11417518

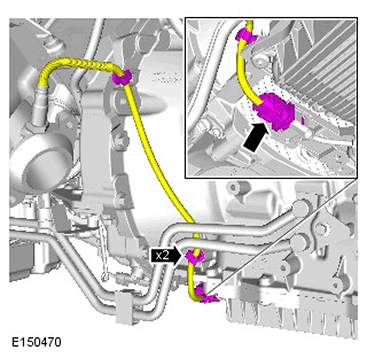

  21. G11417519
  22. Refer to Exhaust System - RWD (V6 S/C 3.0L Petrol, Removal and Installation).

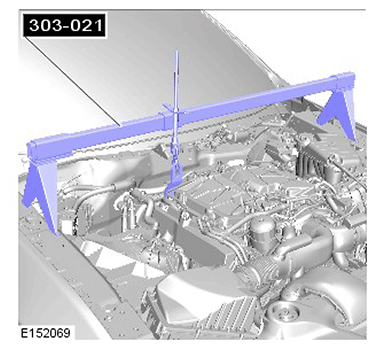

  23. G11417520

    Special Tool(s):  303-021

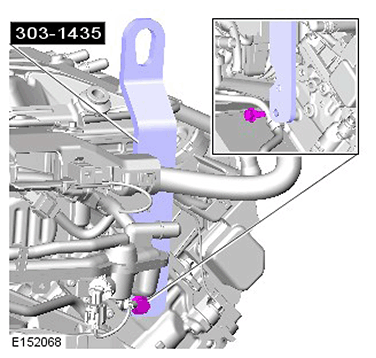

  24. G11417521

    Special Tool(s):  303-1435

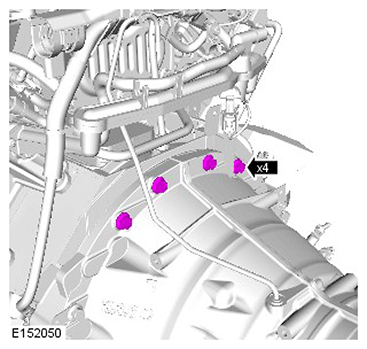

  25. G11417522

    Torque Specification: 48 Nm

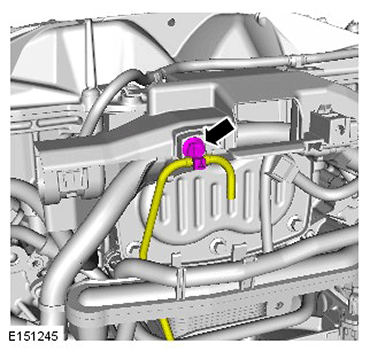

  26. G11417523
  27. Refer to Cowl Vent Screen (Front End Body Panels, Removal and Installation).
  28. Refer to Engine Cover - V6 S/C 3.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).

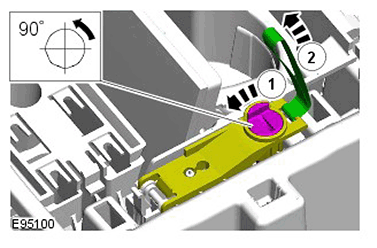

  29. G11417524

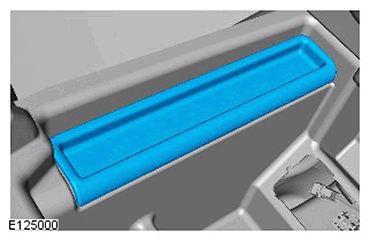

  30. G11417525
  31. Refer to Battery Disconnect and Connect (General Procedures).
  32. Carry out a transmission fluid level check.

    Refer to Transmission Fluid Level Check  (General Procedures).
