Console Storage Bin Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

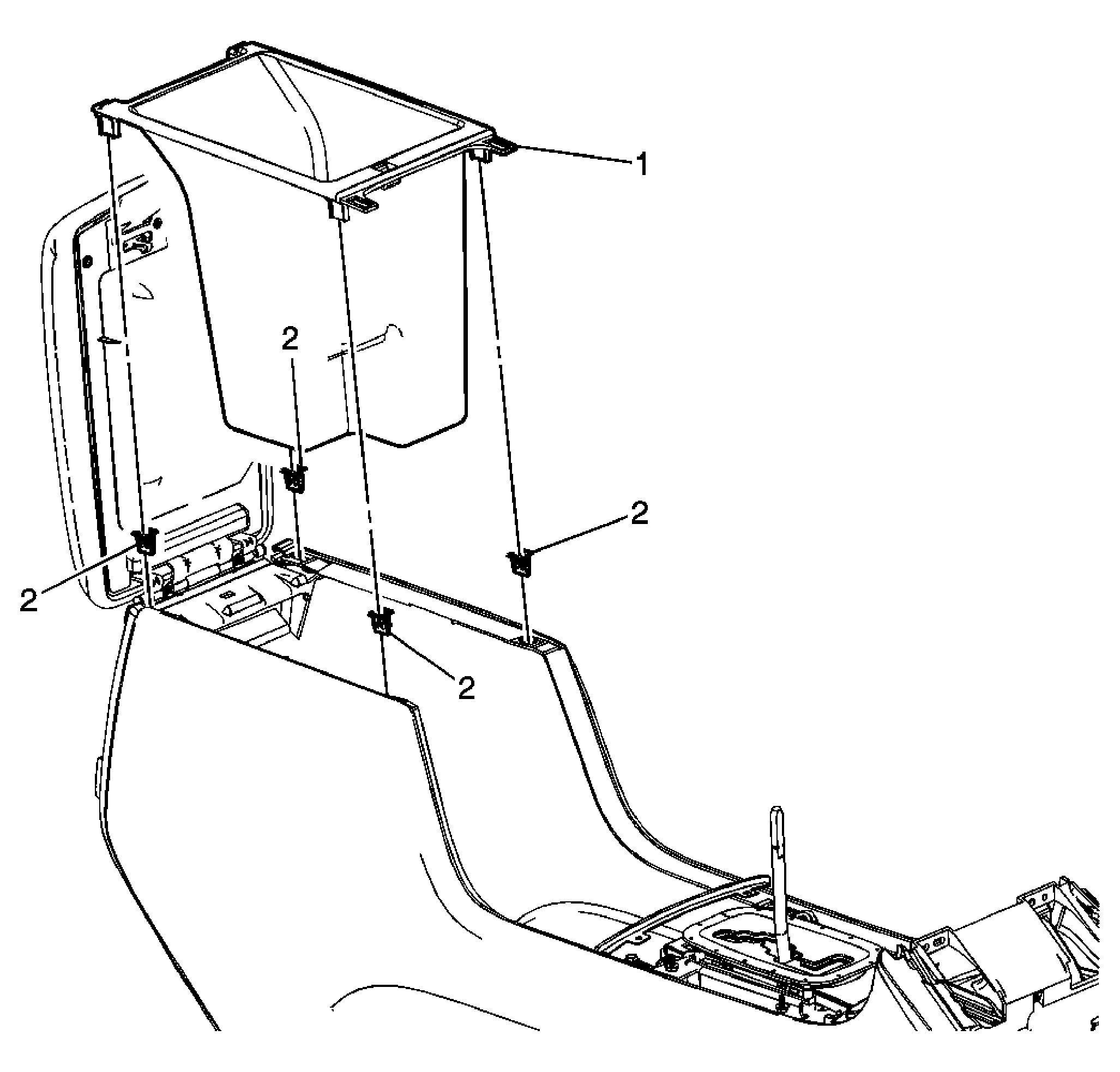

Fig 1: Removing/Installing Console Storage Bin
GM1593688Courtesy of GENERAL MOTORS CORP.
Console Storage Bin Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the front floor console cupholder. Refer to Front Floor Console Cup Holder Replacement .
1 Bin Assembly, Front Floor Console.
Refer to Instrument Panel Compartment Door Latch Replacement .
2 Clip, Retainer (Qty: 4)
