Instrument Panel Compartment Door Latch Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

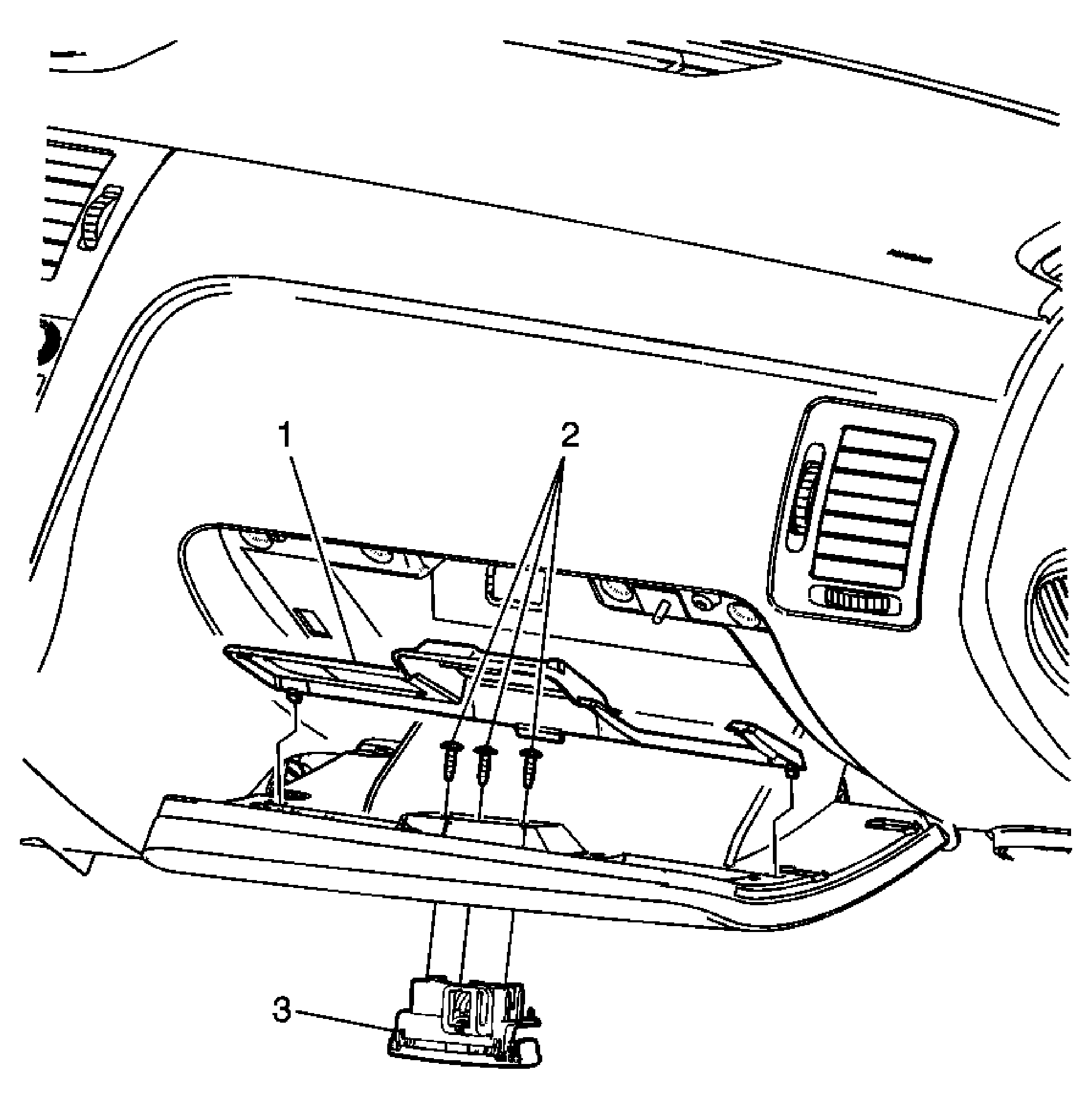

Fig 1: Latch - Instrument Panel (I/P) Compartment
GM1592932Courtesy of GENERAL MOTORS CORP.
Instrument Panel Compartment Door Latch Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the instrument panel compartment door inner panel. Refer to Instrument Panel Compartment Inner Panel Replacement .
1 Instrument Panel Compartment Latch Screws (Qty: 3)

Tighten:  2 N.m (18 lb in)
2 Instrument Panel Compartment Latch Assembly
