Front Floor Console Cup Holder Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

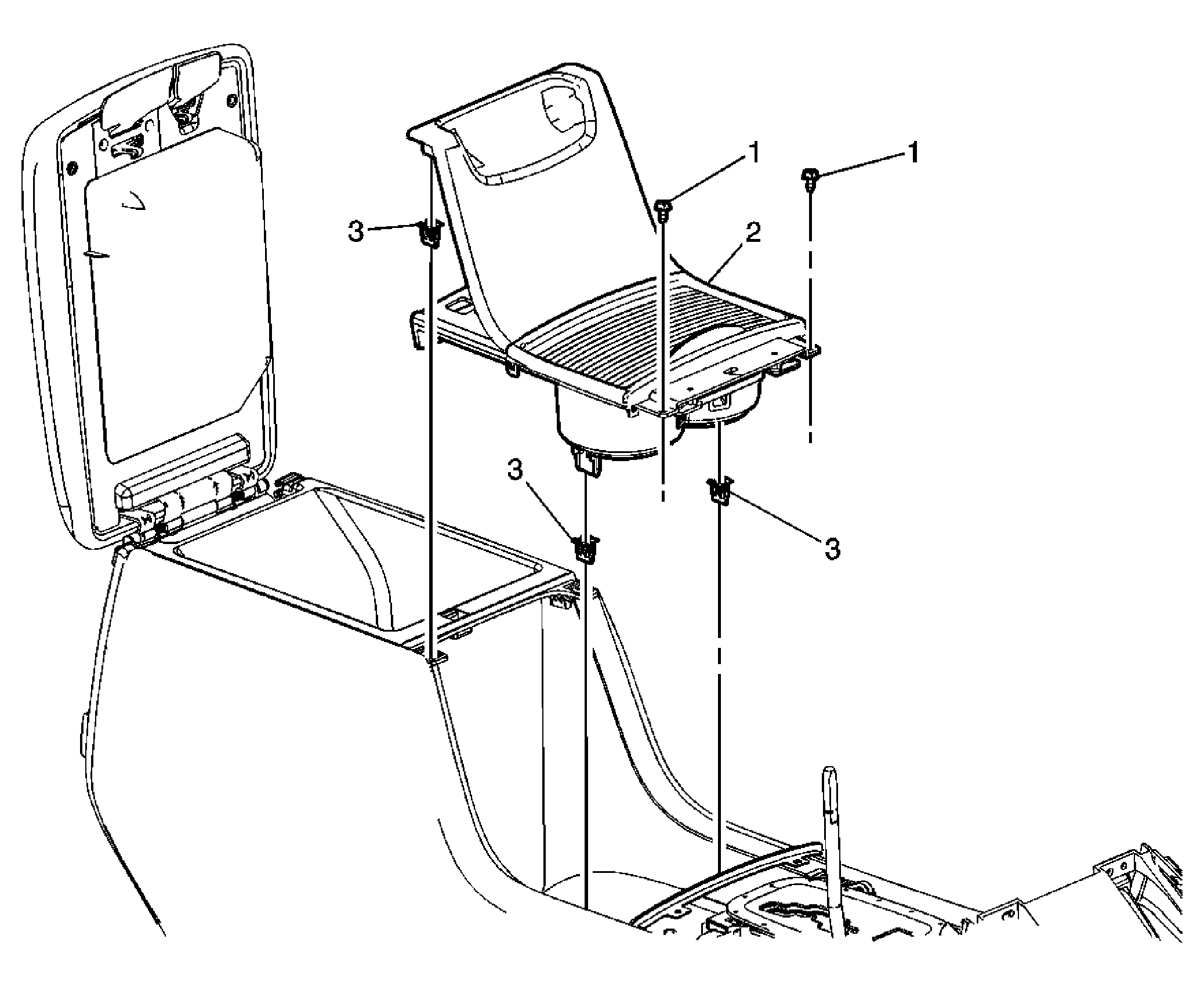

Fig 1: Front Floor Console Cup Holder Replacement
GM1593691Courtesy of GENERAL MOTORS CORP.
Front Floor Console Cup Holder Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front floor console trim panel. Refer to Front Floor Console Trim Plate Replacement .
1 Screw, Front Floor Console Cupholder (Qty: 2)

Tighten:  2 N.m (18 lb in)
2 Cupholder Assembly, Front Floor Console
3 Clip, Retainer (Qty: 4)
