Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

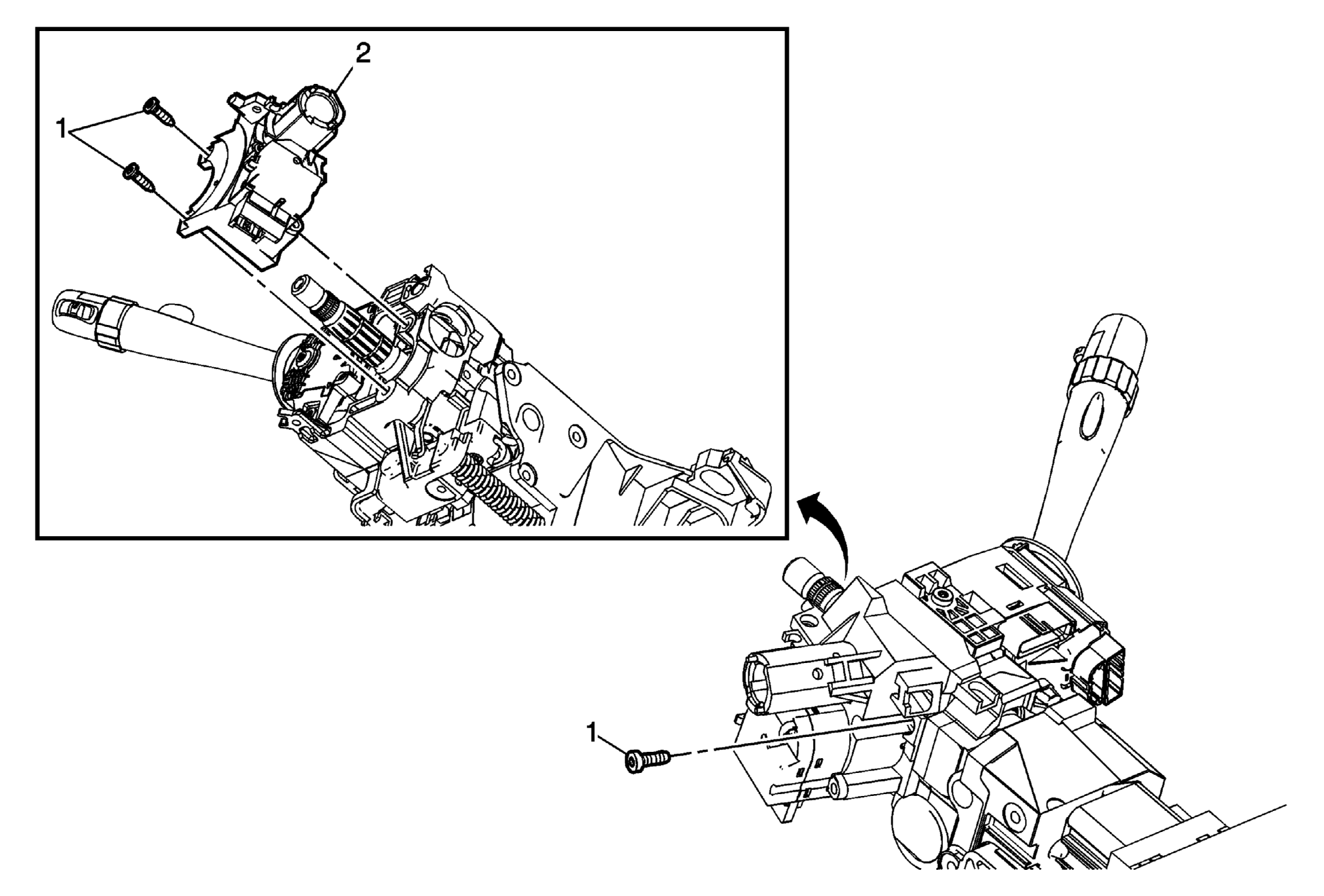

Fig 1: View Of Turn Signal Switch Housing & Steering Column Shaft Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Remove the ignition and start switch. Refer to Ignition and Start Switch Replacement If equipped with AN3, disconnect the park lock cable. Refer to TRANSMISSION CONTROL MODULE REPLACEMENT Remove the turn signal multifunction switch. Refer to TURN SIGNAL MULTIFUNCTION SWITCH REPLACEMENT Remove the turn signal cancel cam and steering shaft upper bearing spring. Refer to TURN SIGNAL CANCEL CAM AND STEERING SHAFT UPPER BEARING SPRING REPLACEMENT
1	Ignition Lock Cylinder Case Bolt (Qty: 2) NOTE: Refer to Fastener Notice in the Preface section. Tighten 7 N.m (62 lb in)
2	Ignition Lock Cylinder Case

Callout

Component Name

Remove the ignition and start switch. Refer to Ignition and Start Switch Replacement
If equipped with AN3, disconnect the park lock cable. Refer to TRANSMISSION CONTROL MODULE REPLACEMENT
Remove the turn signal multifunction switch. Refer to TURN SIGNAL MULTIFUNCTION SWITCH REPLACEMENT
Remove the turn signal cancel cam and steering shaft upper bearing spring. Refer to TURN SIGNAL CANCEL CAM AND STEERING SHAFT UPPER BEARING SPRING REPLACEMENT

Ignition Lock Cylinder Case Bolt (Qty: 2)

NOTE: Refer to Fastener Notice in the Preface section.

Tighten

7 N.m (62 lb in)

Ignition Lock Cylinder Case
