Ignition and Start Switch Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

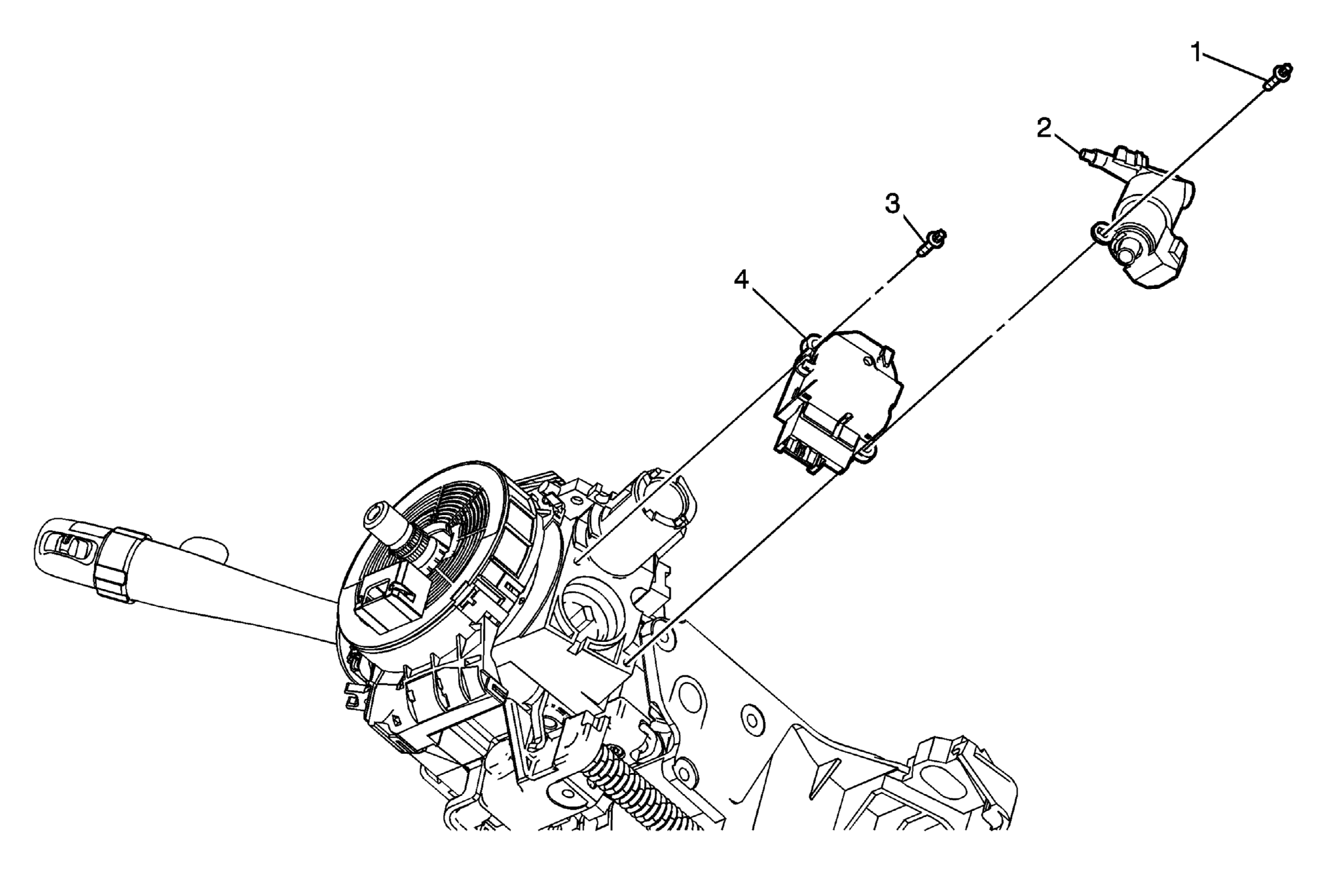

Fig 1: Ignition and Start Switch Replacement

Courtesy of GENERAL MOTORS CORP.

Callouts	Component Name
Preliminary Procedure Remove the theft deterrent module. Refer to THEFT DETERRENT MODULE REPLACEMENT
1	Ignition and Start Switch Bolt NOTE: Refer to Fastener Notice in the Preface section. Tighten 1.5 N.m (13 lb in)
2	Steering Wheel Theft Deterrent Lock Tip The steering wheel theft deterrent lock is not present on vehicles with AN3.
3	Ignition and Start Switch Bolt Tighten 1.5 N.m (13 lb in)
4	Ignition and Start Switch Procedure Disconnect any electrical connectors as needed. Disconnect the key in ignition switch from the ignition lock cylinder case.
