Turn Signal Multifunction Switch Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

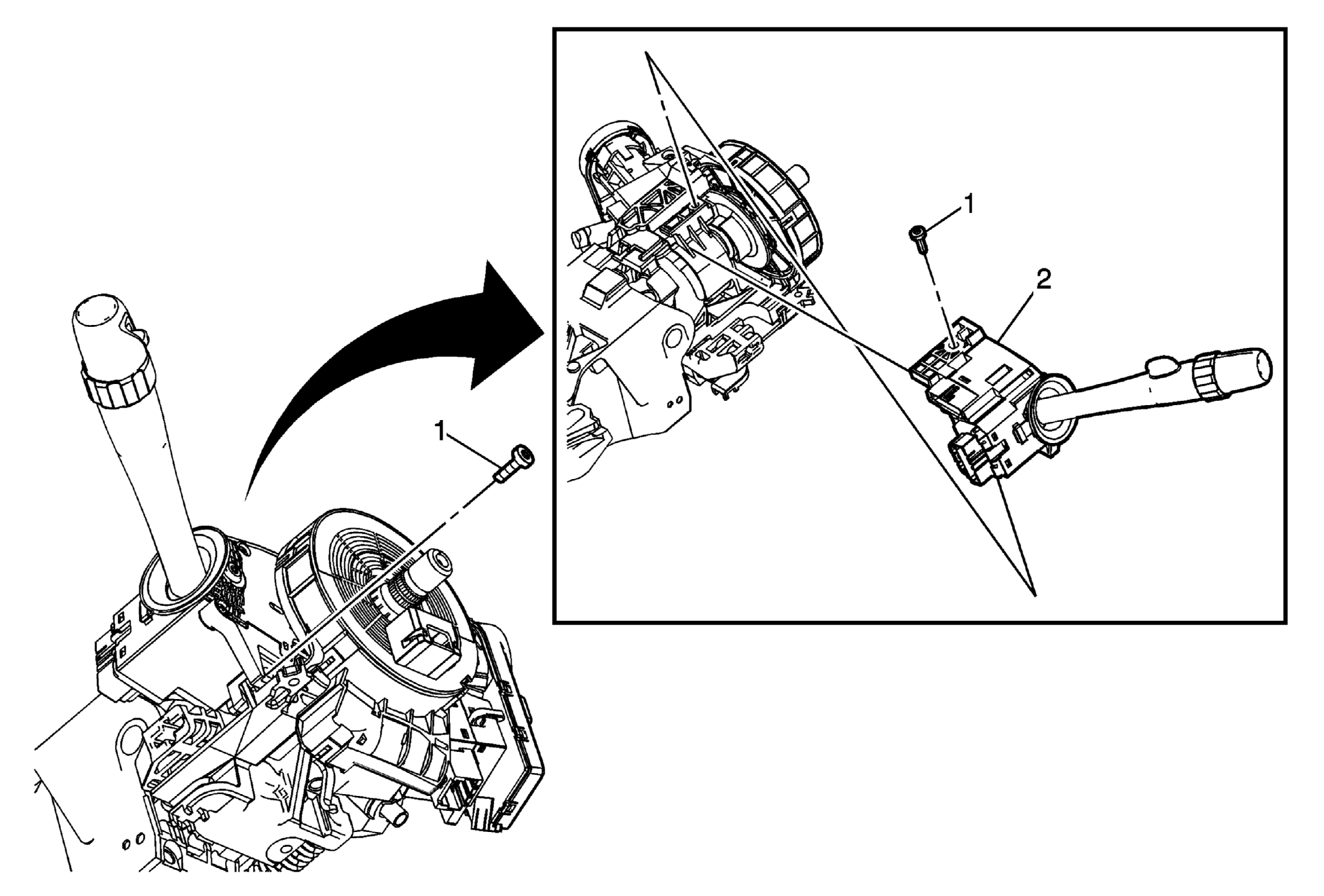

Fig 1: View of Turn Signal Multifunction Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
1	Turn Signal Multifunction Switch Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten 7 N.m (62 lb in)
2	Turn Signal Multifunction Switch Procedure Disconnect any electrical connectors as needed.

Callout

Component Name

Preliminary Procedure
Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement .

Turn Signal Multifunction Switch Bolt (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten

7 N.m (62 lb in)

Turn Signal Multifunction Switch

Procedure

Disconnect any electrical connectors as needed.
