Door Lock Cylinder Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

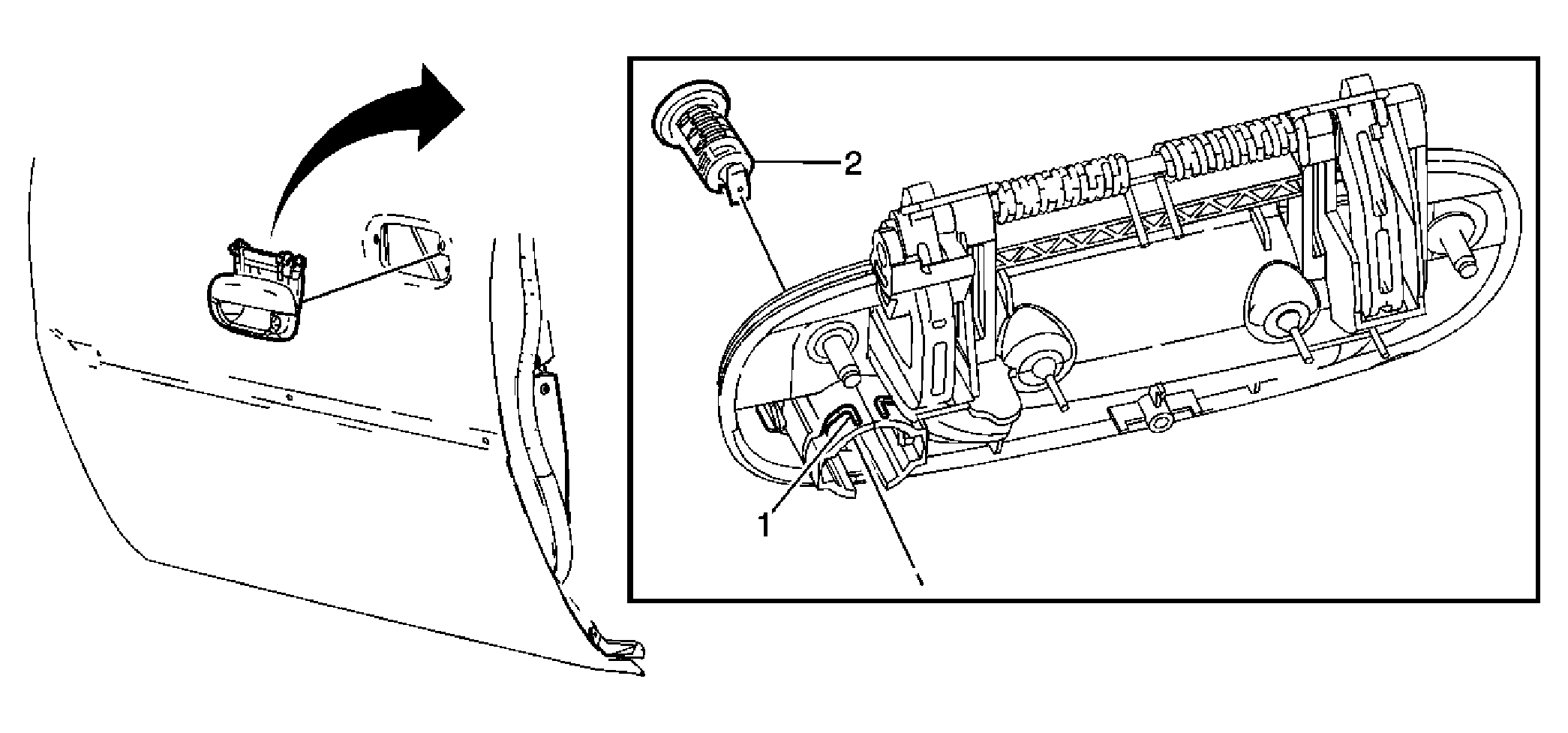

Fig 1: Lock Cylinder Replacement - Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement . Remove the front outside door handle. Refer to Door Handle Replacement - Front Outside .
1	Clip, Lock Cylinder Retainer Tip: Remove arm from the back lock cylinder before removing the cylinder from the handle. Release the clip to remove the lock cylinder from the handle.
2	Cylinder, Front Door Lock

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
Remove the front outside door handle. Refer to Door Handle Replacement - Front Outside .

Clip, Lock Cylinder Retainer
Tip:

Remove arm from the back lock cylinder before removing the cylinder from the handle.
Release the clip to remove the lock cylinder from the handle.

Cylinder, Front Door Lock
