Rear Floor Panel Carpet Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

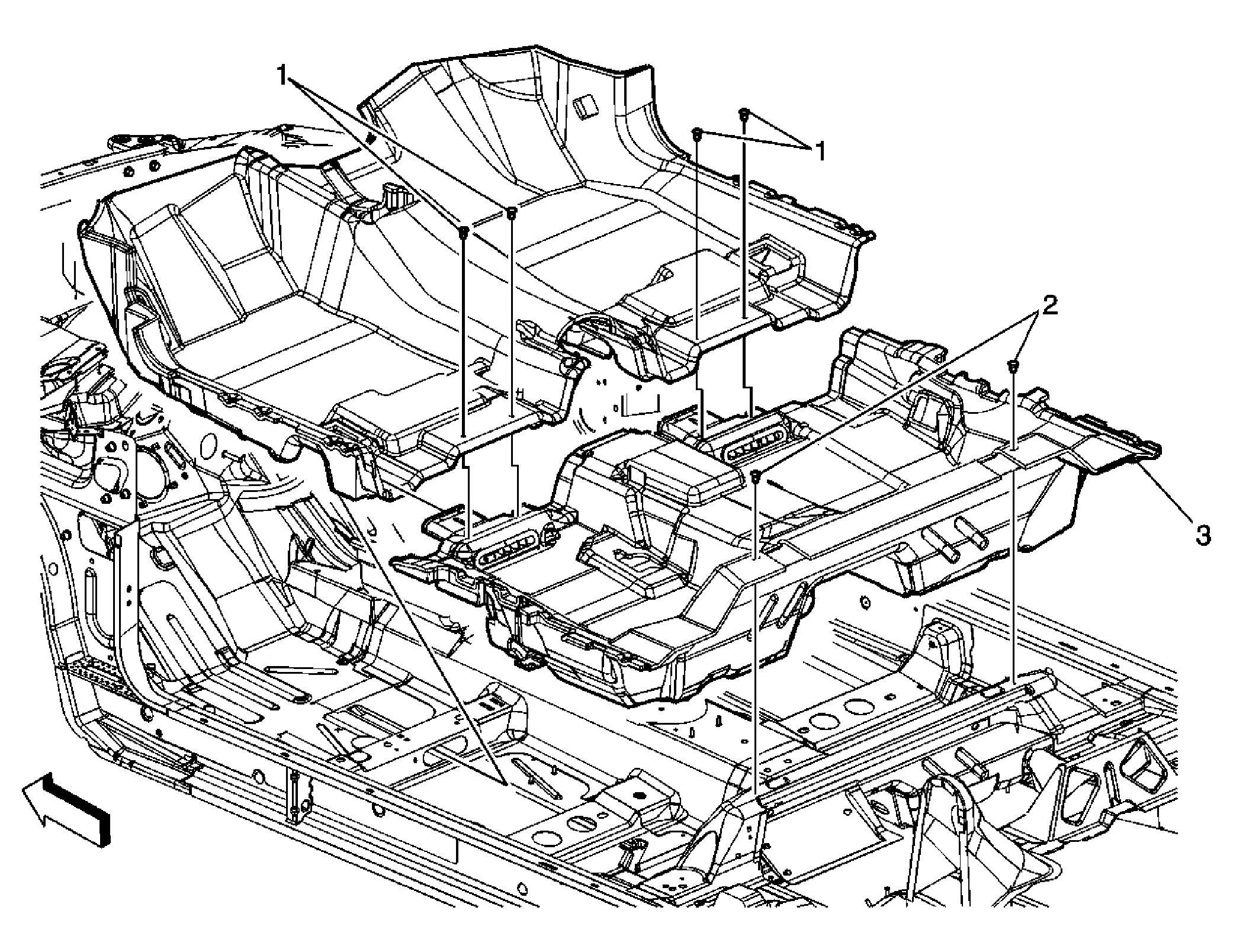

Fig 1: Carpet Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the seats. Refer to Seat Replacement and Rear Seat Cushion Replacement . Remove the floor console. Refer to Console Replacement . Remove the cowl side trim panels. Refer to Front Floor Panel Carpet Replacement or Front Carpet Retainer Replacement . Remove the lower center pillar garnish trim. Refer to Center Pillar Lower Garnish Molding Replacement . Remove the front and rear carpet retainers. Refer to Front Carpet Retainer Replacement and Rear Carpet Retainer Replacement .
1	Front Carpet Retainer (Qty: 4)
2	Rear Carpet Retainer (Qty: 2)
3	Rear Carpet Assembly
