Front Side Door Window Reveal Molding Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

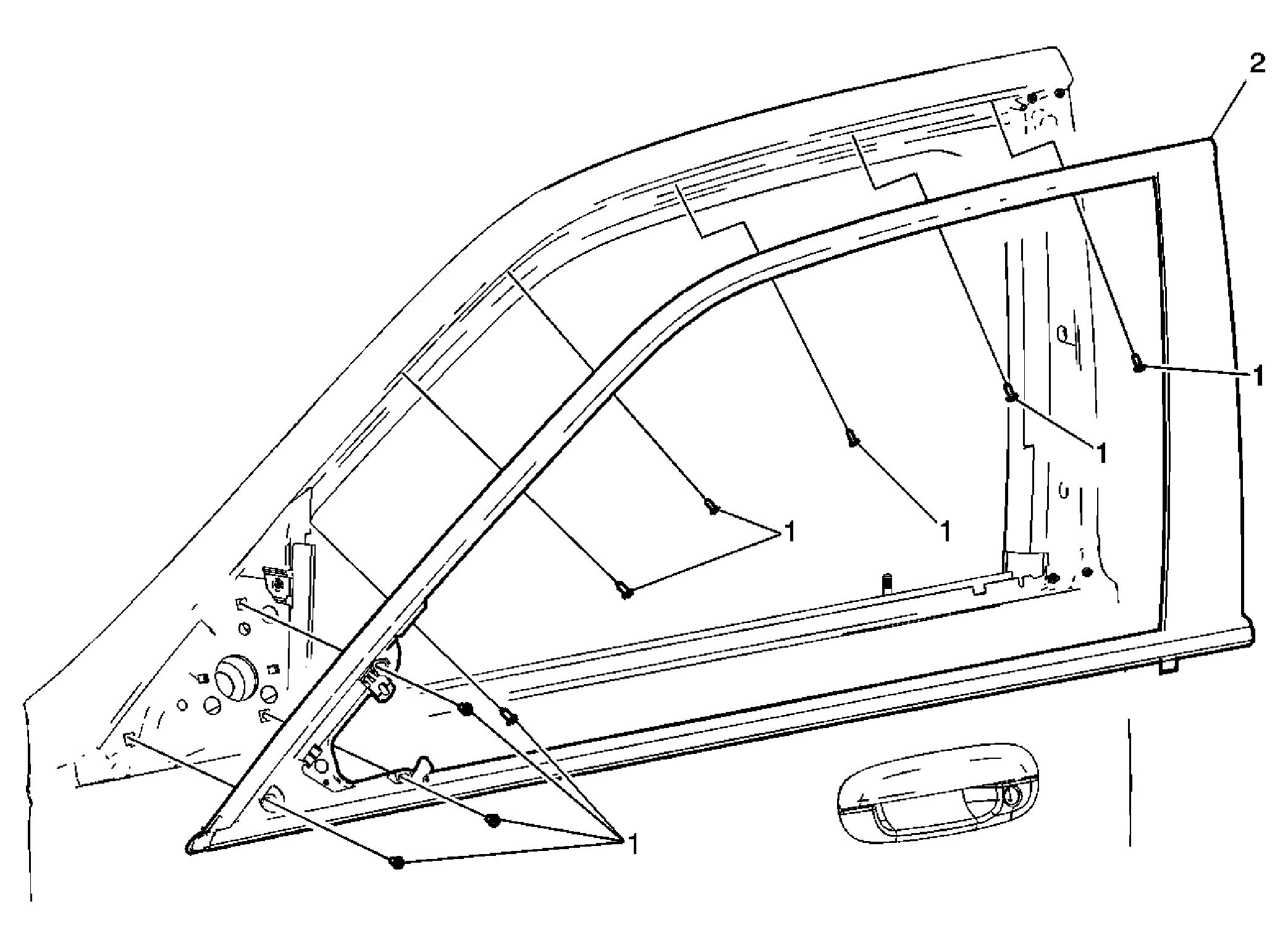

Fig 1: Reveal Molding Replacement - Front Door Window

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Place the front door window in the full down position. Remove the front door interior trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the front door garnish molding. Refer to Front Side Door Opening Frame Garnish Molding Replacement . Remove the front door outside mirror. Refer to Mirror Replacement - Power . Pull the window channel sealing strip from the channel to access the reveal molding screws.
1	Screw, Front Door Frame Reveal Molding (Qty: 9) Tighten: 1.3 N.m (12 lb in)
2	Reveal Molding, Front Door Window Frame Tip: Use a plastic flat-bladed tool to release the push-in retainers from the B-pillar of the door. Pull the reveal molding from the window flange.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Place the front door window in the full down position.
Remove the front door interior trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the front door garnish molding. Refer to Front Side Door Opening Frame Garnish Molding Replacement .
Remove the front door outside mirror. Refer to Mirror Replacement - Power .
Pull the window channel sealing strip from the channel to access the reveal molding screws.

Screw, Front Door Frame Reveal Molding (Qty: 9)

Tighten: 1.3 N.m (12 lb in)

Reveal Molding, Front Door Window Frame
Tip:

Use a plastic flat-bladed tool to release the push-in retainers from the B-pillar of the door.
Pull the reveal molding from the window flange.
