Power Mirror Replacement
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Mirror Replacement - Power

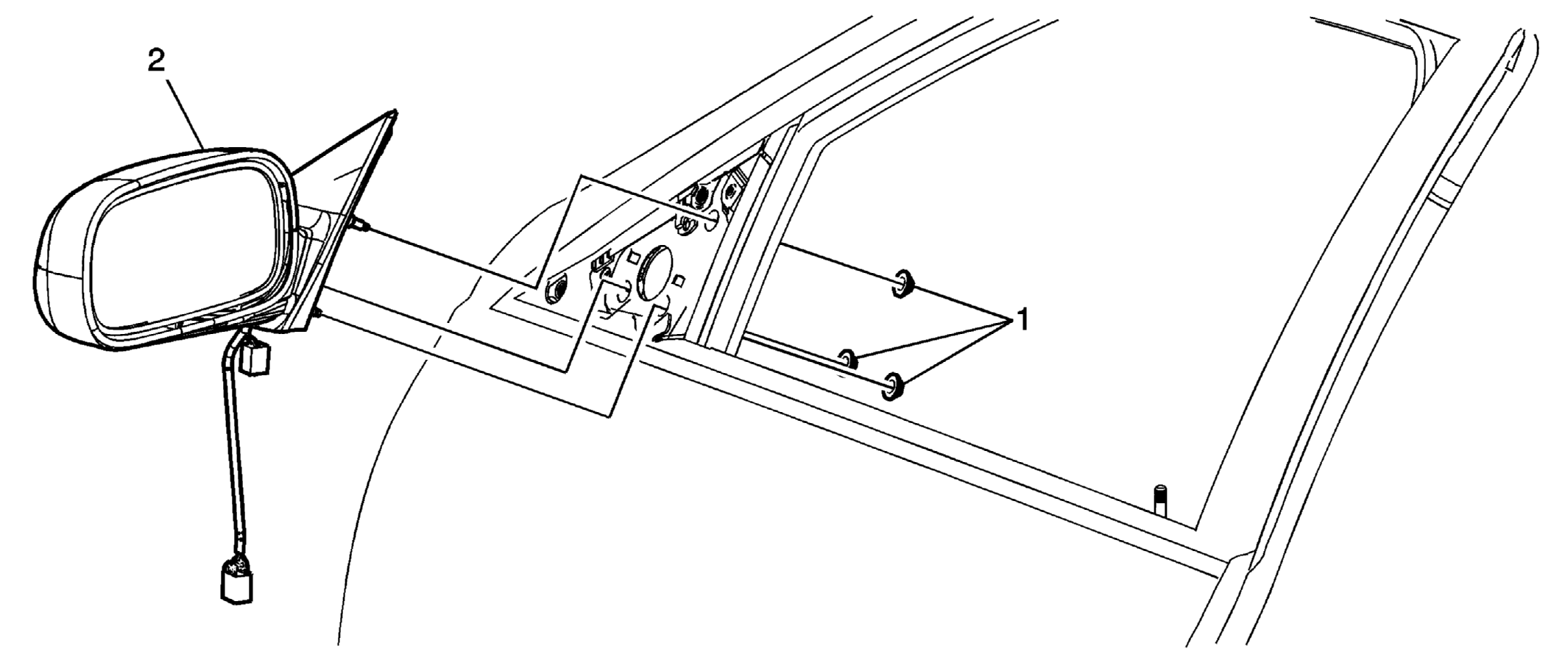

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
.Preliminary Procedures: Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement
. |
|
| 1 | Nut, Outside Rearview Mirror (Qty: 3) Tip: Disconnect the mirror electrical connector. Tighten: 10 N.m (89 lb in) |
| 2 | Mirror Assembly, Outside Rearview |
