Removal and Installation

REMOVAL

1. Remove the instrument lower panel LH. Refer to Removal and Installation .
2. Remove the accelerator pedal and the bracket as an assembly. Refer to Removal and Installation .
3. Remove the snap pin (1) and the clevis pin (2) from the brake pedal assembly.

   Courtesy of NISSAN NORTH AMERICA, INC.

4. Remove the bolt and the nuts from the brake pedal.
   CAUTION:

   Support the brake booster and master cylinder to prevent contact with other components.

5. Disconnect the harness connectors from the stop lamp switch and the brake pedal position switch.
6. Remove the brake pedal assembly.
7. Remove the stop lamp switch, if necessary.
8. Remove the brake pedal position switch, if necessary.

INSPECTION AFTER REMOVAL

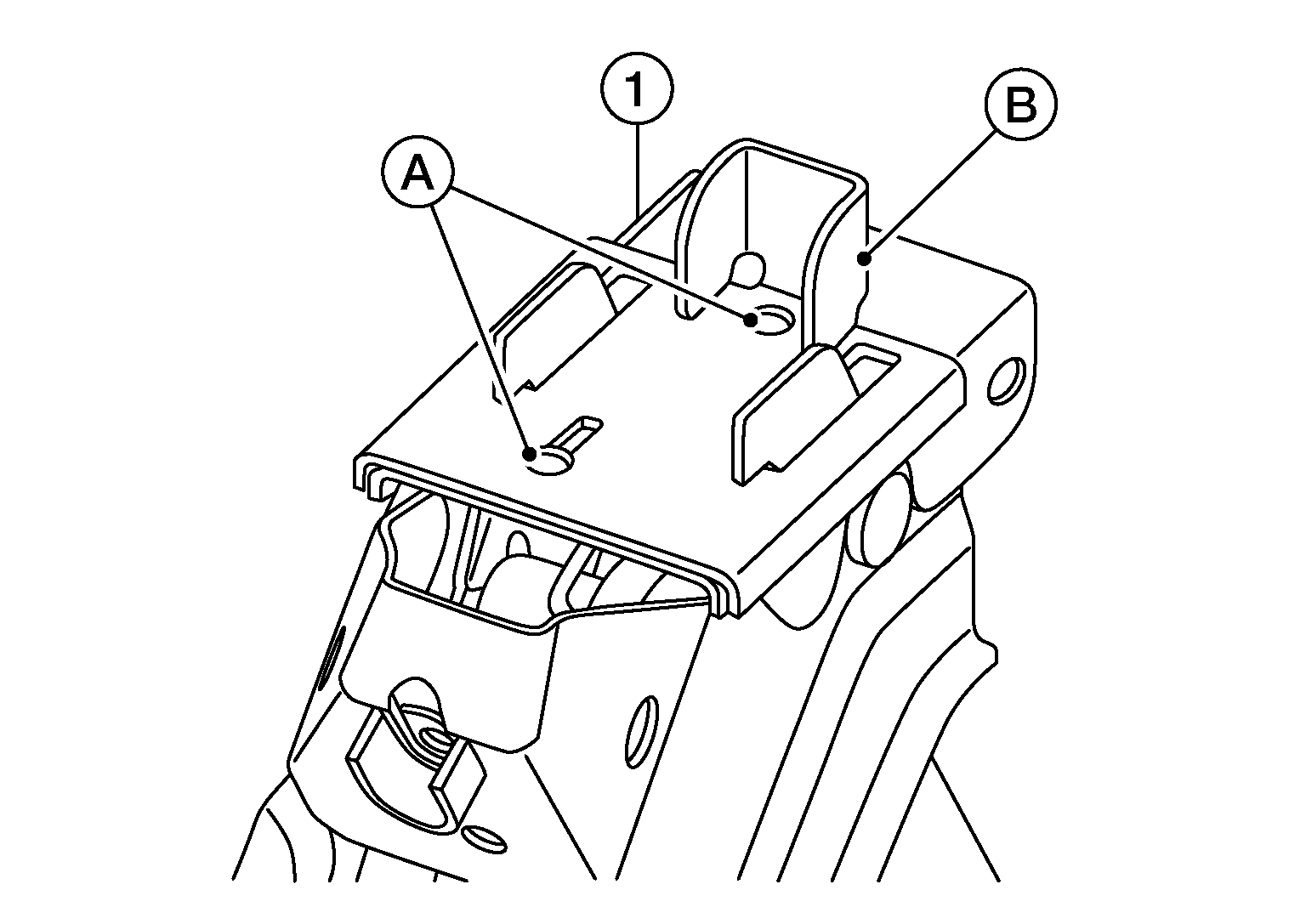

• Check the following items and replace the brake pedal assembly (1), if necessary.

  Courtesy of NISSAN NORTH AMERICA, INC.

  • Check the brake pedal upper rivets (A) for deformation.
  • Check the brake pedal and the slide plate (B) for damage and cracks on the welded parts.

INSTALLATION

Installation is in the reverse order of removal.

• Apply wheel bearing grease to the clevis pin.
• Inspect the brake pedal height after installing the brake pedal to the vehicle. Refer to Inspection .
• Adjust the brake pedal height, if necessary. Refer to Adjustment .
• Perform the Accelerator Pedal Released Position Learning procedure. Refer to Description .
• Perform the Throttle Valve Closed Position Learning procedure. Refer to Description .
