Brake Pedal: Inspection
- Check the brake pedal height with the floor trim removed.

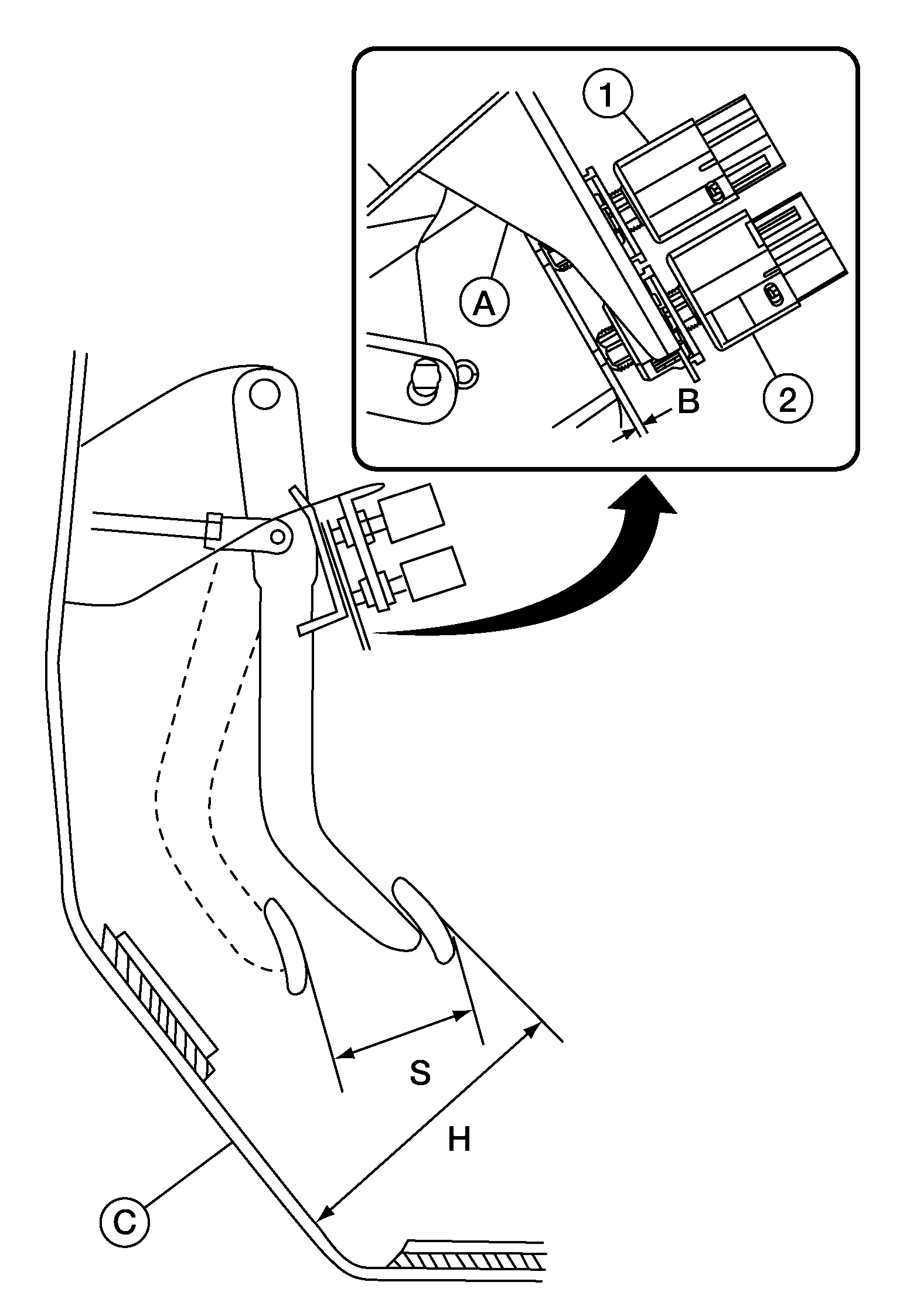

- Check the brake pedal height (H) between the dash lower panel (C) and the brake pedal upper surface.
Brake pedal height (H) from dash lower panel (C) Refer to Brake Pedal . Clearance (B) between brake pedal bracket (A), stop lamp switch (2) and brake pedal position switch (1) contact ends Refer to Brake Pedal . Brake pedal full stroke (S) Refer to Brake Pedal .
