Removal and Installation

REMOVAL

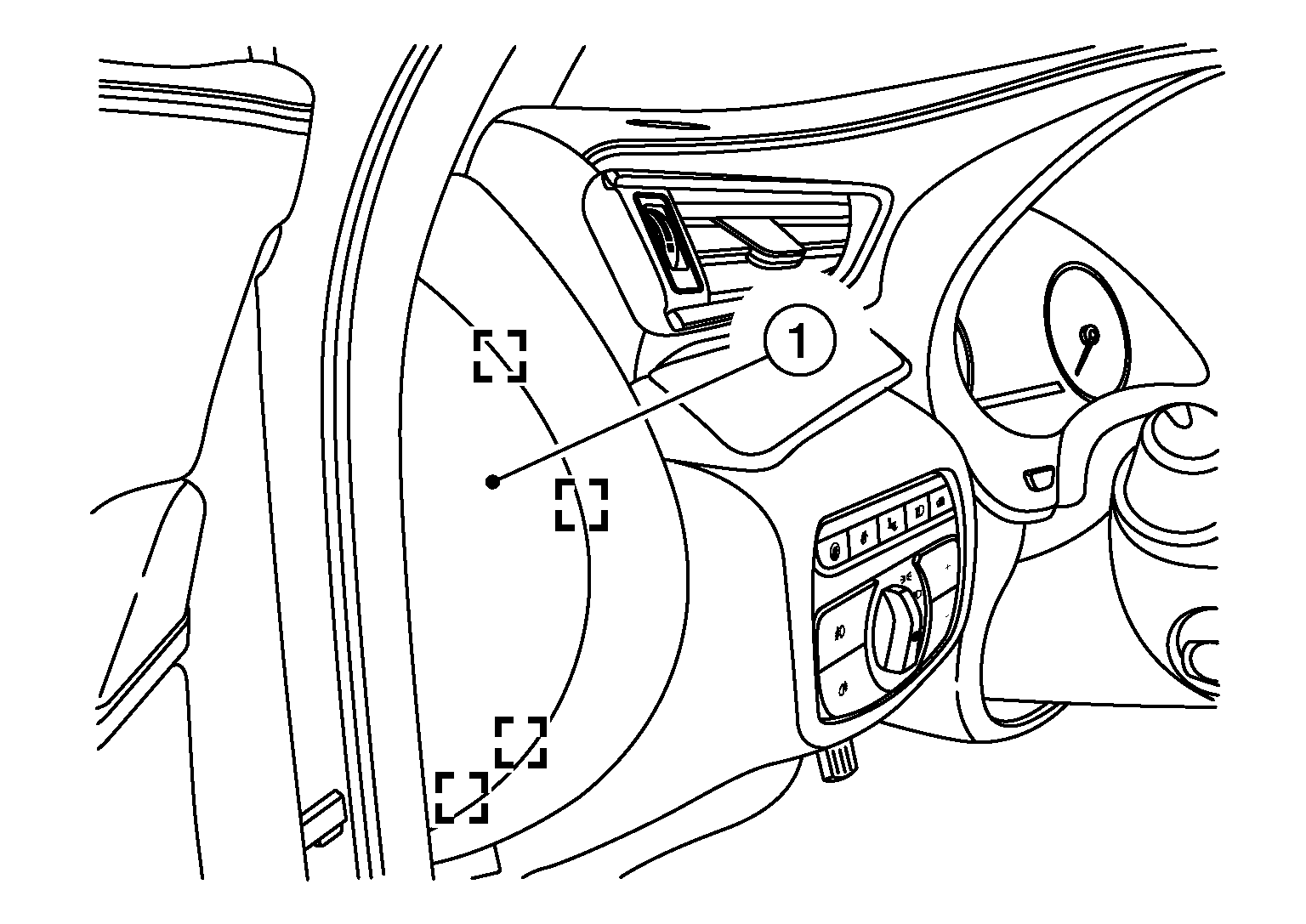

1. Using a suitable tool, release clips and remove instrument side finisher [LH (1)].

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Metal Clip

2. Remove instrument lower panel LH screw (A).

   Courtesy of NISSAN NORTH AMERICA, INC.

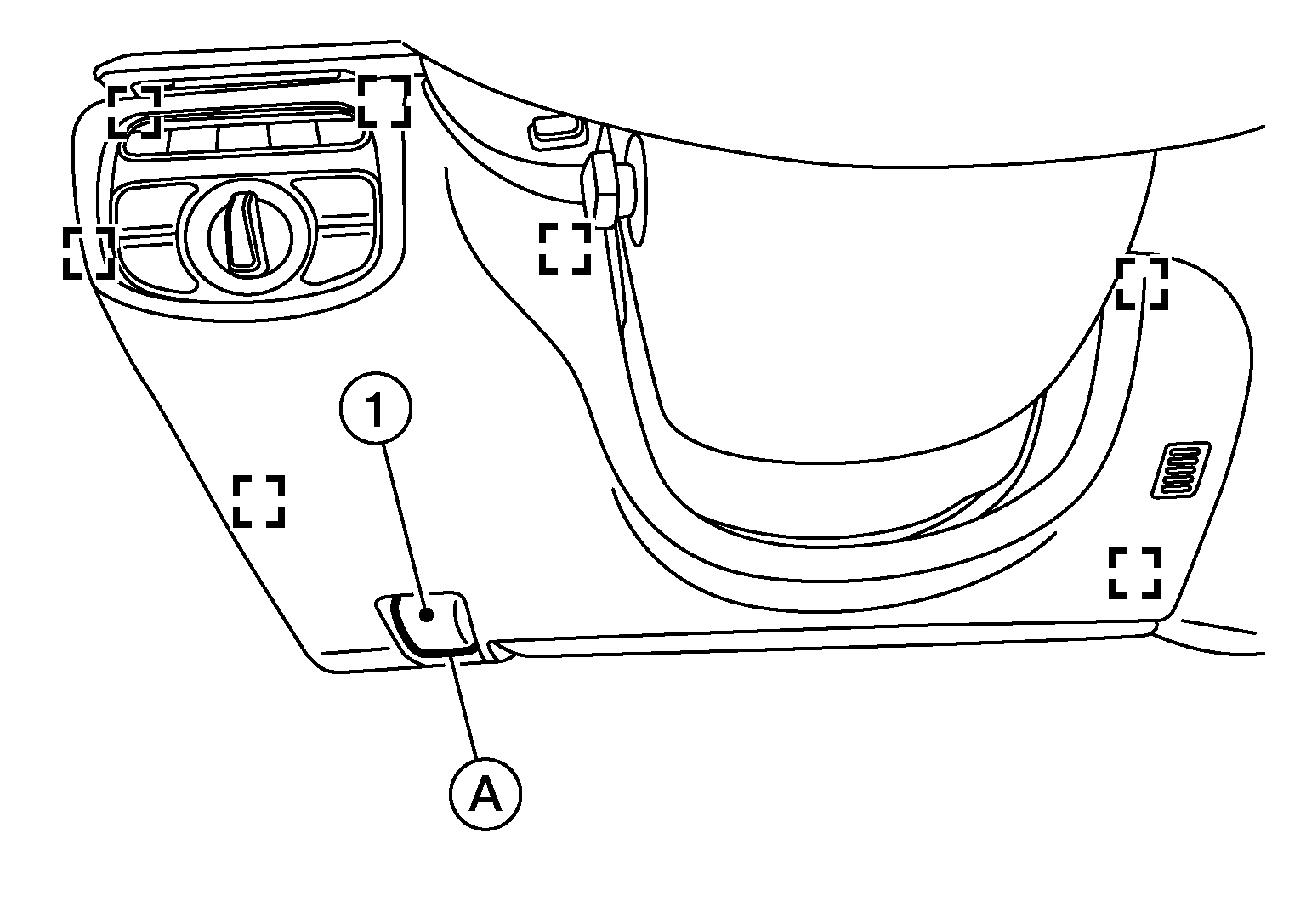

3. Disconnect hood lock release cable from hood lock release handle (1) and remove screw (A).

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Metal clip

4. Using a suitable tool, release clips and remove instrument lower panel LH.
5. Disconnect aspirator hose from in car sensor.
6. Disconnect harness connectors and remove instrument lower panel LH.

INSTALLATION

Installation is in the reverse order of removal.
