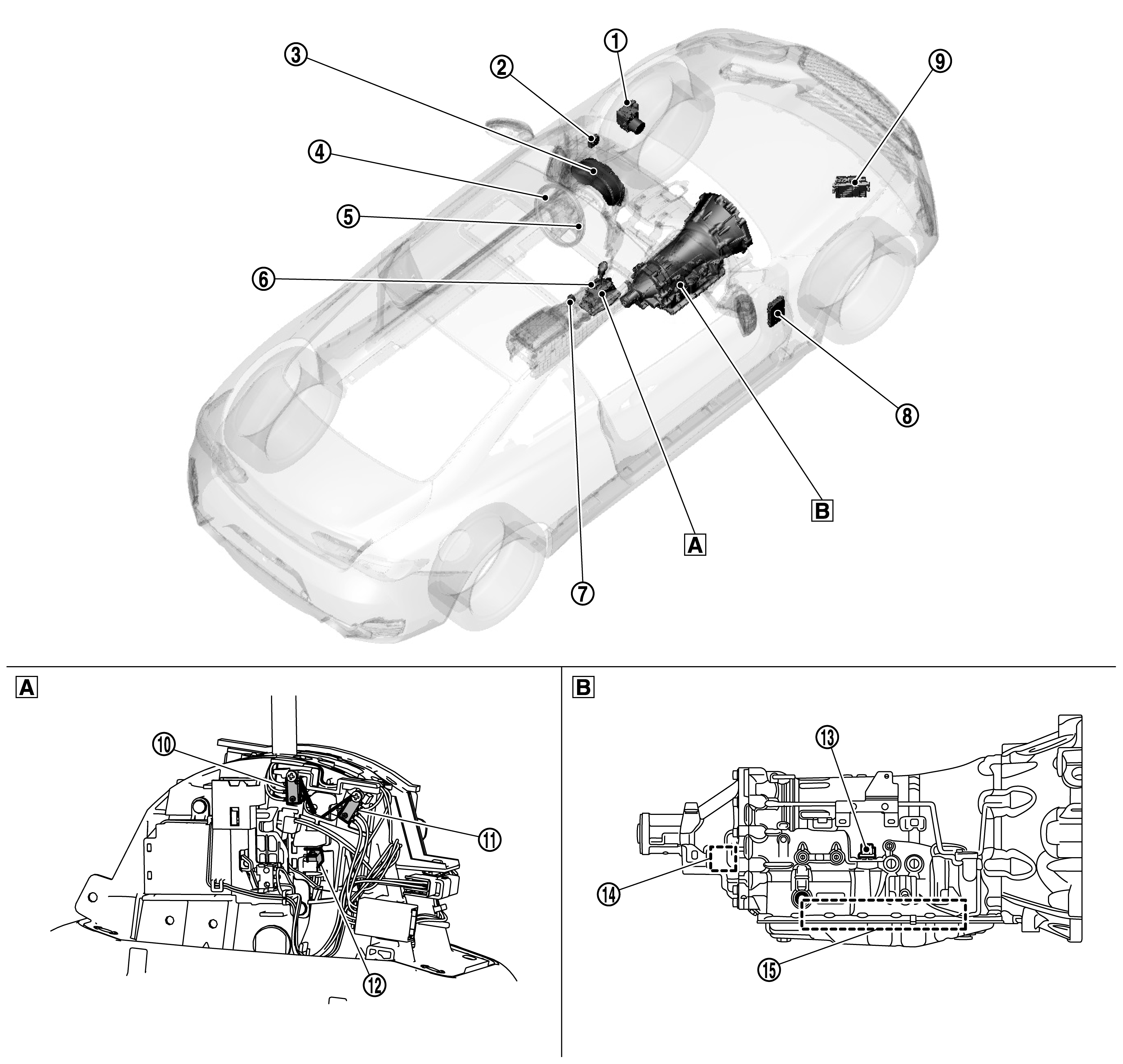

Component Location

A/T shift selector assembly

Transmission assembly

No.

Component

Function

ABS actuator and electric unit (control unit)

Mainly transmits the following signal to TCM via CAN communication.

• ABS operation signal
• TCS gear keep request signal
• A/T shift schedule change demand signal
• Side G sensor signal

For detailed installation location, Refer to Component Location .

Chassis control module

Mainly transmits the following signal to TCM via CAN communication.

• Drive mode signal

For detailed installation location, Refer to Component Location .

Combination meter

Mainly transmits the following signal to TCM via CAN communication.

• Vehicle speed signal
• Manual mode signal
• Non-manual mode signal
• Manual mode upshift signal
• Manual mode downshift signal
• Paddle shifter upshift signal ^*1
• Paddle shifter downshift signal ^*1

Mainly receives the following signals from TCM via CAN communication.

• Shift position signal
• Manual mode shift refusal signal

For detailed installation location, Refer to Component Location .

Paddle shifter (down) ^*1

Refer to Component Description .

Paddle shifter (up) ^*1

Refer to Component Description .

Selector lever position indicator

Refer to Component Description .

Drive mode select switch

Refer to Component Description .

BCM

Mainly transmits the following signal to TCM via CAN communication.

• Stop lamp switch signal

For detailed installation location, Refer to Component Location .

ECM

Mainly transmits the following signal to TCM via CAN communication.

• Engine and A/T integrated control signal
  NOTE: General term for the communication (torque-down permission, torque-down request, etc.) exchanged between the ECM and TCM.
• Engine speed signal
• Engine coolant temperature signal
• Accelerator pedal position signal
• Closed throttle position signal
• Wide open throttle position signal
• ASCD OD cancel request signal

For detailed installation location, Refer to Component Location .

Manual mode switch

Position select switch (up)

Refer to Component Description .

Position select switch (down)

Mode select switch

A/T assembly connector

--

Output speed sensor

Refer to Component Description .

Control valve & TCM

TCM ^*2

Refer to Component Description .

Transmission range switch ^*2

Refer to Component Description .

Input speed sensor 1, 2 ^*2

Refer to Component Description .

A/T fluid temperature sensor ^*2

Refer to Component Description .

Input clutch solenoid valve ^*2

Refer to Component Description .

Direct clutch solenoid valve ^*2

Refer to Component Description .

High and low reverse clutch solenoid valve ^*2

Refer to Component Description .

Front brake solenoid valve ^*2

Refer to Component Description .

Low brake solenoid valve ^*2

Refer to Component Description .

2346 brake solenoid valve ^*2

Refer to Component Description .

Anti-interlock solenoid valve ^*2

Refer to Component Description .

Line pressure solenoid valve ^*2

Refer to Component Description .

Torque converter clutch solenoid valve ^*2

Refer to Component Description .
