Component Description

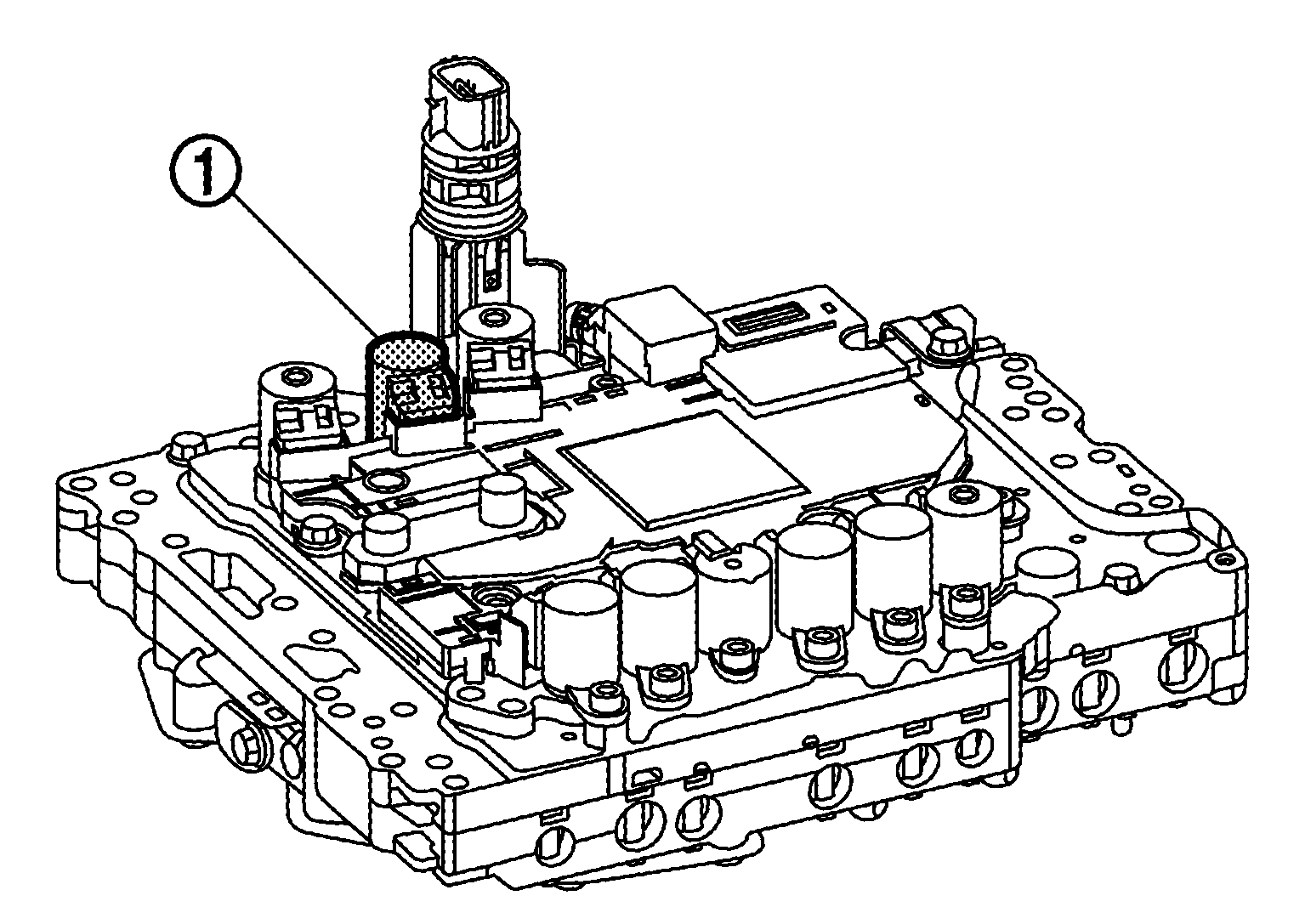

The 2346 brake solenoid valve is installed to control valve assembly.

Courtesy of NISSAN NORTH AMERICA, INC.
The 2346 brake solenoid valve is controlled by the TCM in response to signals transmitted from the transmission range switch, output speed sensor and accelerator pedal position sensor. Gears will then be shifted to the optimum position.
The 2346 brake solenoid valve controls the 2346 brake control valve in response to a signal transmitted from the TCM.
The 2346 brake solenoid valve utilizes a linear solenoid valve [N/L (normal low) type].

Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
- The principle of the linear solenoid valve utilizes the fact that the force pressing on the valve spool installed inside the coil increases nearly in proportion to the current. This allows it to produce a fluid pressure that is proportional to this pressing force.
- The N/L (normal low) type does not produce hydraulic control when the coil is not energized.
