Component Description
- The transmission range switch

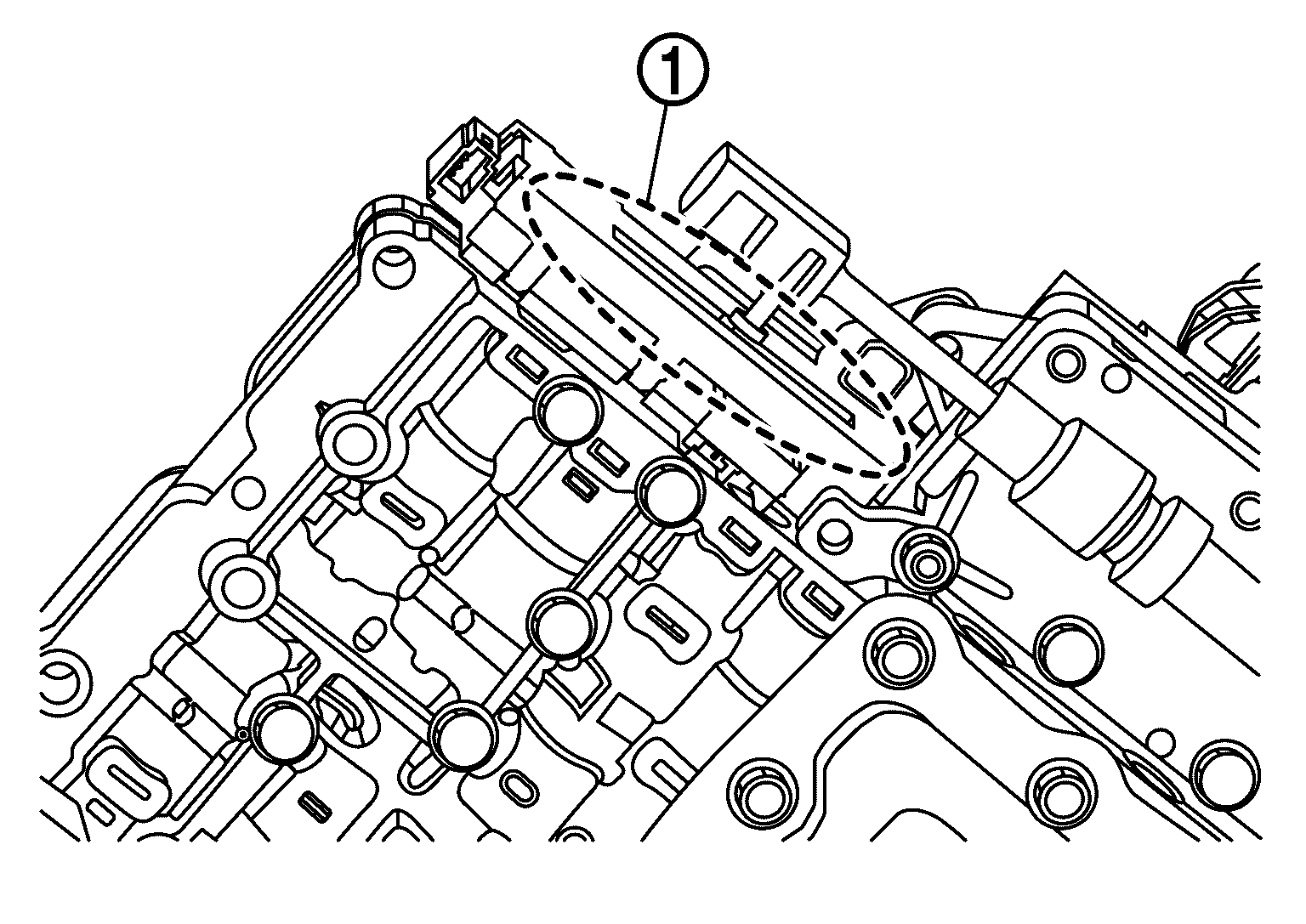

is installed to control valve assembly.
- The transmission range switch incorporates four contact switches. Each contact switch transmits an ON/OFF signal to the TCM.
- The TCM judges a select lever position from a combination of ON/OFF signals transmitted from each contact switch.
Select lever position
Transmission range switch
SW1
SW2
SW3
SW4
P
OFF
OFF
OFF
OFF
R
ON
OFF
OFF
ON
N
ON
ON
OFF
OFF
D and M
ON
ON
ON
ON
