Inspection After Assembly

Inspection of Camshaft Sprocket (INT/EXH) Oil Groove

1. Check engine oil level. Refer to Inspection .
2. Perform the following procedure to prevent the engine from being unintentionally started while checking.
   1. Release the fuel pressure. Refer to Work Procedure .
   2. Disconnect ignition coil and injector harness connectors. Refer to Exploded View .
3. Remove valve timing control solenoid valve. Refer to Exploded View .

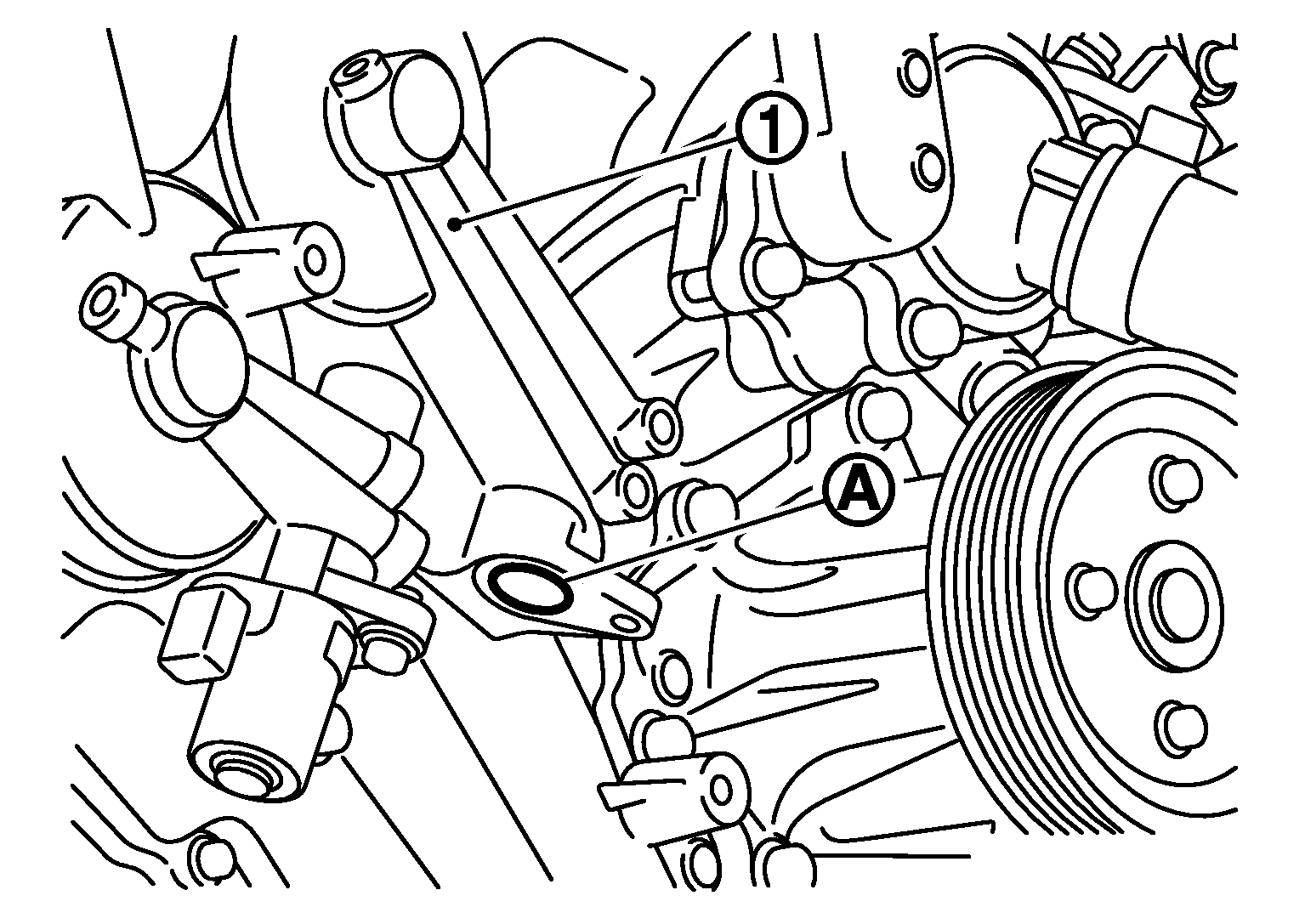

4. Crank engine, and then check that engine oil comes out from valve timing control solenoid valve hole (A). End crank after checking.

   Courtesy of NISSAN NORTH AMERICA, INC.

   1	: Valve timing control cover (bank 2)

   WARNING: Be careful not to touch rotating parts (drive belt, idler pulley, and crankshaft pulley, etc.).
   CAUTION:

   • Prevent splashing by using a shop cloth to prevent the worker from injury from engine oil and to prevent engine oil contamination.
   • Prevent splashing by using a shop cloth to prevent engine oil from being splashed to engine and vehicle. Especially, be careful not to apply engine oil to rubber parts of drive belt, engine mounting insulator, etc. Wipe engine oil out immediately if it is splashed.
5. Perform the following inspection if engine oil does not come out from valve timing control solenoid valve oil hole of the valve timing control cover.
   • Remove oil filter, and then clean it. Refer to Exploded View .
   • Clean oil groove between oil strainer and valve timing control solenoid valve. Refer to Engine Lubrication System and Engine Lubrication System Schematic .
6. Remove components between valve timing control solenoid valve and camshaft sprocket, and then check each oil groove for clogging.
   • Clean oil groove if necessary. Refer to Engine Lubrication System and Engine Lubrication System Schematic .
7. After inspection, install removed parts in the reverse order.

Inspection for Leakage

The following are procedures for checking fluid leakage, lubricant leakage.

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If any are less than the required quantity, fill them to the specified level. Refer to Fluids and Lubricants .
• Follow the procedure below to check for fuel leakage.
  • Turn ignition switch to the "ON" position (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leakage at connection points.
  • Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.
  NOTE: If hydraulic pressure inside chain tensioner drops after removal/installation, slack in guide may generate a pounding noise during and just after the engine start. However, this does not indicate a malfunction. The noise will stop after hydraulic pressure rises.
• Warm up engine thoroughly to check that there is no leakage of fuel, or any oil/fluids including engine oil and engine coolant.
• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill them to the specified level, if necessary.
  Summary of the inspection items:



  Items		Before starting engine	Engine running	After engine stopped
  Engine coolant		Level	Leakage	Level
  Engine oil		Level	Leakage	Level
  Transmission / transaxle fluid	AT & CVT Models	Leakage	Level / Leakage	Leakage
  	MT Models	Level / Leakage	Leakage	Level / Leakage
  Other oils and fluids*		Level	Leakage	Level
  Fuel		Leakage	Leakage	Leakage
  Exhaust gases		--	Leakage	--

  *: Power steering fluid, brake fluid, etc.
