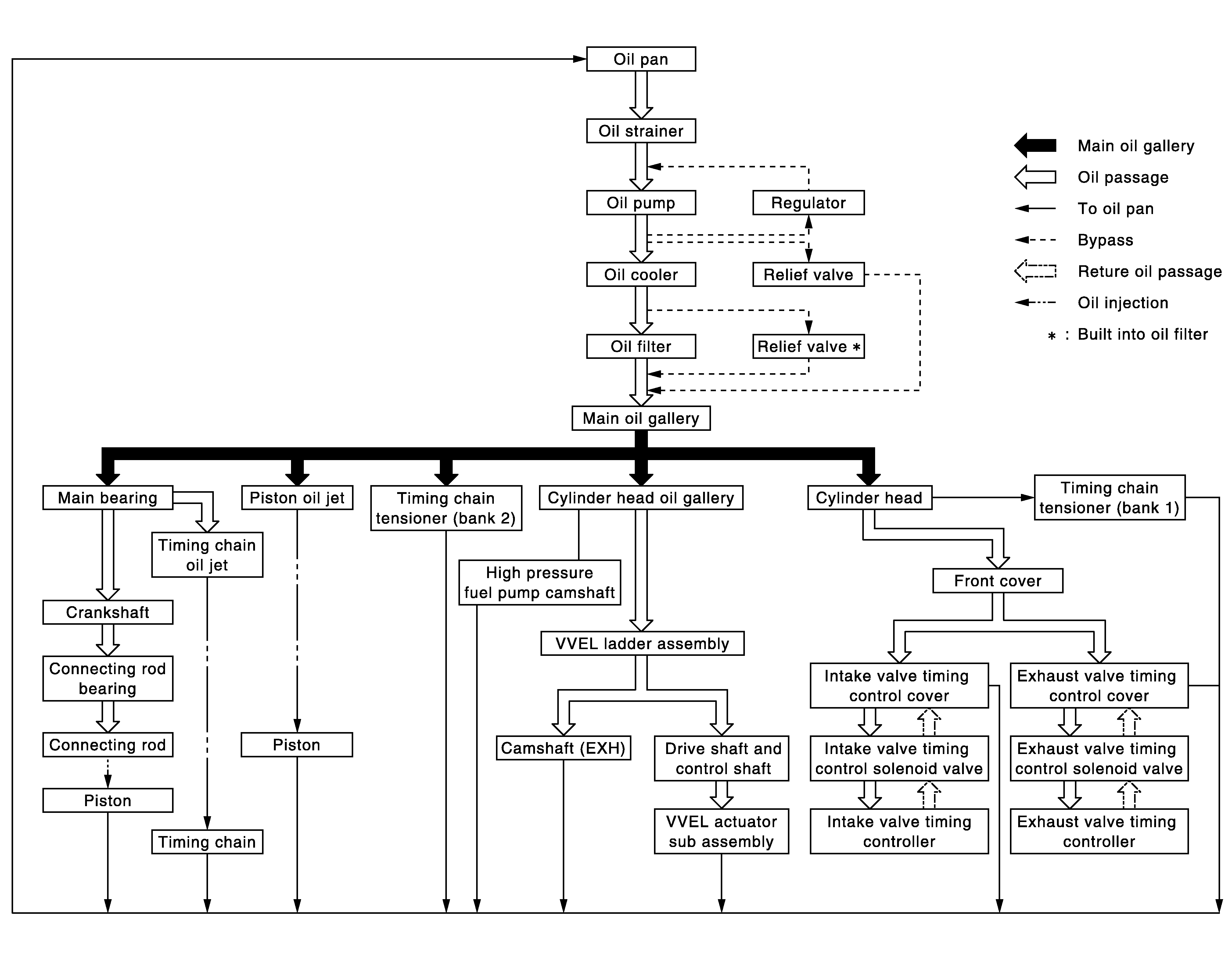

Home >> Infiniti >> 2018 >> Q70 5.6 Luxe, RWD >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Engine Lubrication System (5.6L) (Except Hybrid) >> System Description >> Description >> Engine Lubrication System Schematic
