Component Parts Location

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

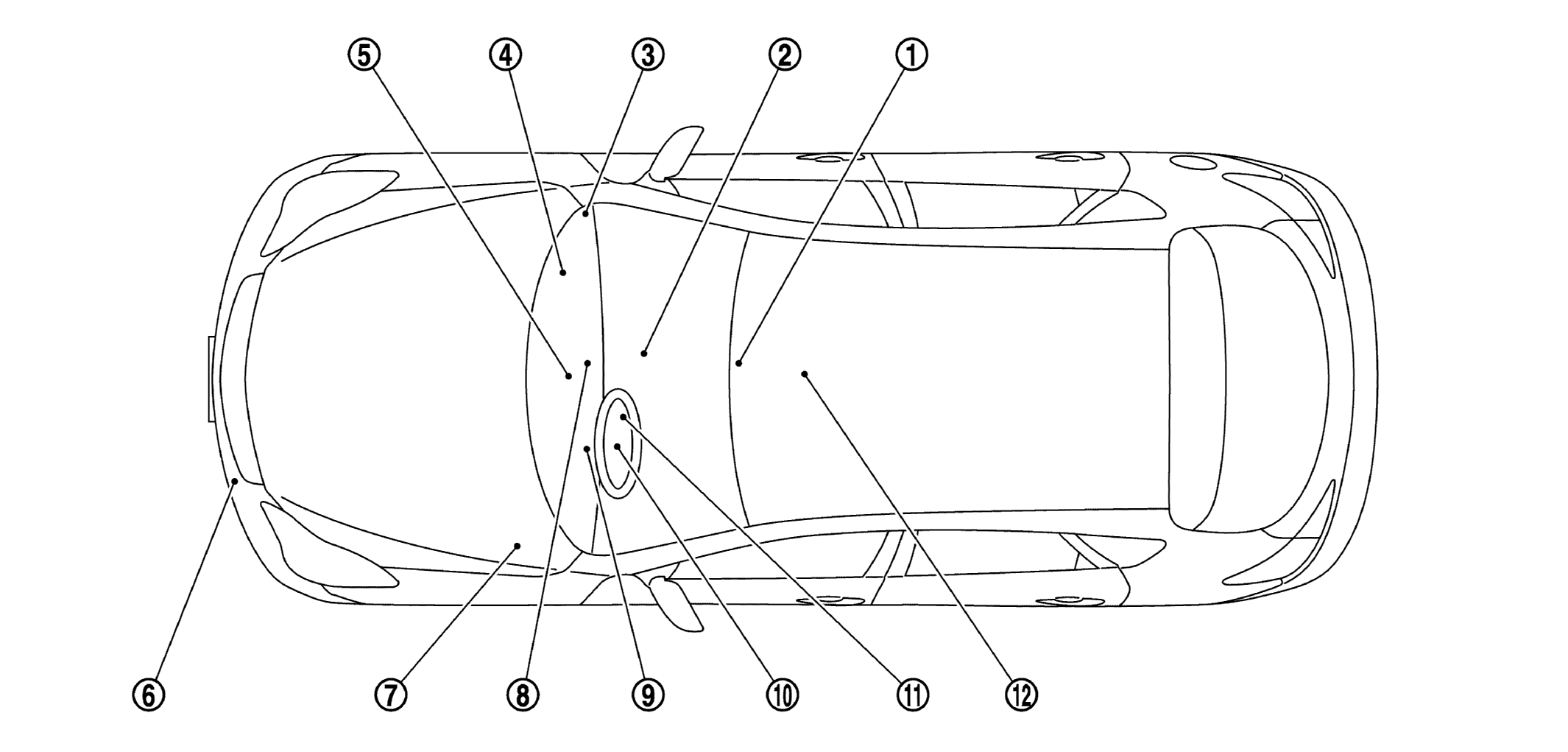

1.	Lane camera unit Refer to COMPONENT PARTS LOCATION .	2.	TCM Refer to COMPONENT PARTS LOCATION .	3.	BCM Refer to COMPONENT PARTS LOCATION .
4.	ECM Refer to COMPONENT PARTS LOCATION .	5.	AV control unit Refer to COMPONENT PARTS LOCATION .	6.	ICC sensor integrated unit Refer to COMPONENT PARTS LOCATION .
7.	ABS actuator and electric unit (control unit) Refer to COMPONENT PARTS LOCATION .	8.	Lane departure warning buzzer Refer to COMPONENT PARTS LOCATION .	9.	LDP ON indicator lamp (Green) Lane departure warning lamp (Yellow) (On the combination meter)
10.	Steering angle sensor Refer to COMPONENT PARTS LOCATION .	11.	ICC steering switch (Dynamic driver assistance switch)	12.	Yaw rate/side G sensor Refer to COMPONENT PARTS LOCATION .
