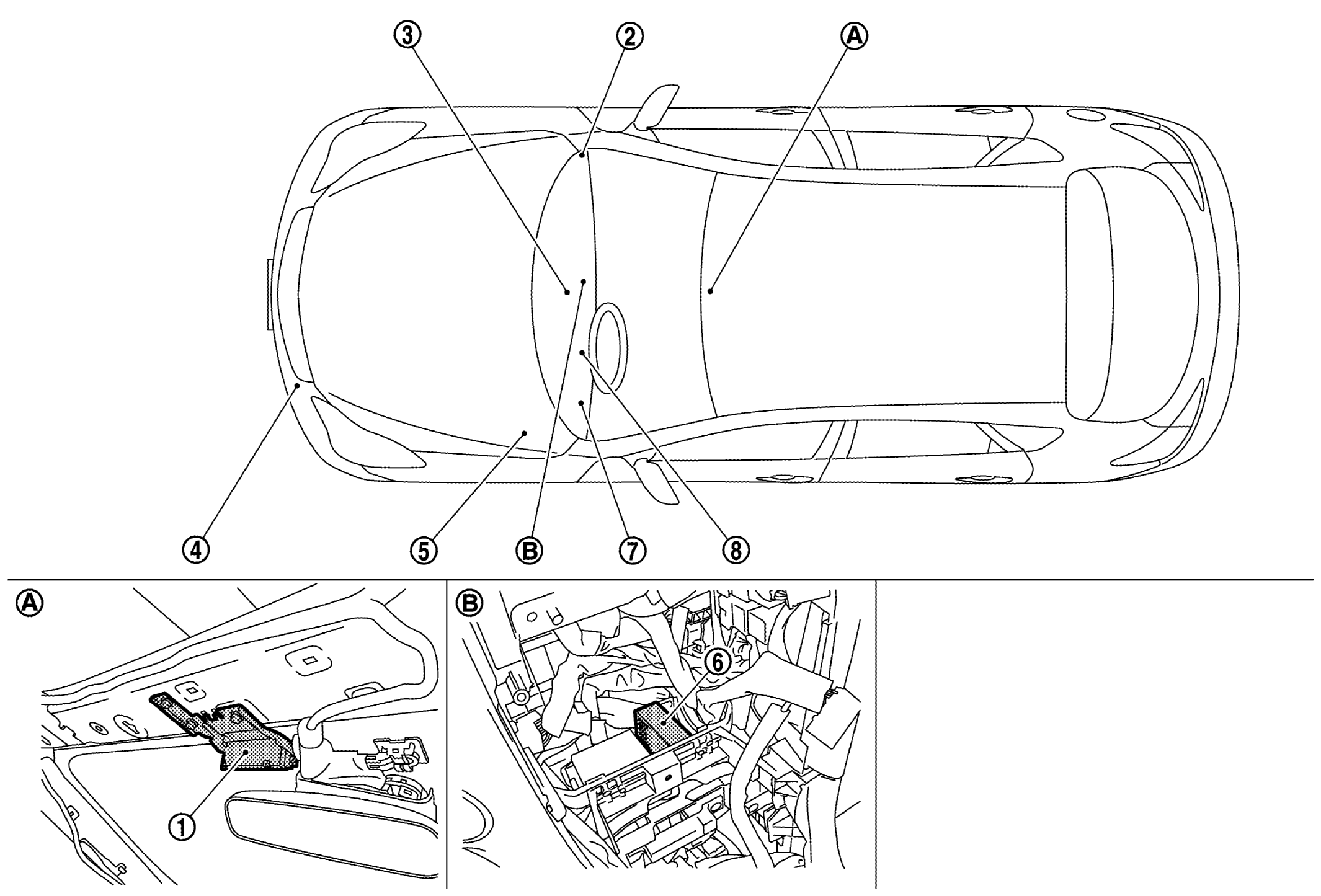

Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Lane camera unit | 2. | BCM Refer to COMPONENT PARTS LOCATION . |
3. | Unified meter and A/C amp. Refer to COMPONENT PARTS LOCATION . |
| 4. | ICC sensor integrated unit Refer to COMPONENT PARTS LOCATION . |
5. | ABS actuator and electric unit (control unit) Refer to COMPONENT PARTS LOCATION . |
6. | Lane departure warning buzzer |
| 7. | Warning systems switch, warning systems ON indicator | 8. | Lane departure warning lamp (Yellow) (On the combination meter) |
||
| A. | Front of the map lamp | B. | Behind the cluster lid C |
