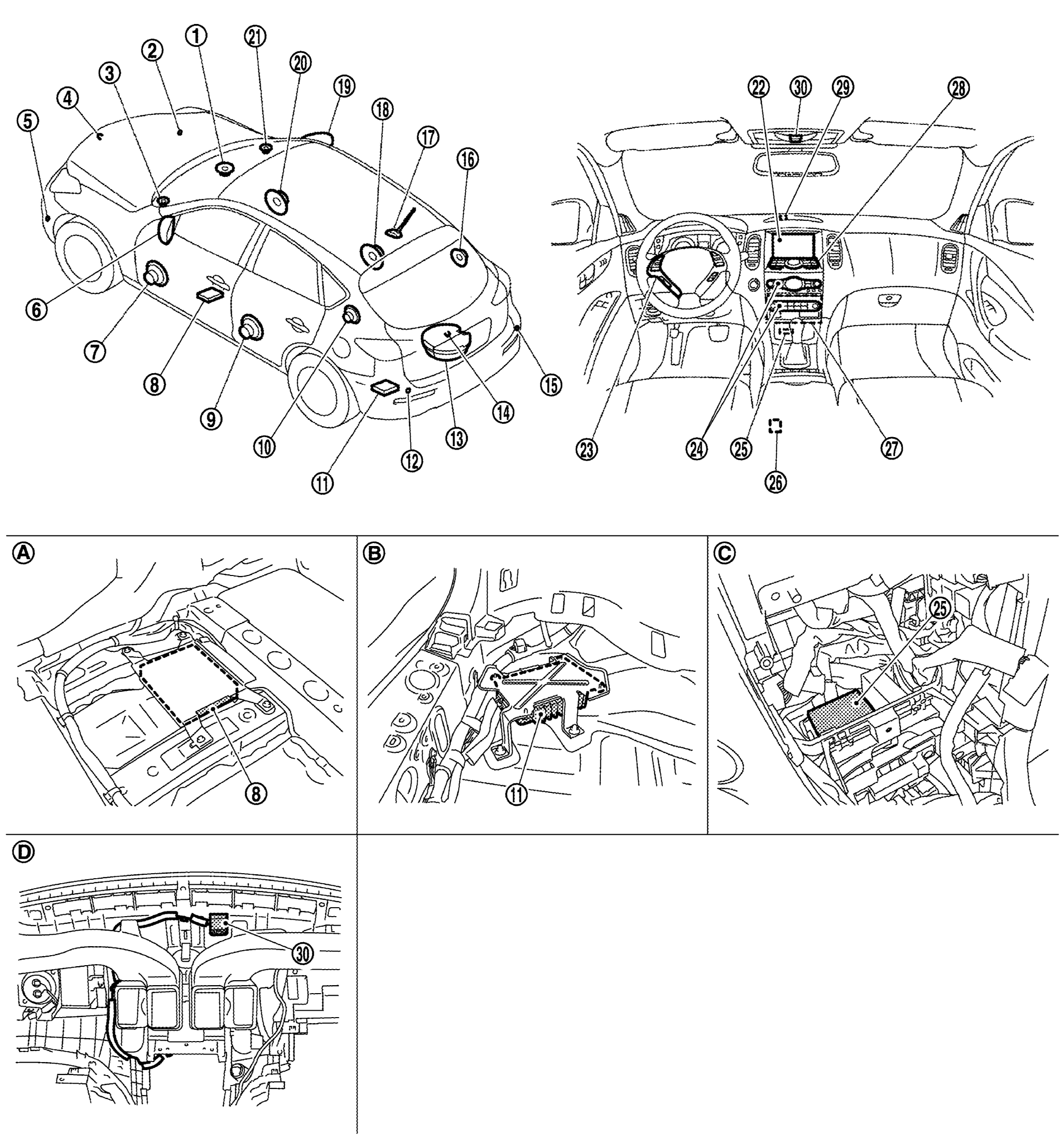

Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Center speaker | 2. | Corner sensor (FR) | 3. | Front squawker LH |
| 4. | Front camera | 5. | Corner sensor (FL) | 6. | Side camera LH |
| 7. | Front door speaker LH | 8. | Around view monitor control unit | 9. | Rear door speaker LH |
| 10. | Rear squawker LH | 11. | BOSE amp. | 12. | Corner sensor (RL) |
| 13. | Woofer | 14. | Rear camera | 15. | Corner sensor (RR) |
| 16. | Rear squawker RH | 17. | Antenna base (antenna amp. and satellite antenna) | 18. | Rear door speaker RH |
| 19. | Side camera RH | 20. | Front door speaker RH | 21. | Front squawker RH |
| 22. | Display unit | 23. | Steering switch | 24. | Preset switch |
| 25. | Sonar control unit (with around view monitor) | 26. | USB connector | 27. | AV control unit |
| 28. | Multifunction switch | 29. | GPS antenna | 30. | Microphone |
| A. | Under front seat (LH side) | B. | Luggage floor (LH side) | C. | Console pocket assembly removed condition |
| D. | Instrument panel rear side |
