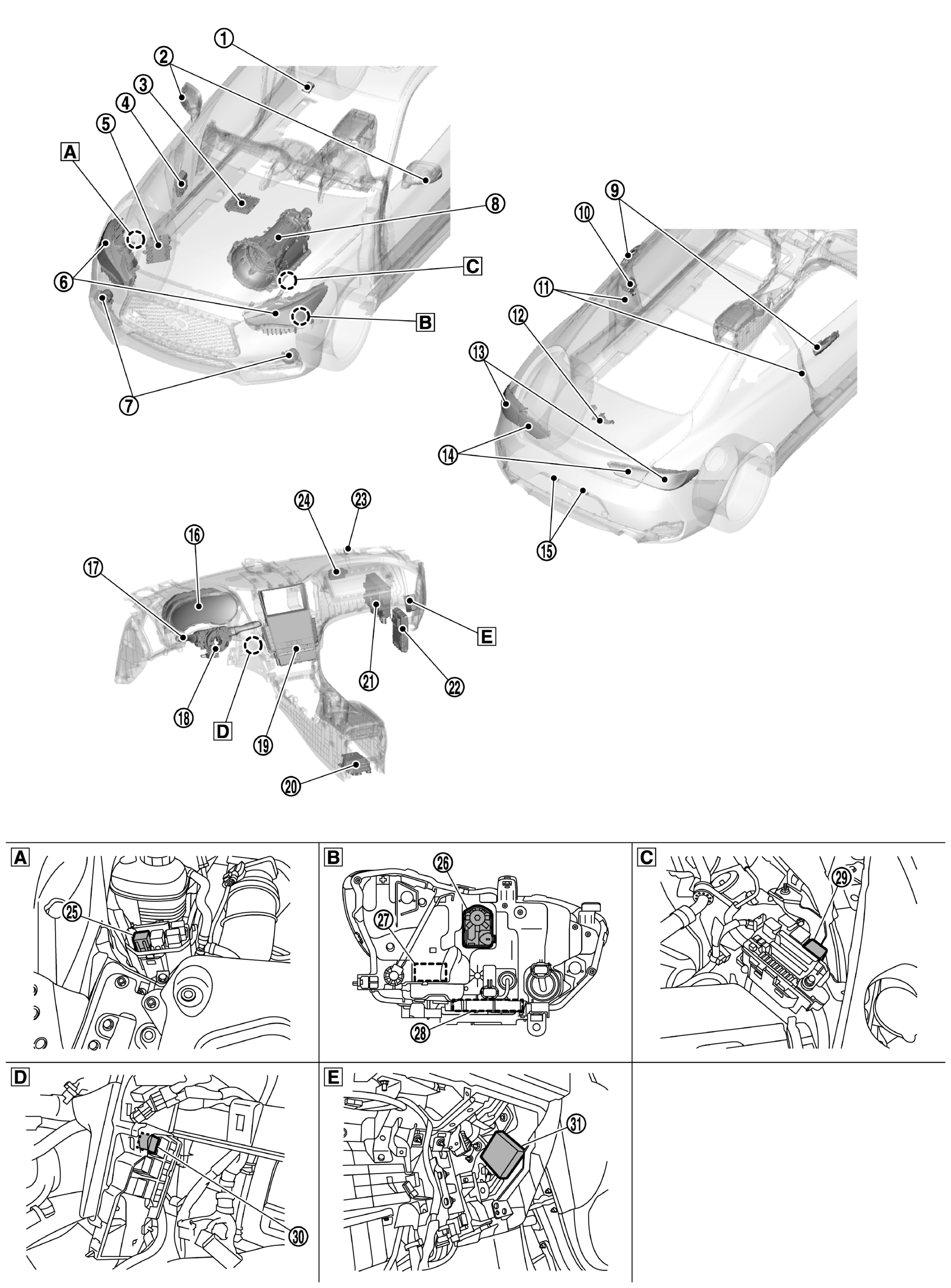

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

	Engine Room (Right Side)		Front Combination Lamp (Back)		Engine Room (Left Side)
	View with AV Control Unit or NAVI Control Unit removed		View with glove box removed

Component		Function
Lane Camera Unit * ¹		Judges the vehicle status from each signal in order to control the high beam assist control. Refer to COMPONENT LOCATION for detailed installation location.
Door Mirror	Side Turn Signal Lamp	Refer to EXTERIOR LAMP APPEARANCE and BULB SPECIFICATIONS .
ECM * ²		Controls the Back-Up Lamp Relay and supplies voltage to the Back-Up Lamp. ECM transmits engine status signal and Stop/Start status signal to BCM via CAN Communication. ECM transmits engine speed signal to AFS Control Unit via CAN Communication. * ⁴ Refer to COMPONENT LOCATION for detailed installation location.
IPDM E/R		Controls the integrated relay, FET and Daytime Running Light relay, and supplies voltage to the load according to the request from BCM via CAN Communication. IPDM E/R transmits low beam status signal to AFS Control Unit via CAN Communication. * ⁴ Refer to COMPONENT LOCATION for detailed installation location.
ECM * ³		ECM transmits engine status signal to BCM via CAN Communication. ECM transmits engine speed signal to AFS Control Unit via CAN Communication. * ⁴ Refer to COMPONENT LOCATION for detailed installation location.
Front Combination Lamp	Headlamp (Low) (LED Headlamp)	Refer to EXTERIOR LAMP APPEARANCE , BULB SPECIFICATIONS and LED HEADLAMP .
	Headlamp (High) (LED Headlamp)
	Parking Lamp (Lower Side)/Daytime Running Light (Lower Side)	Refer to EXTERIOR LAMP APPEARANCE and BULB SPECIFICATIONS .
	Parking Lamp (Upper Side)/Daytime Running Light (Upper Side)
	Front Side Marker Lamp
	Front Turn Signal Lamp
Front Fog Lamp		Refer to EXTERIOR LAMP APPEARANCE and BULB SPECIFICATIONS .
Transmission Assembly	Transmission Range Switch	Refer to TRANSMISSION RANGE SWITCH .
Transmission Assembly	TCM	Controls the Back-Up Lamp Relay and supplies voltage to the Back-Up Lamp. * ³ TCM transmits shift position signal to AFS Control Unit via drivetrain CAN Communication * ² and CAN Communication. * ⁴ Refer to COMPONENT LOCATION for detailed installation location.
Outside Handle Assembly	Request Switch	Refer to DOOR REQUEST SWITCH .
Outside Handle Assembly	One Touch Unlock Sensor	Refer to ONE TOUCH UNLOCK SENSOR ASSEMBLY .
Door Lock Assembly	Unlock Sensor	Refer to DOOR LOCK ASSEMBLY .
Door Switch		Refer to DOOR SWITCH .
Height Sensor * ⁴		Refer to HEIGHT SENSOR .
Rear Combination Lamp (Body Side)	Tail Lamp	Refer to EXTERIOR LAMP APPEARANCE and BULB SPECIFICATIONS .
	Rear Side Marker Lamp
	Rear Turn Signal Lamp
Rear Combination Lamp (trunk lid side)	Tail Lamp	Refer to EXTERIOR LAMP APPEARANCE and BULB SPECIFICATIONS .
Rear Combination Lamp (trunk lid side)	Back-Up Lamp	Refer to EXTERIOR LAMP APPEARANCE and BULB SPECIFICATIONS .
License Plate Lamp		Refer to EXTERIOR LAMP APPEARANCE and BULB SPECIFICATIONS .
Combination Meter		Turns the Indicator Lamp and Warning (information display/buzzer) ON according to the request from BCM via CAN Communication. Blinks the Turn Signal Indicator Lamp and outputs the turn signal operating sound with integrated buzzer according to the request from BCM via CAN Communication. Turns the AFS warning ON according to the request from AFS Control Unit via CAN Communication. * ⁴ Combination Meter transmits vehicle speed signal to BCM, Lane Camera Unit * ¹ and AFS Control Unit * ⁴ via CAN Communication. Combination Meter transmits Parking Brake Switch signal to BCM via CAN Communication.
Combination Switch	Lighting & Turn Signal Switch	Refer to SYSTEM DESCRIPTION .
Steering Angle Sensor * ⁵		Steering Angle Sensor transmits steering angle signal to AFS Control Unit via CAN Communication. Refer to COMPONENT LOCATION for detailed installation location.
Integral Switch	Hazard Switch	Refer to HAZARD SWITCH .
Air Bag Diagnosis Sensor Unit		When the air bag operates, a request is transmitted to BCM to blinks the hazard warning lamp. Refer to COMPONENT LOCATION for detailed installation location.
Steering Force Control Module * ⁶		Steering force control module transmits steering pinion angle signal to AFS Control Unit via CAN Communication. Refer to COMPONENT LOCATION for detailed installation location.
BCM		Detects each Switch condition by the Combination Switch reading function. Exterior lamp ON/OFF is judged from each signal, and then a request is transmitted to IPDM E/R (CAN Communication) to turn each relay and FET ON/OFF. It also transmits a request to the Combination Meter (CAN Communication) to turn indicator lamp and warning (information display / buzzer) ON/OFF. Blinks the turn signal lamp and hazard warning lamp according to the each Switch condition. Requests the turn signal indicator lamp blink to the Combination Meter via CAN Communication. Requests the turn signal operating sound ON to the Combination Meter via CAN Communication. Refer to COMPONENT LOCATION for detailed installation location.
Optical Sensor		Refer to OPTICAL SENSOR .
Remote Keyless Entry Receiver		Refer to REMOTE KEYLESS ENTRY RECEIVER .
Daytime Running Light Relay * ²		Supplies the voltage to Daytime Running Light with the controlled by IPDM E/R.
Front Combination Lamp	Headlamp Aiming Motor * ⁴	Refer to HEADLAMP AIMING MOTOR .
	Swivel Actuator * ⁴	Refer to SWIVEL ACTUATOR .
	LED Headlamp Control Module	Refer to LED HEADLAMP CONTROL MODULE .
Daytime Running Light Relay * ³		Supplies the voltage to Daytime Running Light with the controlled by IPDM E/R.
Back-Up Lamp Relay		Supplies the voltage to Back-Up Lamp with the controlled by TCM * ³ or ECM * ² .
AFS Control Unit * ⁴		Refer to AFS CONTROL UNIT .
